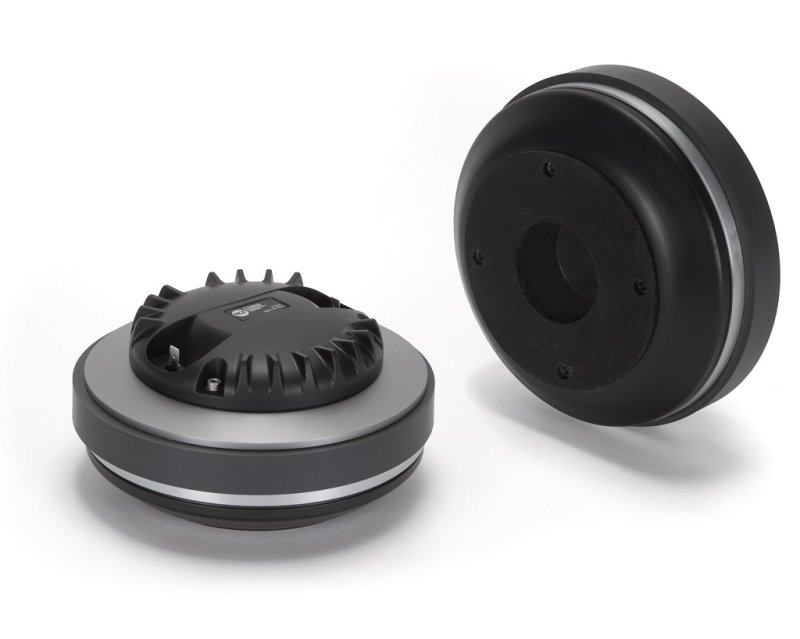

CD850-2,0 er en high-perfomance 3" diaphragm keramisk compression-driver med en 2" exit-throat. Diaphragm'en er præcisionsformet af ren titanium. Voice-coil'et er designet ved brug af Kapton-former ved høje temperature.
Exit Throat Diameter: 50 mm Rated Impedance: 8 Ω Power handling capacity continuous program1: 220 W AES Power handling capacity AES2: 110 W AES Sensitivity: 109 dB Frequency Range: 500 Hz ÷ 20000 Hz Diaphragm Material: Pure titanium Suspension Material: Polyester Suspension Design: Flat Minimum Impedance: (at 3.5kHz) 8.5 Ω Voice Coil Diameter: 74.4 mm Voice Coil Material: Edgewound aluminium Voice Coil Former Design: Straight kapton Number of layers: 1 - outside BL Factor: 12.3 T · m Flux Density: 1.9 T Phase Plug Design: 3 slots Phase Plug Material: Composite Magnetics: Ceramic Voice Coil Demodulation: Copper ring Overall diameter: 180 mm Overall height: 88 mm Mounting 4 × 5 mm holes at 90°: 101.6 mm Net weight: 5.5 kg
