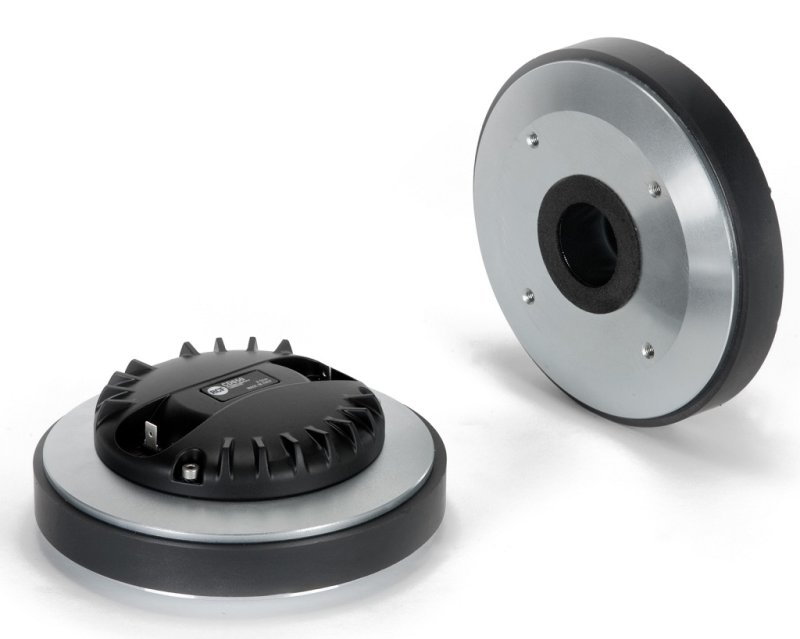

RCF Diskant enhed CD650 90W 2,5" driver

RCF CD650 Ceramic 2,5" compression driver

CD650 er en high-perfomance 2,5" diaphragm keramisk compression-driver med en 1.4" exit-throat. Diaphragm'en er præcisionsformet af ren titanium. Voice-coil'et er designet ved brug af Kapton-former ved høje temperature.

Exit Throat Diameter: 35.5 mm
Rated Impedance: 8 Ohm
Power handling capacity continuous program1: 180 W AES
Power handling capacity AES2: 90 W AES
Sensitivity: 109 dB
Frequency Range: 700 Hz ÷ 20000 Hz
Diaphragm Material: Pure titanium
Suspension Material: Polyester
Suspension Design: Flat
Minimum Impedance: (at 2.5kHz) 7.5 Ohm
Voice Coil Diameter: 63.7 mm
Voice Coil Material: Edgewound aluminium
Voice Coil Former Design: Straight kapton
Number of layers: 1 - outside
BL Factor: 9.8 T · m
Flux Density: 1.9 T
Phase Plug Design: 3 slots
Phase Plug Material: Aluminium
Magnetics: Ceramic
Voice Coil Demodulation: Copper ring
Overall diameter: 165 mm
Overall height: 56 mm
Mounting 4 × 5 mm holes at 90°: 101.6 mm
Net weight: 4.3 kg

Størrelse

Dybde:	16,5
Højde:	5,6
