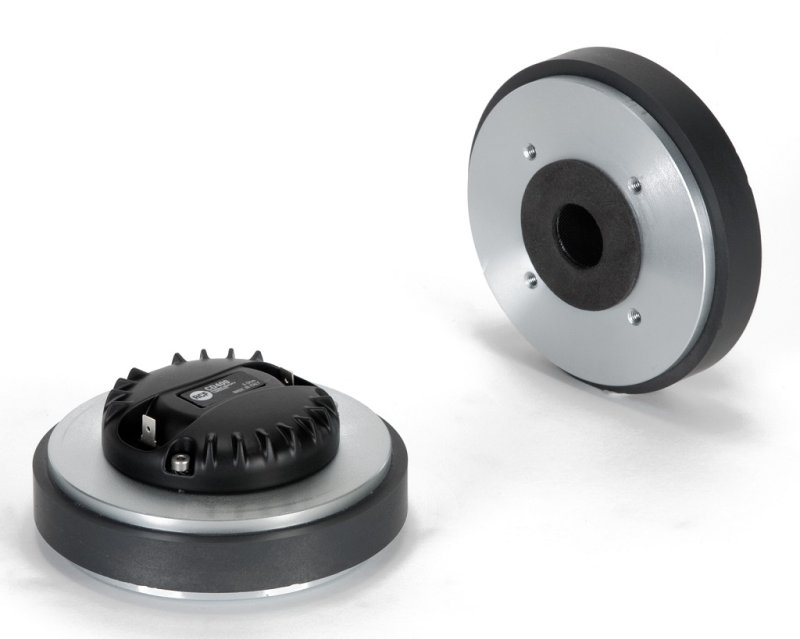

CD400 er en high-perfomance 1,75" diaphragm keramisk compression-driver med en 1" exit-throat. Diaphragm'en er præcisionsformet af polyester. Voice-coil'et er designet ved brug af Kapton-former ved høje temperature.
Exit Throat Diameter: 25.4 mm Rated Impedance: 8 Ω Power handling capacity continuous program1: 100 W AES Power handling capacity AES2: 50 W AES Sensitivity: 109 dB Frequency Range: 1200 Hz ÷ 20000 Hz Diaphragm Material: Polyester Suspension Material: Polyester Suspension Design: Flat Minimum Impedance: (at 4.5kHz) 6.5 Ω Voice Coil Diameter: 44.4 mm Voice Coil Material: Edgewound aluminium Voice Coil Former Design: Straight kapton Number of layers: 1 - outside BL Factor: 7.5 T · m Flux Density: 1.8 T Phase Plug Design: 2 slots Phase Plug Material: Composite Magnetics: Ceramic Voice Coil Demodulation: - Overall diameter: 134 mm Overall height: 52 mm Mounting 4 × 5 mm holes at 90°: 76.2 mm Net weight: 2.4 kg
