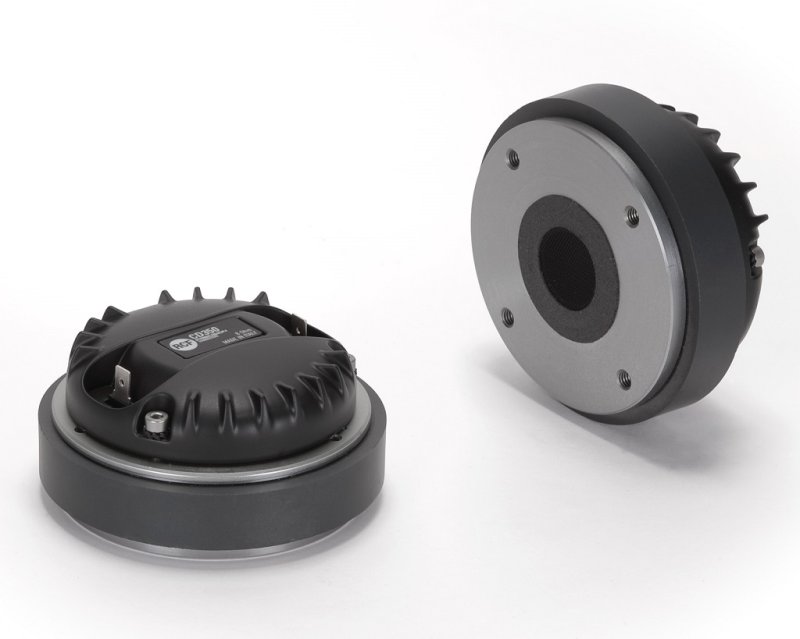

CD350 er en high-perfomance 1,75" diaphragm keramisk compression-driver med en 1" exit-throat. Diaphragm'en er præcisionsformet af polyester. Voice-coil'et er designet ved brug af Kapton-former ved høje temperature. Passer bla til: ART710-A ART712-A ART715-A HD10-A
Exit Throat Diameter: 25.4 mm Rated Impedance: 8 Ω Power handling capacity continuous program1: 100 W AES Power handling capacity AES2: 50 W AES Sensitivity: 108 dB Frequency Range: 1200 Hz ÷ 20000 Hz Diaphragm Material: Polyester Suspension Material: Polyester Suspension Design: Flat Minimum Impedance: (at 4.5kHz) 6.5 Ω Voice Coil Diameter: 44.4 mm Voice Coil Material: Edgewound aluminium Voice Coil Former Design: Straight kapton Number of layers: 1 - outside BL Factor: 6.7 T · m Flux Density: 1.6 T Phase Plug Design: 2 slots Phase Plug Material: Composite Magnetics: Ceramic Overall diameter: 102 mm Overall height: 50 mm Mounting 4 × 5 mm holes at 90°: 76.2 mm Net weight: 1.2 kg
