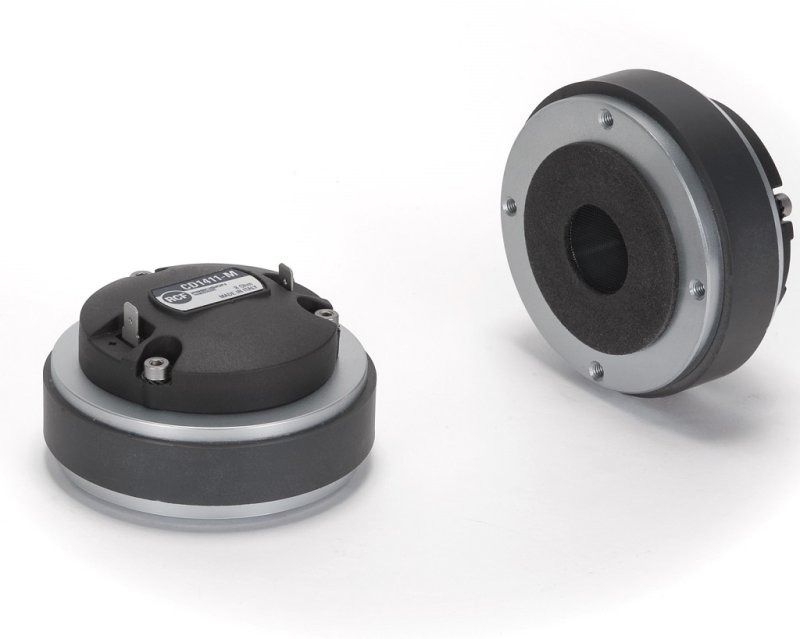

RCF Diskant enhed CD1411-M 1,5" 50 W driver

RCF CD1411-M Ceramic 1,5" compression driver

CD1411-M er en high-perfomance, 1,5" compression-driver med en 1" exit-throat og en single-piece, lavkompression, radial phase-plug. Diaphragm'en og affjedringen er præcisionsformet af Mylar. CD1411-M er en kompakt og alsidig driver til professionelle applikationer.

Exit Throat Diameter: 25.4 mm
Rated Impedance: 8 Ohm
Power handling capacity continuous program1: 50 W AES
Power handling capacity AES2: 25 W AES
Sensitivity: 108 dB
Frequency Range: 1500 Hz ÷ 20000 Hz
Diaphragm Material: Mylar
Suspension Material: Mylar
Suspension Design: Radial
Minimum Impedance: (at 6kHz) 7.0 Ohm
Voice Coil Diameter: 35.5 mm
Voice Coil Material: Edgewound aluminium
Voice Coil Former Design: Straight kapton
Number of layers: 1 - outside
BL Factor: 4 T · m
Flux Density: 1.6 T
Phase Plug Design: 10 radial slots
Phase Plug Material: Composite
Magnetics: Ceramic
Overall diameter: 91 mm
Overall height: 51 mm
Mounting 4 × 5 mm holes at 90°: 76.2 mm
Net weight: 0.98 kg

Størrelse

Dybde:	9,1
Højde:	5,1
