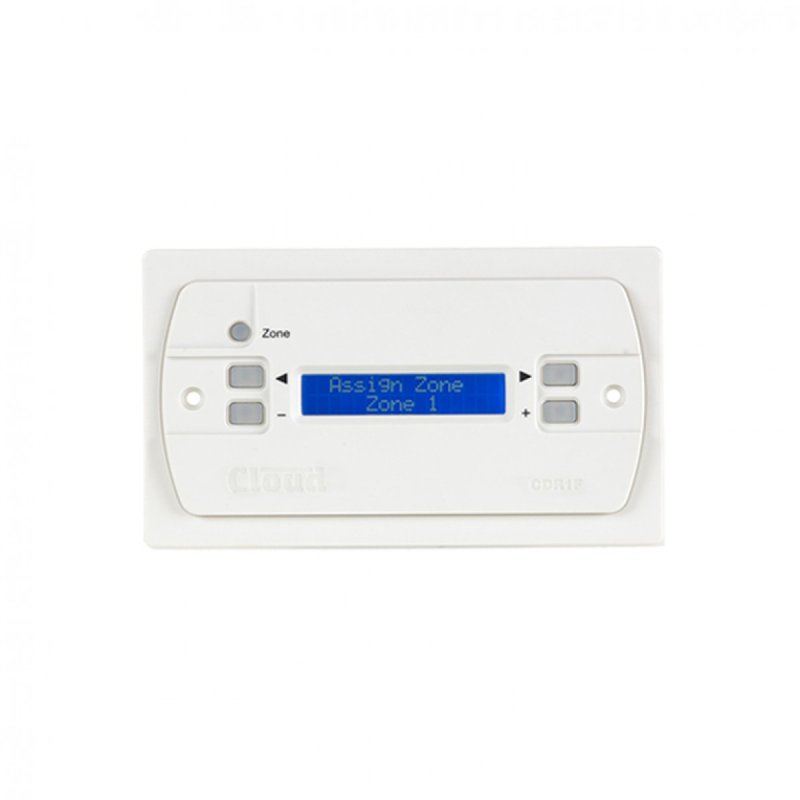

Cloud Vægpanel til DCM-1 Hvid

Cloud Vægpanel til DCM-1

Remote Music Source Select (DCM-1)

CDR-1FB

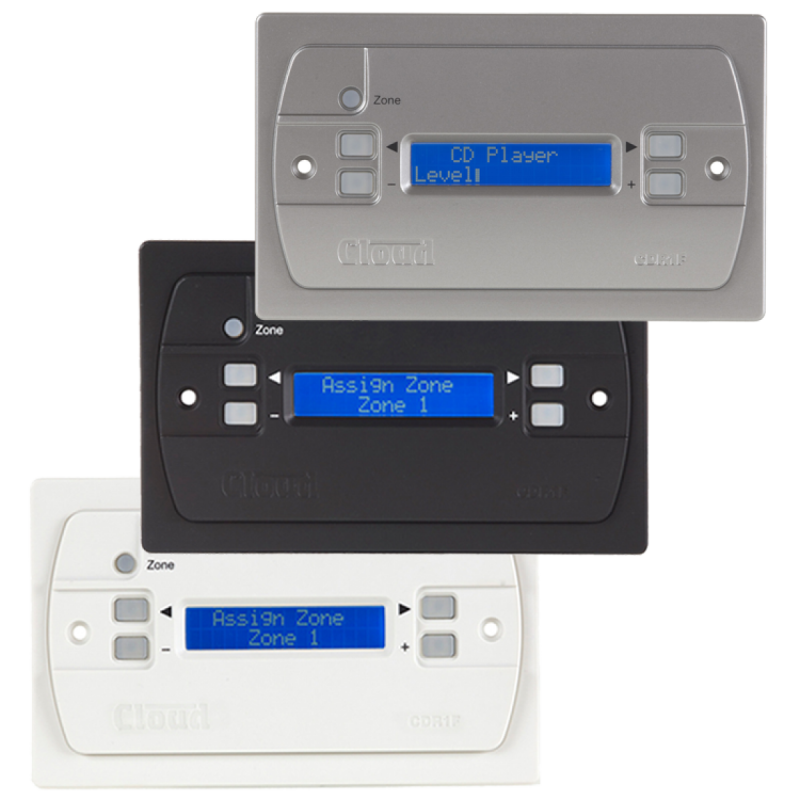

The CDR-1F is a flush-mount remote control panel for use with the Cloud DCM-1 Digital Control Mixer, fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons.
When installed in one or many of the DCM-1's zones, the CDR-1F provides the user and installer with localised control of a zone.

A zone may have one CDR-1F, more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.


Enables remote control of Cloud's DCM-1 Digital Control Mixer

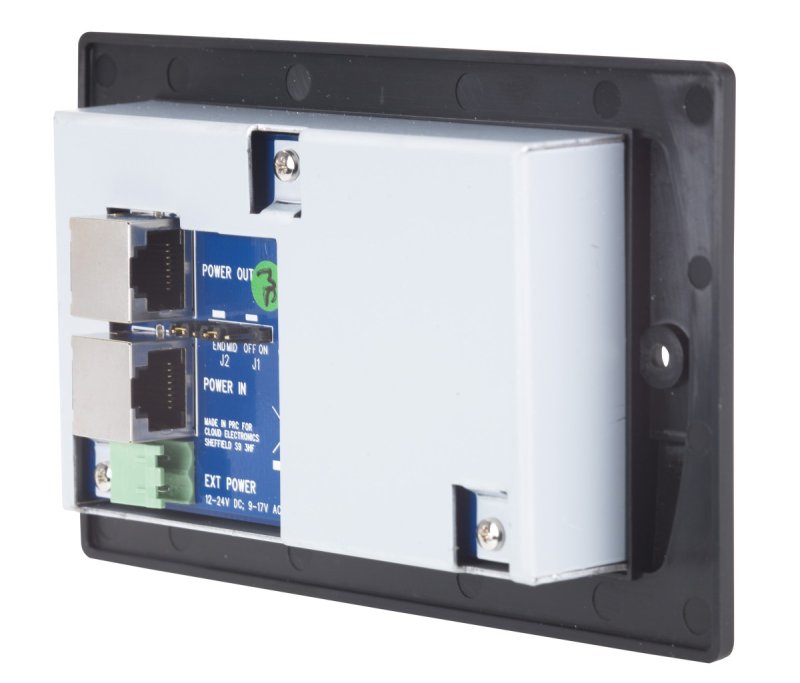

Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
Can be interconnected using a wide choice of wiring topologies
Backlit 2-row x 16 character dot matrix alphanumeric display

User accessible functions:
Source selection
Level control
Group enable/disable

Engineer mode functions (password enabled):
Local zone EQ adjustment

Installer mode (Enabled by internal jumper):
Zone assignment
Password setting
Display adjustment
Inactivity time (time for which display backlight remains lit after a button is pressed)

Størrelse

Bredde:	150 mm
Dybde:	30,25 mm
Højde:	90 mm
