Cloud Vægpanel til DCM-1 Sort

Cloud Vægpanel til DCM-1

The CDR-1W and CDR-1B are new surface mount versions of the CDR-1 surface mount control panel for the DCM-1, now available in White or Black finish.

The CDR-1 (surface-mount) and CDR-1F (flush-mount) are remote control panels for use with the Cloud DCM-1 Digital Control Mixer. The CDR-1 and CDR-1F are fitted with the same alphanumeric display as the DCM-1, with menu navigation being by five push buttons. When installed in one of the DCM-1's zones, it provides the user and installer with more convenient and practical control of system in addition to the DCM-1's front panel.

A zone may have one CDR1 (or CDR1F), more than one, or none at all. Functions include selection of audio source and control of audio level; additionally, any enabled zone groups of which the zone is a member may be activated locally.

Enables remote control of Cloud's DCM-1 Digitally Controlled Mixer
Simple to install - connects to DCM-1 and other CDR1/1F's using standard CAT-5 cable
Can be interconnected using a wide choice of wiring topologies
Choice of two mounting styles to suit installation

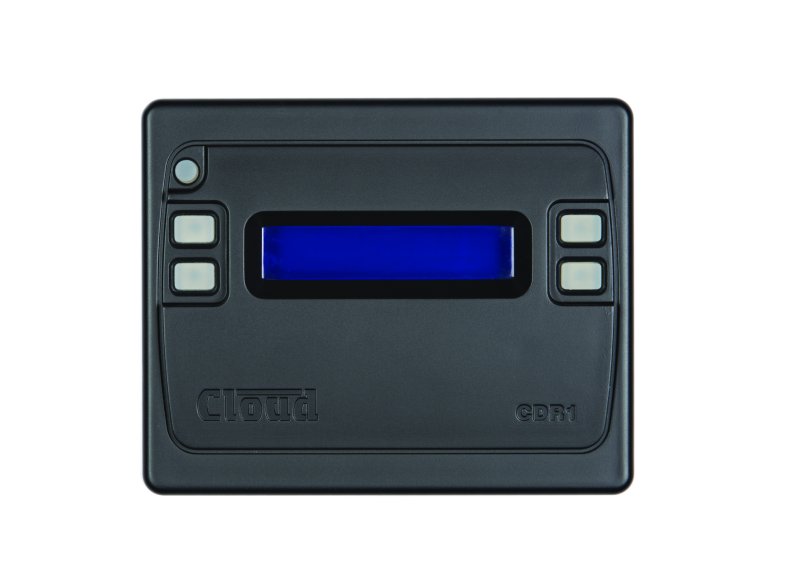

Backlit 2-row x 16 character dot matrix alphanumeric display

User accessible functions:
Source selection
Level control
Group enable/disable

Engineer mode functions (password enabled):
Local zone EQ adjustment

Installer mode (Enabled by internal jumper):
Zone assignment
Password setting
Display adjustment
Inactivity time (time for which display backlight remains lit after a button is pressed)

Størrelse

Bredde:	117,6 mm
Dybde:	33 mm
Højde:	95,6 mm

• CL-CDR-1B_Datasheet.PDF
• CL-CDR-1B_Manual.PDF
