Audac Mikrofoninput XLR 45x45 standard, hvid

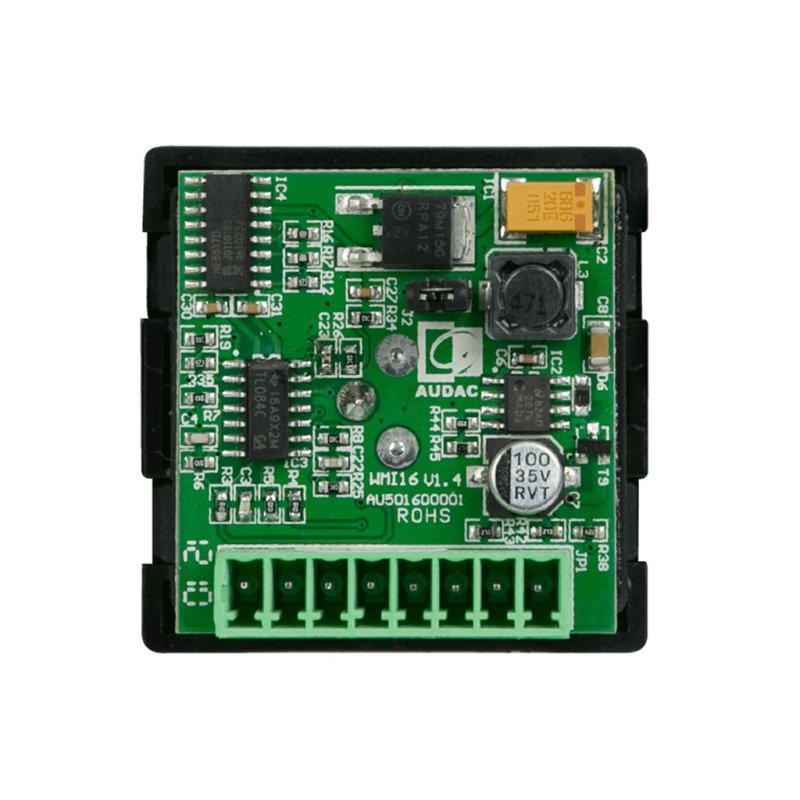

The WMI are flush mountable Wall Microphone Input Units, which can be integrated into several kinds of installation materials for system integration. They are fitted with a Female XLR input connector on the front side and a terminal block connector on the rear side. The signal which is applied to the input connection is converted to a differential signal with increased voltage levels. This way, the signal is made insensitive to interference and noise and can be transferred over a long distance without any loss of quality. This allows reliable signal transmission up to 300 meters over CAT5E (or better) twisted pair cabling. A jumper on the rear side allows enabling of 15 Volts phantom power. It should be used in combination with a matching device on the receiver end.

Variants
WMI18/B - Wall microphone input unit (45 x 45 mm)
WMI18/W - Wall microphone input unit (45 x 45 mm)



System Specifications
Cabling UTP CAT5E (or better)
Max. cable length 300 m
Phantom Power 12 V DC
Inputs Connector XLR female connector
Outputs Type 4-pin Euro Terminal Block (Pitch - 3.81 mm)
Signal Mono audio transfer
Level Differential with increased Voltage levels
Power Consumption 0.95 W - 40 mA / 24 V


Product features
Dimensions 45 x 45 x 50 mm (W x H x D)
Construction ABS
Mounting 45 x 45 mm (Audac / Niko / Legrand)
Colours Black (RAL9005) (WMI18/B)
White (RAL9010) (WMI18/W)

Størrelse

Vægt:	0,04
Bredde:	4,5
Dybde:	5
Højde:	4,5

Forsendelsesinformation

Pakke Bredde:	4,5
Pakke Dybde:	5
Pakke højde:	4,5
