Tascam AE-4 AES/EBU Dante converter 2in / 2 out, XLR

Beskrivelse

Specifikationer

Beskrivelse

Tascam MM-2D-X Analog Dante converter med DSP mixer

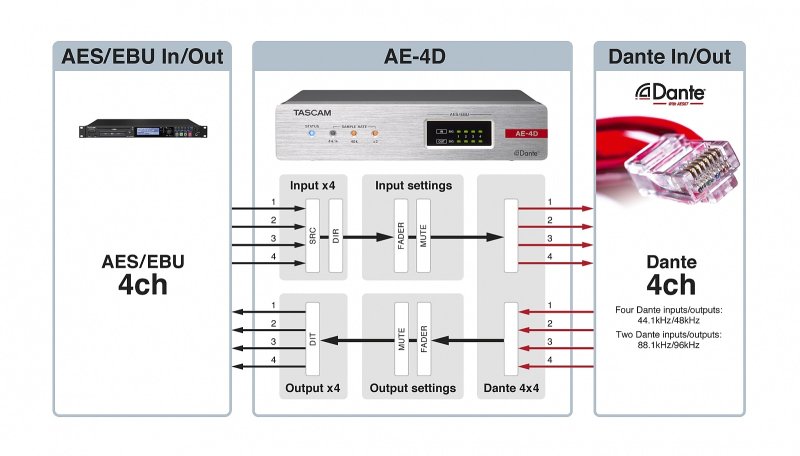

AE-4D er en udsøgt AES / EBU input / output enhed, der konverterer op til fire AES / EBU signaler til fire Dante lydkanaler og vice versa. Den har en indgangsprøvehastighedskonverter, understøtter lydopløsninger op til 96 kHz / 24 bit og bruger afbalancerede XLR-stik til AES / EBU-indgang og -udgang. DSP-funktioner i denne model er begrænset til ind- og udgangsfader og lydløs.

AE-4D er en del af Tascam Dante Compact-processorserien, der består af kompakte audio-konvertere med halv støjstørrelse til Dante / AES67-netværk. Modellerne kan nemt tilføje yderligere mic / line- eller AES / EBU-indgange / udgange til Dante-lydnet i offentlige faciliteter, tv-stationer, optagestudier eller eksklusive hjemmiljø og kan kombineres frit.

Fjernbetjeningen er mulig via to forskellige softwareprogrammer til Mac, Windows, IOS og Android enheder: Tascam DCP Connect til konfiguration og Tascam EZ Connect til slutbrugere, som begge er enkle at bruge og inkluderet i enhederne.

Alle modeller kan drives af PoE eller en ekstra vekselstrømsadapter. Ved brug af power-daisy-chaining kan to enheder monteret side om side i en rack forsynes med en vekselstrømsadapter.

Hardware features

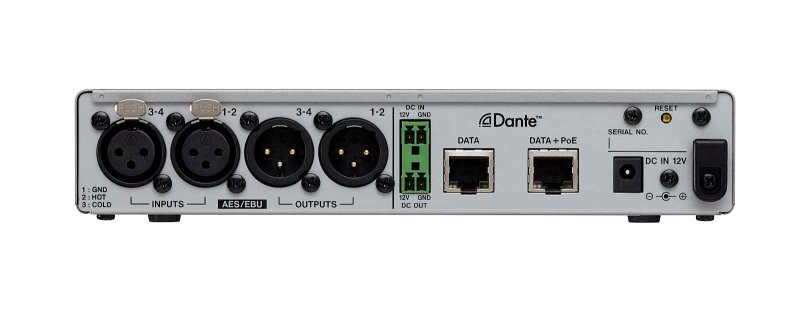

Two AES/EBU inputs on balanced XLR connectors with sampling rate converter
Two AES/EBU outputs on balanced XLR connectors
Four audio channels at 44.1/48 kHz, 16/24 bit
Two audio channels at 88.2/96 kHz, 16/24 bit
Dante interface allows audio signals to be transferred over an Ethernet network
Two LAN connectors for Dante daisy-chaining
Flexible routing with "Dante Controller" software
AES67 is supported to allow connection with Ravenna and other compatible audio network technologies

Up to 96 kHz sampling rate and 24 bit resolution

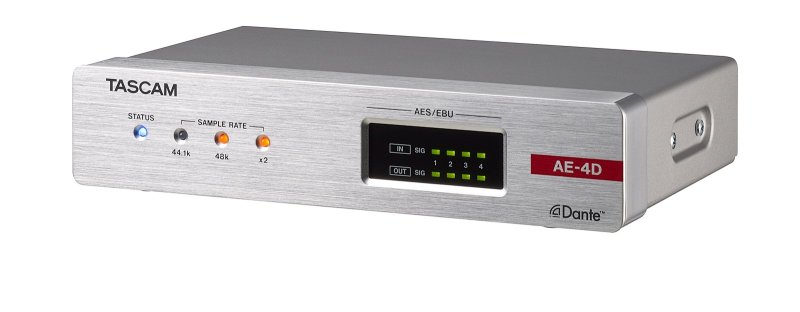

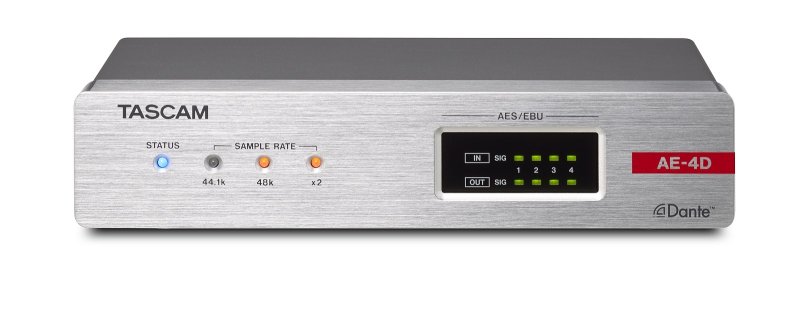

Front-panel indicators for operation status and current sample rate
Signal indicators for input and output signals
Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter
Power daisy-chaining allows two units to be supplied from one AC adapter
Half-rack size chassis (1U)
Attachment brackets included for mounting the unit under a table top, for example

Software features
Fader and mute settings for each input and output channel
Two types of control software available (compatible with Windows/Mac/iOS/Android devices): Tascam DCP Connect for system integrators offers full access to virtually all settings
Tascam EZ Connect for end-users is a simple app for only the most necessary settings (AE-4D does not have any settings that can be controlled via this app)

Optional accessories
PS-P1220E AC adapter (can also be used for redundant power supply when operating at PoE)
AK-RS1 rackmount shelf for two units to be mounted side by side

Specifications

General
Number of channels and formats 4 channels, 44.1 kHz, 48 kHz, 16/24-bit
2 channels (double speed), 88.2 kHz, 96 kHz, 16/24-bit

Inputs and outputs
AES/EBU INPUTS XLR-3-31
Input impedance 110 ohm
Format AES3-2003/IEC60958-4 (AES/EBU)
Supported sampling frequencies 32-192 kHz (Sampling rate converter is always on)
AES/EBU OUTPUTS XLR-3-32
Input impedance 110 ohm
Format AES3-2003/IEC60958-4 (AES/EBU)
Supported sampling frequencies 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Dante/Ethernet connectors (DATA/DATA+PoE) RJ-45
Transmission protocol Dante
Gigabit Ethernet standard 1000BASE-T (IEEE 802.3ab)
Cable requirements Cat 5e or better STP cables

Power supply and other specifications
Power supply PoE class 0
Tascam PS-P1220E AC adapter (sold separately)
Power consumption 3 W
Dimensions (W × H × D) 214 mm × 45 mm × 136 mm (including protrusions)
Weight 795 g
Permissible operating temperature range 0-40 ºC

Specifikationer

Information

Type:	Lyd over netværk

Størrelse

Vægt:	0,795 kg
Diameter:	136 mm
Bredde:	214 mm
Dybde:	136 mm
Højde:	45 mm

Forsendelsesinformation

Pakke Bredde:	21,4
Pakke Dybde:	13,6
Pakke højde:	4,5
