Tascam multitrack recording modul 32 track

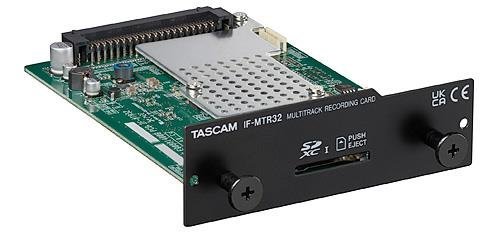

Tascam MTR32 recording card

High-definition multi-track recording added with a simple extension card
With the addition of the optional IF-MTR32 card, your Tascam Sonicview becomes a mixing and multi-track recording console capable of recording up to 32 tracks at 48 kHz or up to 16 tracks at 96 kHz directly to an SDXC card all with the same 32-bit precision used in Sonicview mixers.

By the way, you can work with 32 tracks at 48 kHz or 16 tracks at 96 kHz, regardless of the Sonicviews sync clock.

Optional expansion card to add a 32-track audio recorder to a Sonicview 24 or Sonicview 16 mixing console
Simultaneous recording/playback of up to 32 audio tracks (48 kHz) or 16 audio tracks (96 kHz)
Recording medium: SDHC, SDXC (up to 512 GB)
File format: BWF
Supported bit depths up to 32 bit
Auto Routing to simplify channel/track assignments
Virtual Soundcheck mode
Punch in/out (overdub) with up to 32 tracks (automatic with rehearsal, or manual)
Pre-Record (up to two seconds)
Auto-Record (recording begins/ends depending on input level)
Marks (saved with BWF audio file)
Repeat (take, project, I-O)
Import tracks from DAWs or other IF-MTR32 (BWF format)
Automatically saves and closes files every 60 seconds to prevent data loss
Instant sound output after starting playback (100 ms)
Fully controllable by Tascam Sonicview including GPIO, footswitch and User keys

Multi-track recorder
Max simultaneous recording/playback tracks 32 (48 kHz), 16 (96 kHz)
(simultaneous punch-in/out with all available tracks)
Undo/Redo 1 step
Record functions Pre-recording (2 seconds), Auto-recording, Marks
File protection Auto-saving every 60 seconds
Sampling rate 48 kHz, 96 kHz
Bit depth (recording) 24 bit, 32 bit
Bit depth (playback) 16 bit, 24 bit, 32 bit
SD card Type SDHC, SDXC (UHS I or higher)
Capacity up to 512 GB

Størrelse

Vægt:	0,13 kg
Bredde:	107 mm
Dybde:	157 mm
Højde:	34 mm
