ART Rackmixer 8 kanaler stereo

ART MX822CE Mixer 8 kanaler stereo

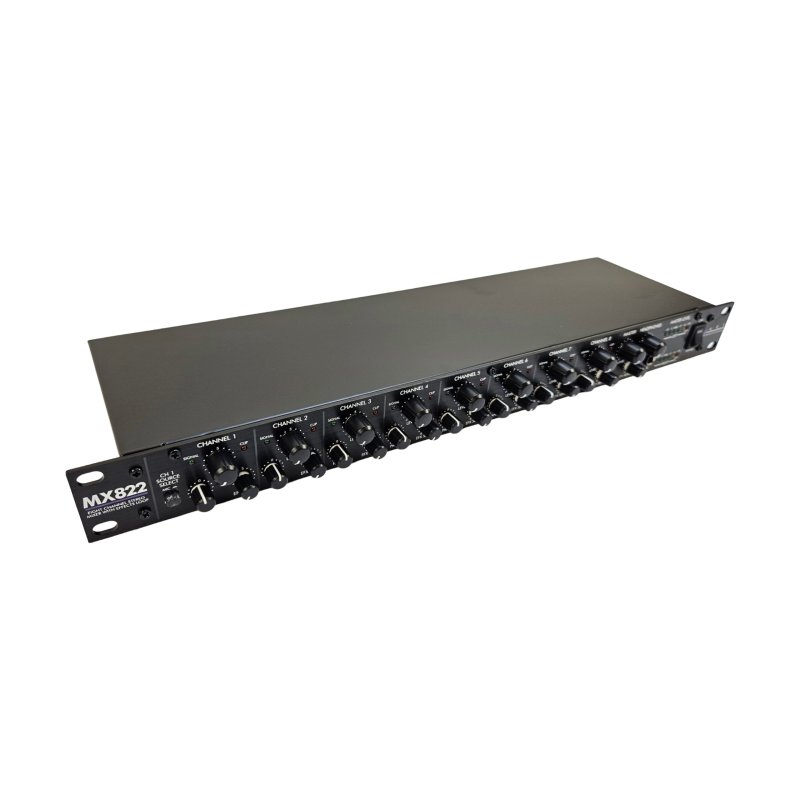

ART MX822 8-Channel Stereo Rackmount Mixer er en alsidig mixer med 8 inputs til studio, live-lyd eller installationsapplikationer. Hvert input accepterer mono eller stereo-signal og tilbyder uafhængig level, panorering og effekter-send styring. Kanal-1 inkluderer en switchable mic/line-kilde og XLR mikrofon-stikket tilbyder switchable phantom-power.

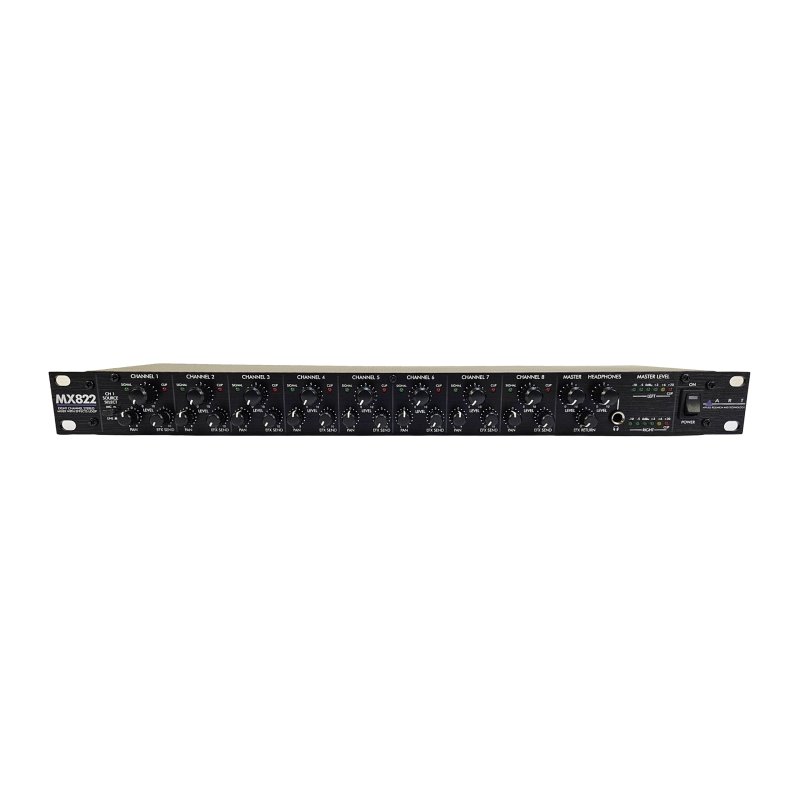

Flere MX822 kan kædes sammen for ekstra inputs med almindelige 1/4" TRS-kabler. Eksterne effektprocessorer kan linkes ind og mixes via uafhængig level-kontrol. Et hovedtelefon-jack på frontpanelet med separat level-kontrol muliggører uafhængig overvågning.

Eight stereo/mono input channels with individual level, pan and effects send controls
External effects loop with independent send and return controls
Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for
output monitoring
Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
Switchable low noise +48V phantom power for microphone input
Separate green and red LED signal and clip indicators for each input channel
Six level left and right main output metering including clip indicators
Balanced left and right XLR main outputs
Multiple units may be chained together for additional inputs
Rugged 1U rack mount steel case

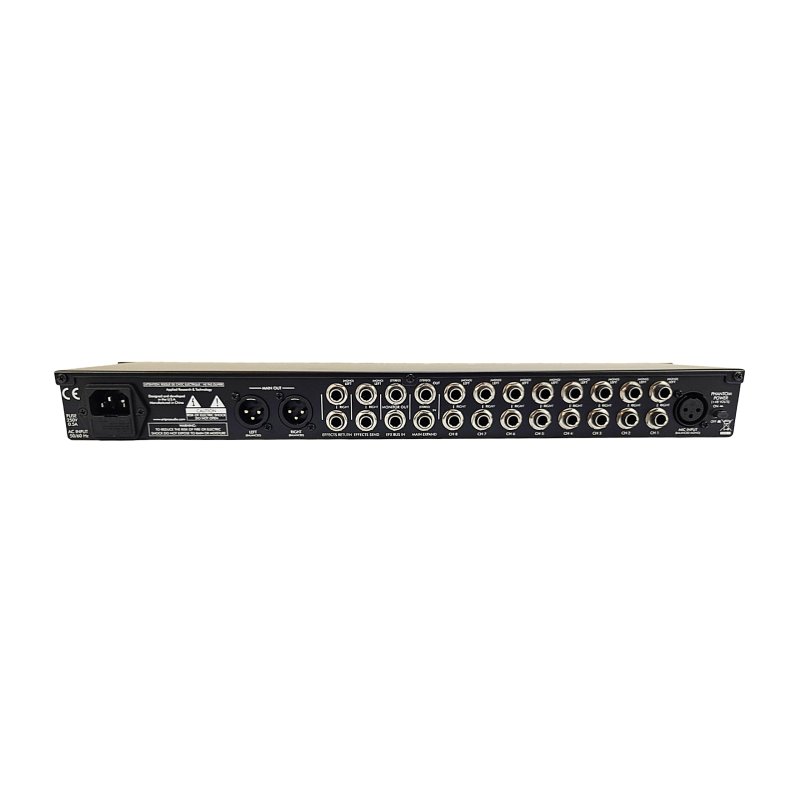

Input Connections: XLR-F balanced (MIC), 1/4" TRS unbalanced (Ch1-Ch8, Effects Return), 1/4" TRS stereo unbalanced (EFX Buss, Main Expand)
Output Connections: XLR-M balanced (Main), 1/4" TRS unbalanced (Effectss Send), 1/4" TRS stereo unbalanced (Monitor, Main Expand, Headphone)
Input Impedance: 1k Ohm (MIC), 5k Ohm (Ch1-Ch8)
Output Impedance: Total Harmonic Distortion: Signal to Noise Ratio: > 90dB typical (Ref 0dBu)
Maximum Input Level: -19dBu (MIC), +24dBu (Ch1-8)
Maximum Output Level: +24dBu (Main), +18dBu (Monitor, Effects Send)
Maximum Gain: +60dB (MIC), +14dB (Ch1-8)
Phantom Power: Switch Selectable, +48V DC, filtered, current limited
Power Requirements: USA - 95 to 125 VAC, 50-60 Hz
Export units configured for country of destination
Dimensions: 1.75"H x 19"W x 6"D (44.5mm x 483mm x 152mm)
Weight: 6.5 lbs (2.95 kg)

Størrelse

Vægt:	2,95 kg
Bredde:	483 mm
Dybde:	152 mm
Højde:	44,5 mm
