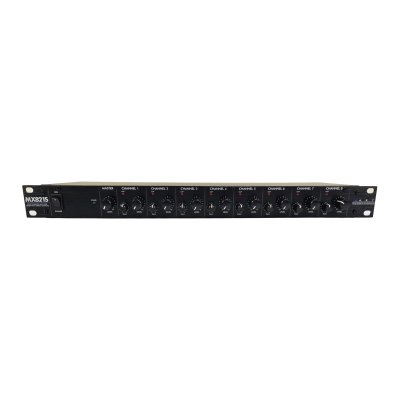

ART Rackmixer 8 kanaler

ART MX821S Mixer 8 kanaler

ART MX821S er en alsidig rackmount-mixer som kombinerer otte uafhængige input-kanaler i et stereo line-level output. Hver input-kanal accepterer et balanceret XLR mikrofon-input, eller et ubalanceret 1/4" TS line-level signal og tilbyder uafhængig niveau og panoreringskontrol.

+48V phantom-power kan vælges uafhængigt på hvert mikrofon-input. Master-level kontrollen justerer signalets output hos lavimpedans balancerede 1/4" TRS-jacks. Prefade-output (påvirkes ikke af master-level kontrollen) og Aux-Bus input RCA-jacks tillader patching af flere enheder når flere kanaler er nødvendige.

ART MX821S kan bruges både på scene, i studioet eller til permanente installationer. Den indbyggede strømforsyning og 19" rackmount-format gør enheden let at installere og giver langsigtet, pålidelig drift.

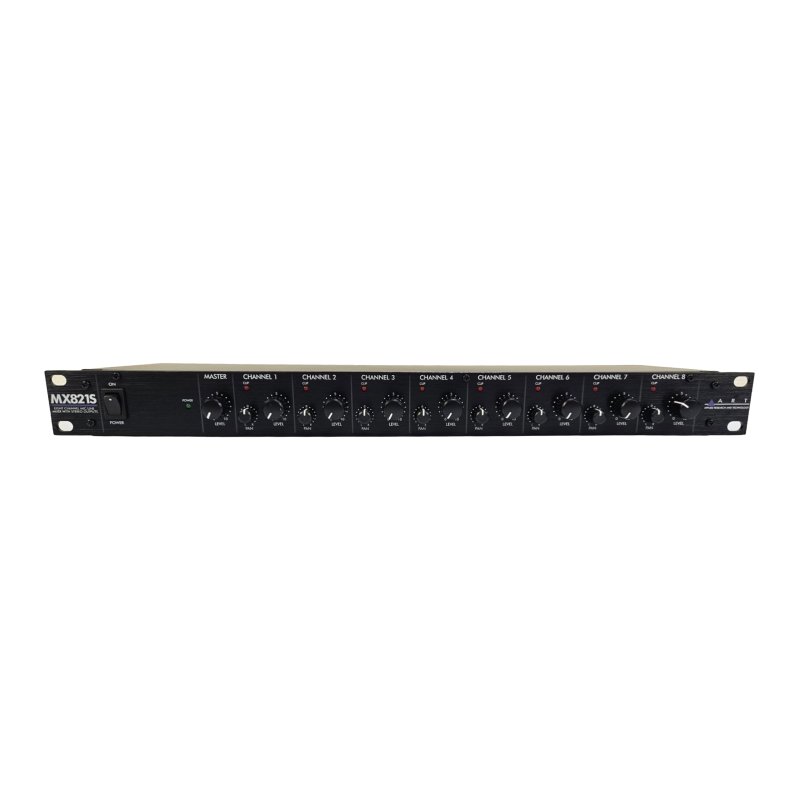

Eight input channels with individual level and pan controls
Pan controls place each input mono signal anywhere in the output stereo image
Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel
Full +48V low noise phantom power switchable for each microphone input
Balanced left and right 1/4-inch TRS main output jacks with master level control
Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs
Each line input jack may be individually converted to a direct line output by means of internal jumpers

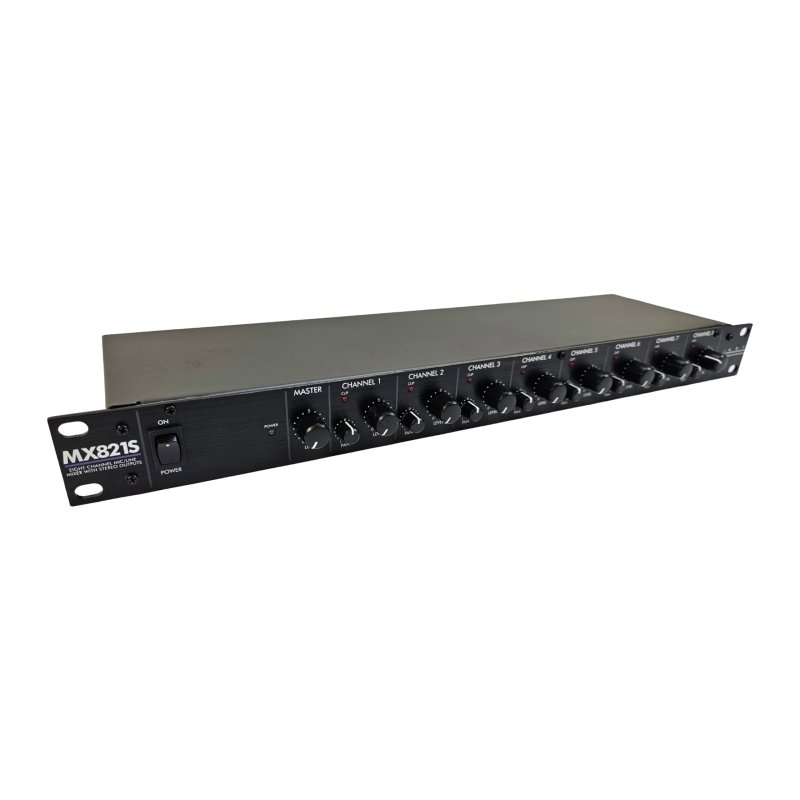

Rugged 1U rack-mount steel chassis with built-in power supply
Perfect for stage, studio and permanent installations

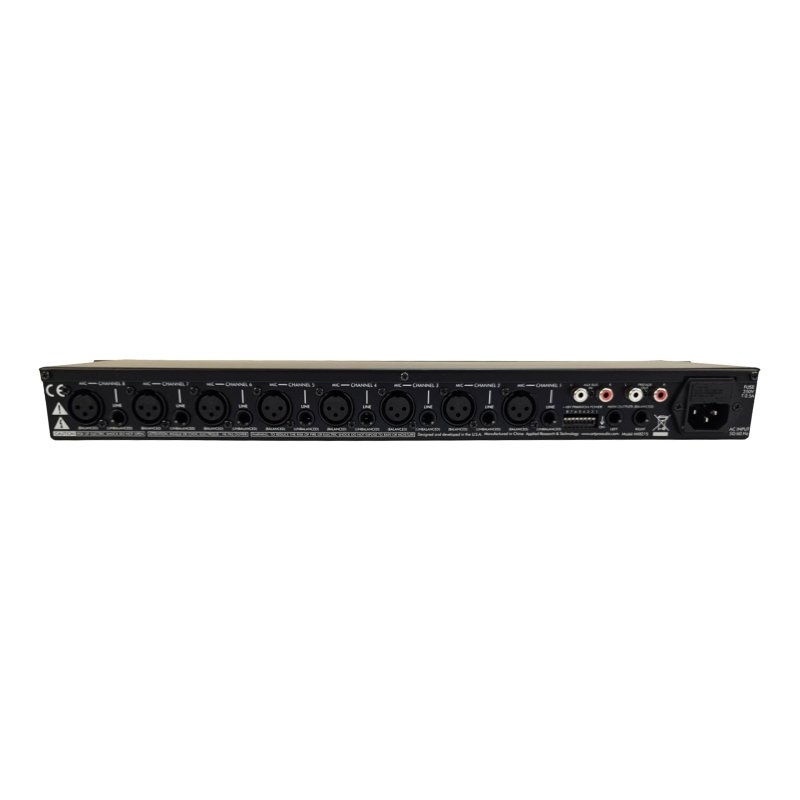

Input Connections: XLR female balanced (Mic, channels 1-8), 1/4-inch TS unbalanced (Line, channels 1-8), RCA unbalanced (Aux Bus In, Left and Right)
Output Connections: 1/4-inch TRS balanced (Main Outputs, Left and Right), RCA unbalanced (Prefade Out, Left and Right)
Input Impedance: 2k Ohm (Mic), 20k Ohm (Line), 51k Ohm (Aux Bus In)
Output Impedance: 200 Ohm (Main Outputs, balanced), 100 Ohm (Prefade Out)
Frequency Response: 20 Hz - 20 kHz (+0, -1 dB) (CH 1-8 in, M
Total Harmonic Distortion: Phase Response: All connections are phase coherent
Signal to Noise Ratio: >99dB typical (Ref 0dBu)
CMRR: >43 dB typical
Maximum Input Level: -4 dBu (Mic), +22 dBu (Line)
Maximum Output Level: +24 dBu (balanced), +18 dBu (unbalanced)
Maximum Gain: 54 dB (Mic), 29 dB (Line)
Phantom Power: Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg
Power Requirements: USA: 95-125 VAC, 50-60 Hz, Dimensions: 1.75" x 19" x 6" (4.5cm x 48.3cm x 15.2cm)
Weight: 6.3 lbs (2.9 kg)

Størrelse

Vægt:	2,9 kg
Bredde:	483 mm
Dybde:	152 mm
Højde:	45 mm
