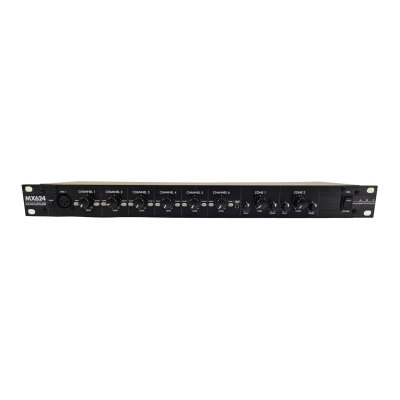

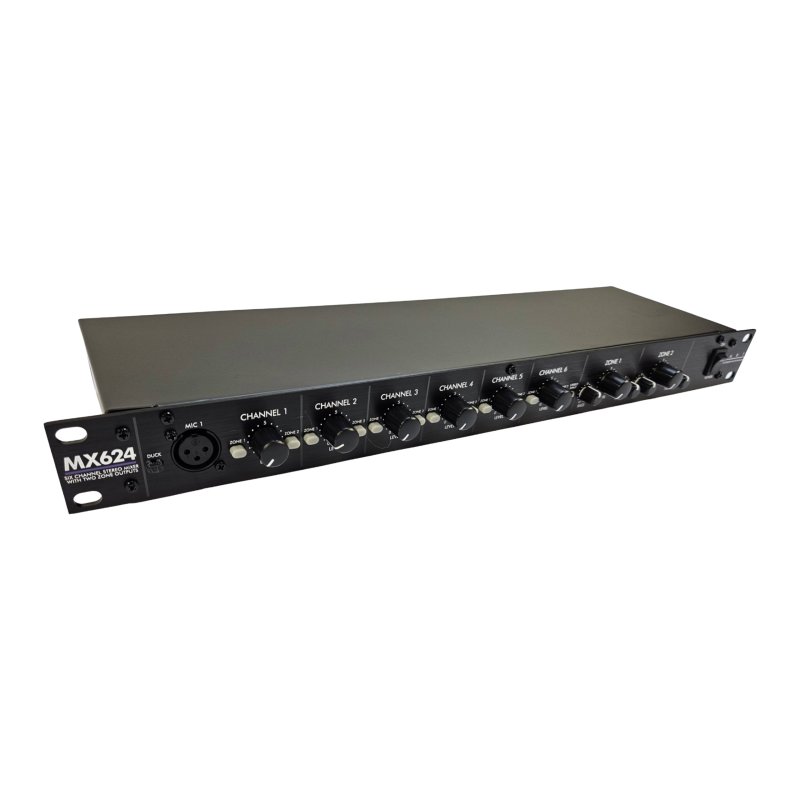

ART Zonemixer 2 zoner 6 input

ART MX624CE Mixer 6 kanaler 2 zoner

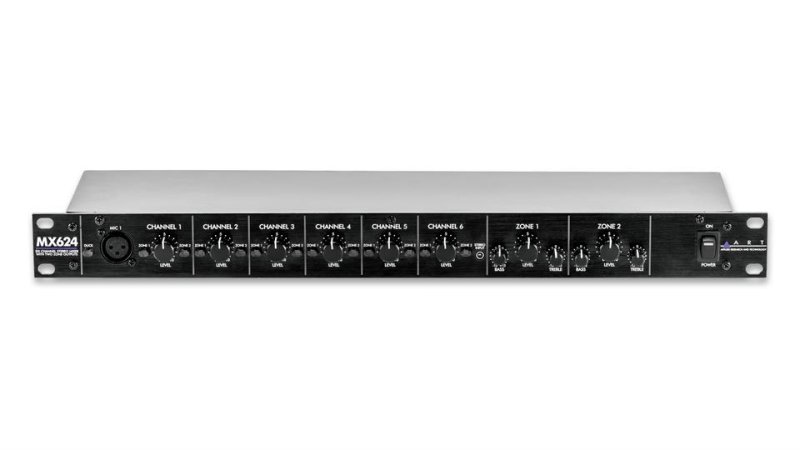

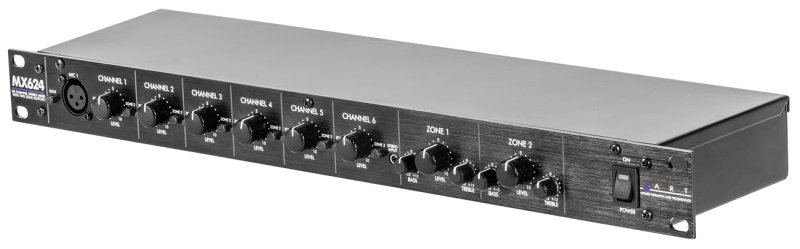

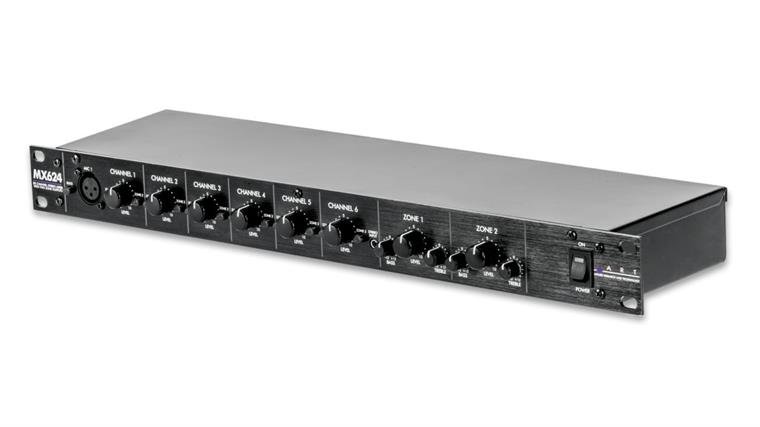

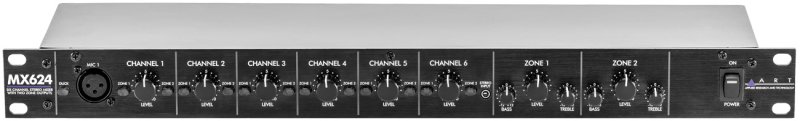

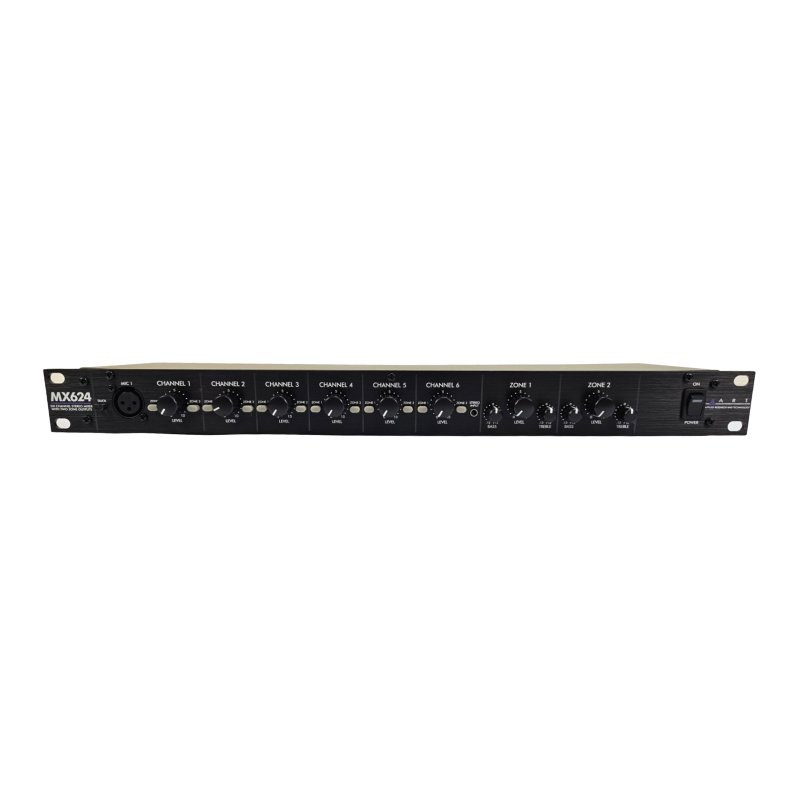

ART MX624 er en 6-kanals Stereo Mixer med Two-Zone outputs. Det er en alsidig rackmount-mixer som kombinerer uafhængige input-kanaler og router dem til to stereo-zone outputs.

Den første kanal kan bruges til at kontrollere, via en frontpanel-switch, en ducking-egenskab hos alle kanaler hvilket gør den til det ideelle paging-system. Alle seks kanaler kan acceptere ubalancerede stereo line-level signaler. 48V phantom-power kan tildeles til hver mikrofon-kanal. Hver kanal har sine egne level-kontrollere og kan routes uafhængigt af hvert zone-output. Separat level, bas og diskant-styring justerer hver zone-outputs lyd.

ART MX624 har en indbygget strømforsyning og et 19" rackmount-format.

Six stereo input channels with individual level controls
Balanced mono microphone XLRs available on the first three channels
Selectable padding on mic inputs
Full +48V low-noise phantom power independently switchable for each mic input
First channel provides switchable ducking of other channels with selectable parameters
Front panel 1/8-inch stereo (TRS) mini-phone plug for portable music player input
Two sets of left and right 1/4-inch TS main output jacks with master level, bass and treble controls
Two bus input 1/4-inch TRS jacks allow units to be chained to provide extra inputs
Rugged 1U rack-mount steel chassis with built-in power supply

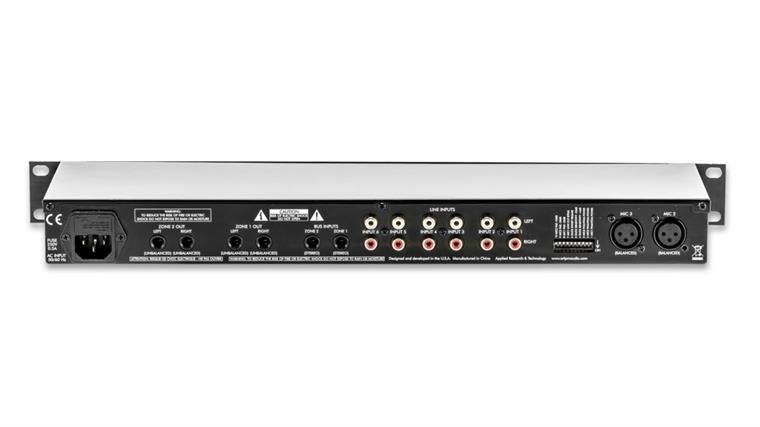

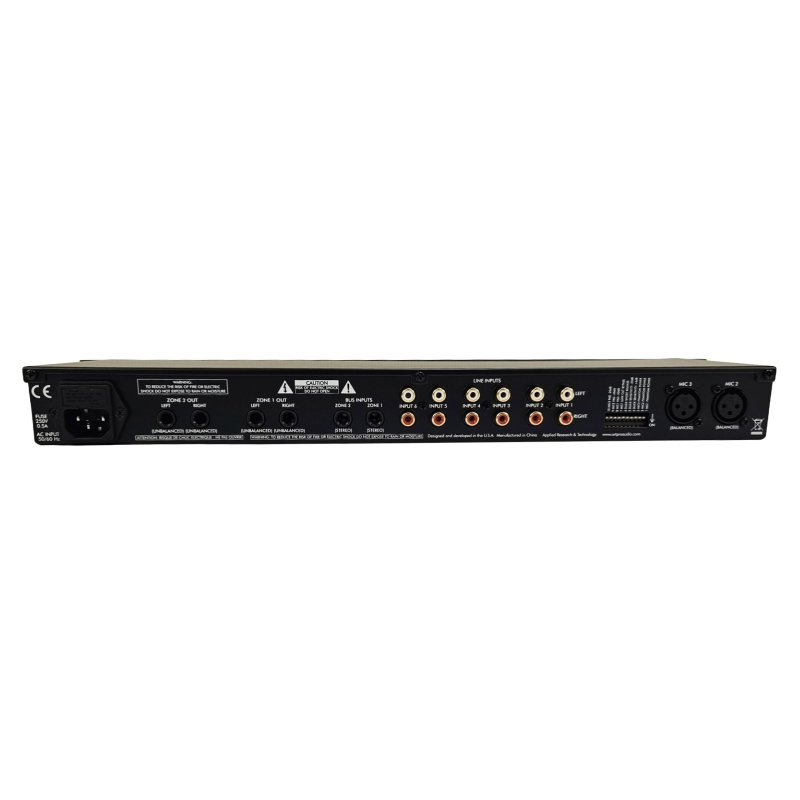

Input Connections: XLR female balanced (Mic, channels 1-3), RCA unbalanced (Line Inputs 1-6, Left & Right), 1/4-inch TRS unbalanced stereo (Bus Inputs, Zone 1 & 2)
Output Connections: 1/4-inch TS unbalanced (Zone 1 & 2 Out, Left & Right)
Input Impedance: 4k Ohm (Mic), 10k Ohm (Line), 10k Ohm (Bus)
Output Impedance: 200 Ohm (Zone 1 & 2)
Frequency Response: 20 Hz - 20 kHz (+0, -1 dB) (channels 1-6 in, zone out)
Total Harmonic Distortion: Phase Response: All connections are phase coherent
Signal to Noise Ratio: >90 dB typical (Ref 0dBu)
CMRR: >43 dB typical
Maximum Input Level: -4 dBu, +16 dBu with 20 dB pad (Mic), >25 dBu (Line)
Maximum Output Level: +20 dBu (unbalanced)
Maximum Gain: 57 dB (Mic), 31 dB (Line)
Ducking Threshold: -49.5 dBv (adjustable via rear-panel dipswitches)
Ducking Depth: 15 dB
Tone Controls: +/-12 dB @ 100 Hz & 10 kHz
Phantom Power: Switch selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg
Power Requirements: USA: 85-125 VAC, 50-60 Hz, Export units configured for country of destination
Dimensions: 1.75"H x 19"W x 6"D (44.5mm x 483mm x 152mm)
Weight: 4.9 lbs (2.2 kg)

Størrelse

Vægt:	2,2 kg
Bredde:	483 mm
Dybde:	152 mm
Højde:	44,5 mm
