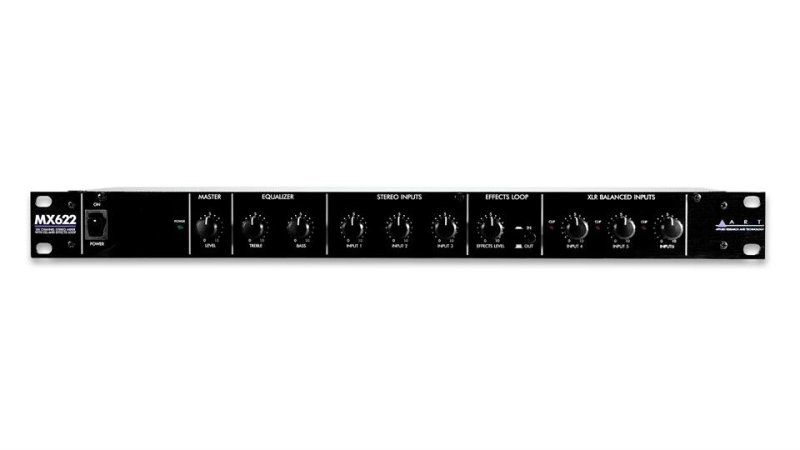

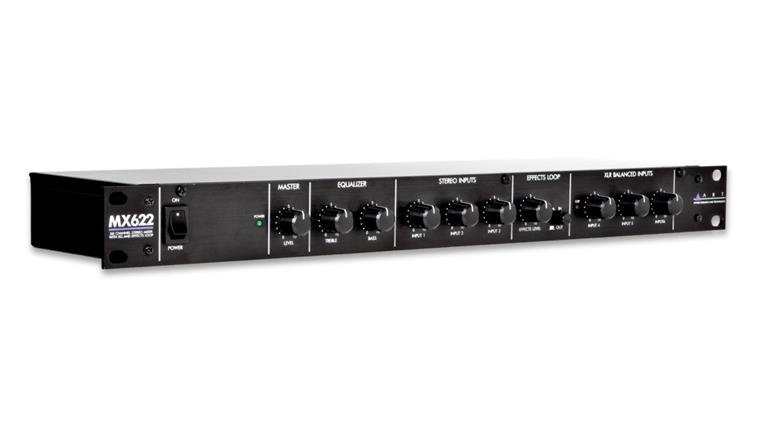

ART Stereo rackmixer 3 Mic og 3 line input

ART MX622CE Mixer 6 kanaler

MX622 er en alsidig mixer som kombinerer tre balancerede mikrofon- eller line-level inputs, med tre stereo line-inputs i et stereo line-level mix. Enheden tilbyder egenskaber som eksterne effects-loop (mono-send med stereo-return), uafhængig stereo-record outputs, stereo TRS 1/4" balancerede outputs og full-range master 2-bånds EQ. Den interne strømforsyning og 19" rackmount-format gør enheden let at installere og giver langsigtet, pålidelig drift.

Three Balanced XLR Inputs Switchable Mic/Line Level
Three Stereo RCA Inputs with Separate Level Controls
Level Control and Clip Indicators
Selectable 15-volt Phantom Power for Mic Channels
Balanced TRS 1/4-inch Main Output Jacks with Master Level Control
Versatile Two-Band Master EQ
Separate Stereo Record Outputs
Effects Loop with Level Independent Level Control

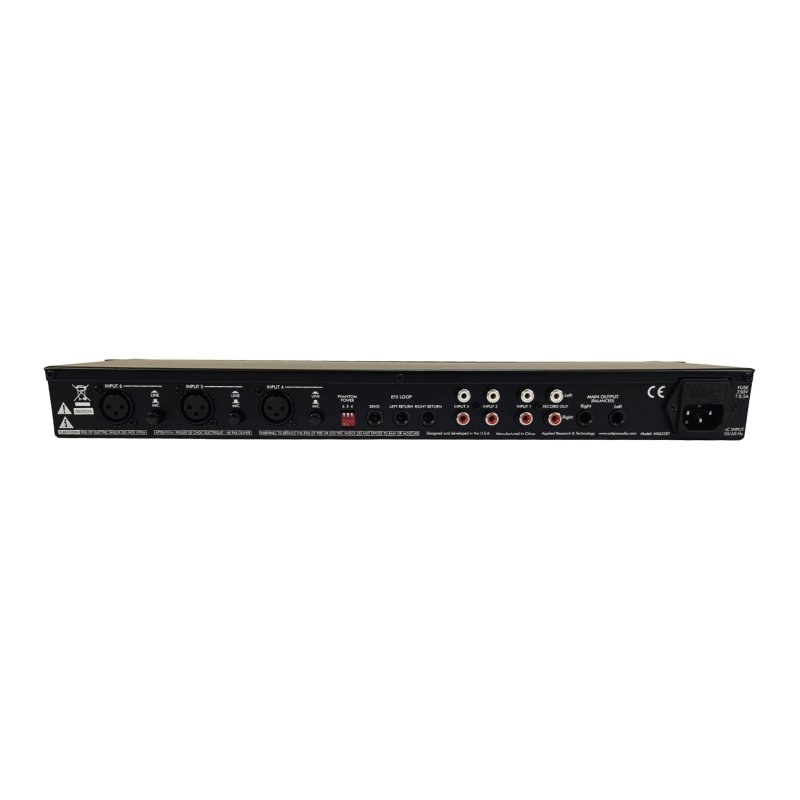

Input Connections: XLR-F balanced (x3), 1/4-inch unbalanced (x2), 3 pairs stereo RCA (6 total)
Output Connections: TRS balanced 1/4-inch (x2), 1/4-inch unbalanced (x1), RCA (x2)
Input Impedance: 600/22K Ohm mic/line XLR inputs / 10K Ohm RCA inputs / 22K Ohm 1/4-inch effects returns
Output Impedance: 50 Ohm 1/4-inch main outputs / 1K Ohm RCA record outputs / 100 Ohm effects output
Total Harmonic Distortion: .01% Typical
Signal to Noise Ratio: > 90dB typical
Maximum Input Level: -10dBu/+20dBu mic/line XLR inputs / +20dBu RCA line inputs / +20dBu Effects inputs
Maximum Output Level: +24dBu balanced main outputs / +20dBu RCA record outputs / +20dBu Effects output
Maximum Gain: 56dB/26dB mic/line / 26dB RCA inputs
Phantom Power: +15Volts DC (regulated / low noise)
Power Requirements: USA - 105 to 125 VAC / 50-60Hz, 15 W typical
Equalizer Range: +/-12dB @ 100Hz & 10kHz
Dimensions: 1.75"H x 19"W x 6.0"D (44.5mm x 483mm x 152mm)
Weight: 6.2 lbs (2.8 kg)

Størrelse

Vægt:	2,8 kg
Bredde:	483 mm
Dybde:	152 mm
Højde:	44,5 mm
