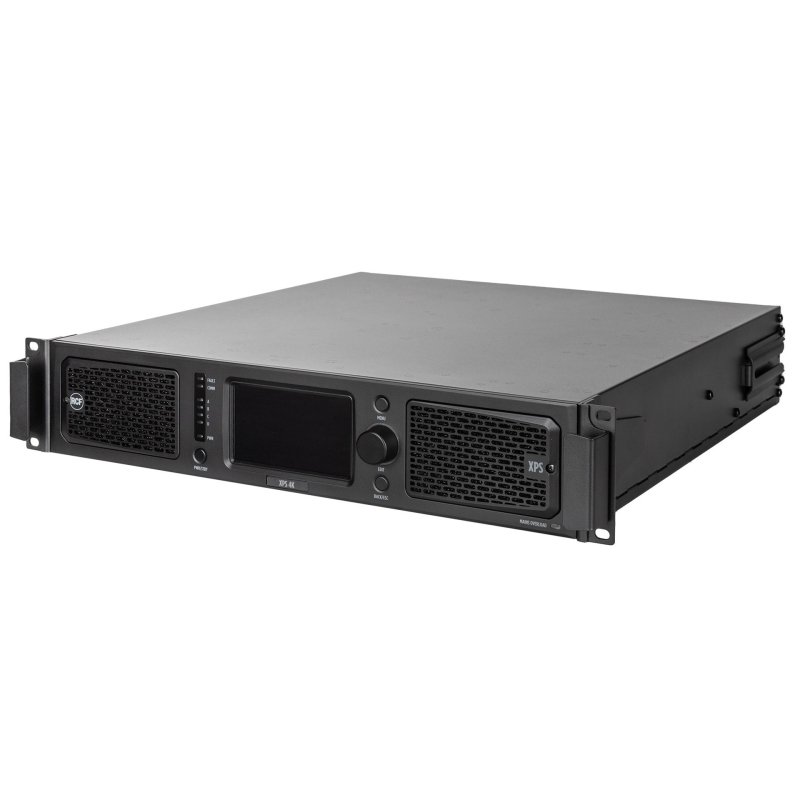

XPS 4K DSP forstærker
XPS 4K er en firekanals effektforstærker med avanceret processorkraft og analoge/digitale routingmuligheder til krævende installationslydapplikationer. Med 4x1000 W Klasse D kontinuerlig effekt ved 4 ohm, 40-bit floating-point-processorkraft ved 96 kHz og 32-bit intern routing har XPS 4K en bemærkelsesværdig effekttæthed i et 2U-kabinet. XPS 4K er designet til installationslydsystemer af høj kvalitet og er beregnet til brug med højtydende højttalere.
Den tilbyder brugsklare konfigurationer og forudindstillinger. Den kan også bruges i lineær tilstand med avancerede tuningfunktioner. Hver udgang har: 4000 ms udgangsforsinkelse (1372 m / 4501 ft), EQ-filtre, delefiltre, FIR-filtre, multibåndskompressor, RMS-limiter og termisk limiter. XPS leverer brugervenlig premium-lyd med fuld RDNet-fjernstyring, stor indbygget touch-grænseflade, exceptionelt signal/støj-forhold, ultralav forvrængning og ekstremt dynamisk område.
4000 W total kontinuerlig effekt
40-bit floating-point processor, op til 96 kHz
32-bit fixed-point intern routing
FiRPHASE, basbevægelseskontrol, basformer
RDNet netværksstyring

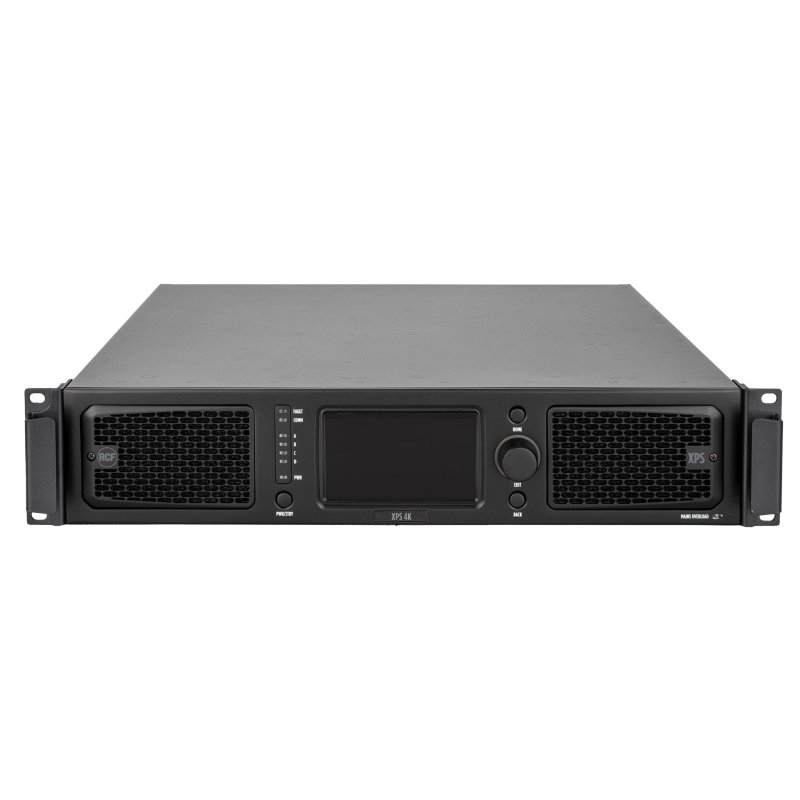

Touch 4,3" farve-TFT-grænseflade
Fuld indbygget processor med delay, EQ, kompensation/limiter
Indbygget bibliotek med forudindstillinger til højttalere
Amplifier specifications
Amplifier Class D
Output Power (EIAJ 8:32 all channels driven)
4 x 1000 W @ 4 ohm
4 x 700 W @ 8 ohm
Frequency Response (-3dB) 20 Hz - 23000 Hz
SNR Analog inputs (unweighted) >108 dB
SNR Digital inputs (unweighted) >112 dB
Crosstalk <70 dB
Distortion (THD+N) (20 Hz - 20000 Hz,250 W @ 4 ohm) <0.2 %
Gain (linear mode @ 0 dB) 32 dB
Damping factor (@ 4 ohm, 20 Hz - 1500 Hz) >200
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N) 100 ms

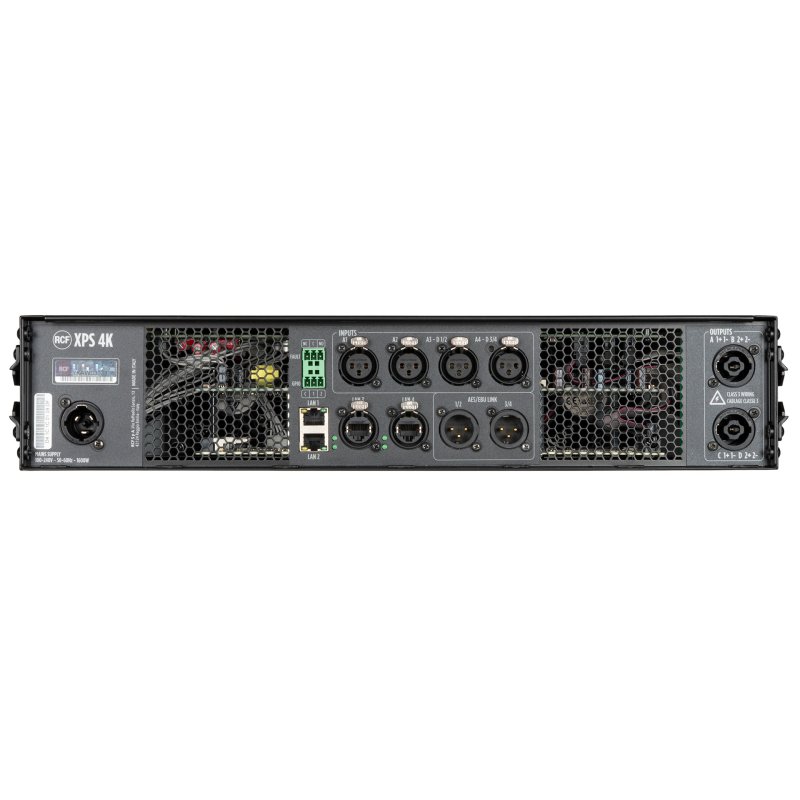

Input section
Total number of inputs 8
Line inputs 4
Line connectors XLR
Digital inputs 4
Digital connectors XLR
Digital type
AES/EBU
General Purpose Inputs (GPI) 2
Programmable GPI Yes
Photo-coupled GPI 2
Output section
Signal output number 4
Signal output connectors XLR
Power output connectors Speakon
General Purpose Outputs (GPO) 3
Programmable GPO Yes
Processing DSP
2 SHARC, 40-bit floating point, 96 kHz
2 ADAU, 32-bit fixed point, 96 kHz
EQ Filters
Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
Advanced algorithms
FiRPHASE technology | BASS shaper | air compensation | mid-low correction | driver excursion control | dynamic PEQ | multi-band compressor | pilot tone detection | backup recovery strategy | impedance load measurement
Compressors
RMS limiter | dynamic compressor | power limiter | thermal compressor
Delay 0 ÷ 4000 ms (each channel)
Tone controls Yes
High-pass filter 10 Hz - 1000 Hz
Crossover 2500 - 3500 Hz
Automatic gain control Yes
Configuration and control
Configuration
Front panel touch screen, PC Software
Network Gigabit ethernet
RCF speakers presets Yes
Priority Yes
Protocols for system integration
Proprietary OSC based protocol
RDNet Onboard
Protections Cooling
Forced
Short circuit Yes
Thermal Yes
DC Yes
Fuses Yes
VHF (Very High Frequencies) Yes
Operating conditions
Temperature range - Continuous operation -5°C - +40°C / +23°F - +104°F
Temperature range - Reduced output power -5°C to +50°C / +23°F to +122°F
Fan noise idle < (dBA) <28 dBA
Fan noise max < (dBA) <48 dBA
Power requirement
Operating voltage 90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V 14 A
Nominal current AC @ 220-240 V 8 A
Stand by power consumption 30 W
Idle power consumption 100 W
Power consumption (MAX) 2600 W
Main fuse Internal
Standard compliance
Safety agency CE compliant
Physical specifications Cabinet/Case
Material Metal
Handles 2 metal handles for rack mount
Color Black - RAL 9005
Rack mounting 19", 2U
