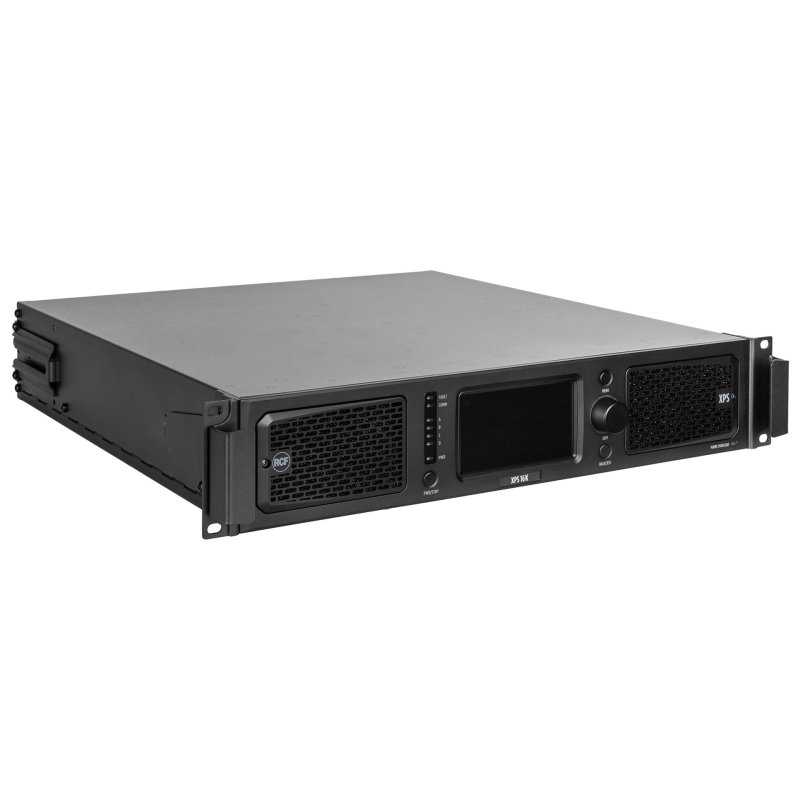

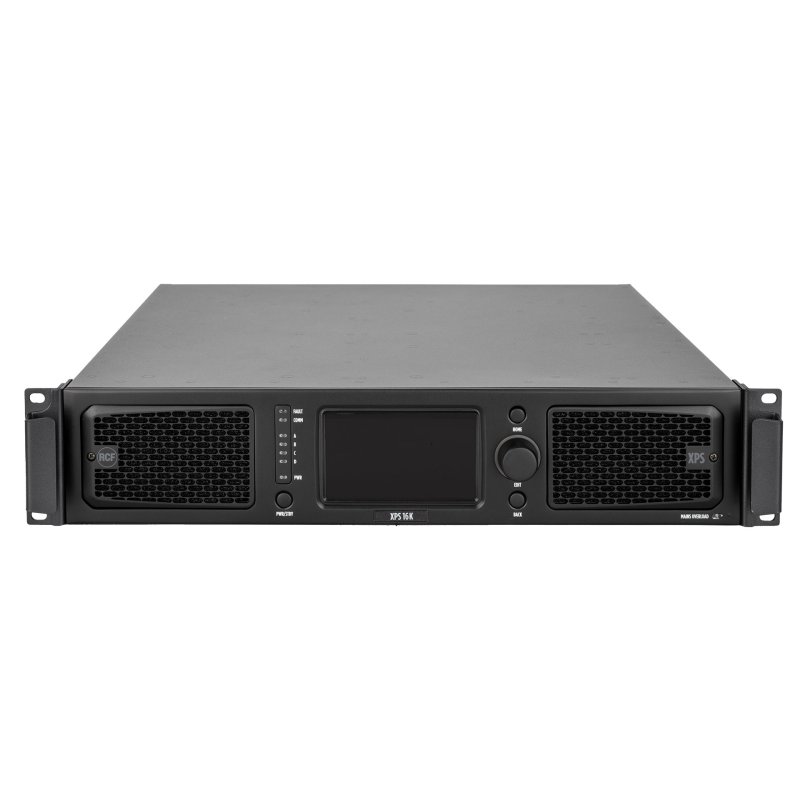

RCF XPS 16K 4 kanals DSP forstærker 4 x 4000 W, RDnet

RCF XPS 16k 4 kanals forstærker RDNet

XPS 16K er en firekanals effektforstærker med avanceret processorkraft og analoge/digitale routingmuligheder til både touring og installation. Med 4x4000 W klasse D kontinuerlig effekt ved 2,7 ohm, 40-bit floating-point processorkraft ved 96 kHz og 32-bit intern routing, pakker XPS 16K ekstrem effekttæthed i et 2U-kabinet.

XPS er designet til både touring og installationsbaserede lydsystemer og er beregnet til brug med højtydende højttalere.

Den tilbyder brugsklare konfigurationer og forudindstillinger.
Den kan også bruges i lineær tilstand med avancerede tuningfunktioner.
Hver udgang har: 4000 ms udgangsforsinkelse (1372 m / 4501 ft), EQ-filtre, delefiltre, FIR-filtre, multibåndskompressor, RMS-limiter og termisk limiter.
XPS leverer brugervenlig premiumlyd med fuld RDNet-fjernstyring, stor indbygget touch-grænseflade, exceptionelt signal/støjforhold, ultralav forvrængning og ekstremt dynamisk område.

FEATURES
16000 W Total Continuous Power
40-bit Floating-point Processing, up to 96 kHz
32-bit Fixed-point Internal Routing
FiRPHASE, Bass Motion Control, Bass Shaper
RDNet Networked Management

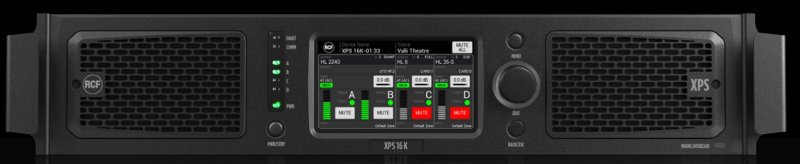

Touch 4.3" Color TFT Interface
Full On-board Processing with Delay, EQ, Comp/Limiter
On-board Speaker Presets Library

AMPLIFIER SPECIFICATIONS
Amplifier Class: D
Output power (EIAJ 8:32 all channels driven):
4 x 4000 W @ 2.7 ohm
4 x 2600 W @ 4 ohm
4 x 1400 W @ 8 ohm
Frequency Response (-3dB): 20 Hz ÷ 23000 Hz
SNR Analog inputs (unweighted): 111 dB
SNR Digital inputs (unweighted): 115 dB
Crosstalk: THD+N (20 Hz ÷ 20000 Hz,1000 W @ 4 ohm): Gain (linear mode @ 0 dB): 32 dB
Damping factor (@ 4 ohm, 20 Hz ÷ 1500 Hz): >95
Max burst length (@ 50 Hz, CF = 7 dB, 4 ohm, 1% THD+N): 200 ms

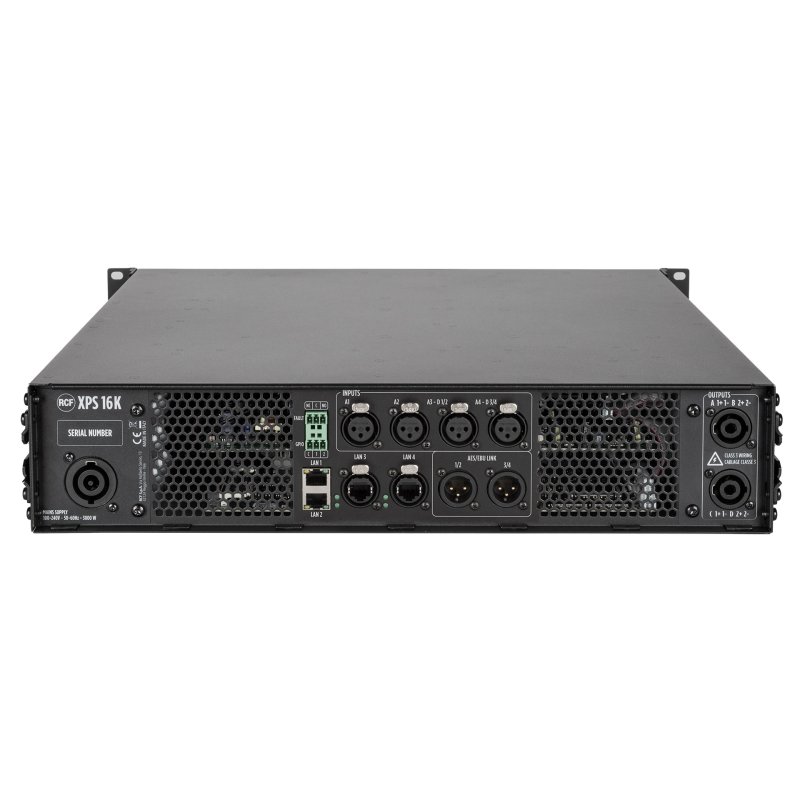

INPUT SECTION
Total number of inputs: 8
Line inputs: 4
Line connectors: XLR
Digital inputs: 4
Digital connectors: XLR
Digital type: AES/EBU
General Purpose Inputs (GPI): 2
Programmable GPI: Yes
Photo-coupled GPI: 2

OUTPUT SECTION
Signal output number: 4
Signal output connectors: XLR
Power output connectors: Speakon
General Purpose Outputs (GPO): 3
Programmable GPO: Yes

PROCESSING
DSP:
2 SHARC, 40-bit floating point, 96 kHz
2 ADAU 1442, 32-bit fixed point, 96 kHz
EQ Filters:
Peaking | HI/LO-shelving | HI/LO-pass (Butterworth, Linkwitz-Riley, Bessel)
Advanced algorithms:
FiRPHASE technology | BASS shaper | aircompensation | mid-low correction |
d river excursion control | dynamic PEQ |multi-band compressor | pilot tone det ection | backup recovery strategy | impedance load measurement
Compressors:
RMS limiter | dynamic compressor | power limiter | thermal compressor
Delay: 0 ÷ 4000 ms (each channel)
Tone controls: Yes
High-pass filter: 10 Hz ÷ 1000 Hz
Crossover: 2500 ÷ 3500 Hz
Automatic gain control: Yes

CONFIGURATION AND CONTROL
Configuration:
Front panel touch screen, PC Software
Network: Gigabit ethernet
RCF speakers presets: Yes
Priority: Yes
Protocols for system integration: Proprietary OSC based protocol, Q-SYS
RDNet: Yes

PROTECTIONS
Cooling: Forced
Short circuit: Yes
Thermal: Yes
DC: Yes
Fuses: Yes
VHF (Very High Frequencies): Yes

OPERATING CONDITIONS
Temperature range - Continuous operation:
-5°C ÷ +40°C / +23°F ÷ +104°F
Temperature range - Reduced output power:
-5°C to +50°C / +23°F to +122°F
Fan noise idle Fan noise max
POWER REQUIREMENT
Operating voltage: 90-240 V~ 50/60Hz
Nominal current AC @ 100-120 V: 30 A
Nominal current AC @ 220-240 V: 16 A
Stand by power consumption: 20 W
Idle power consumption: 90 W
Power consumption (MAX): 5800 W
Main fuse: Internal

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Metal
Handles: 2 metal handles for rack mount
Color: Black - RAL 9005
Rack mounting: 19", 2U

SIZE
Height: 88.7 mm / 3.49 inches
Width: 482 mm / 18.98 inches
Depth: 482.4 mm / 18.99 inches
Weight: 15 kg / 33.07 lbs

Størrelse

Vægt:	15 kg
Bredde:	482 mm
Dybde:	482,4 mm
Højde:	88,7 mm

Forsendelsesinformation

Pakke Bredde:	580 mm
Pakke Dybde:	600 mm
Pakke højde:	150 mm
Pakke Vægt:	18 kg
