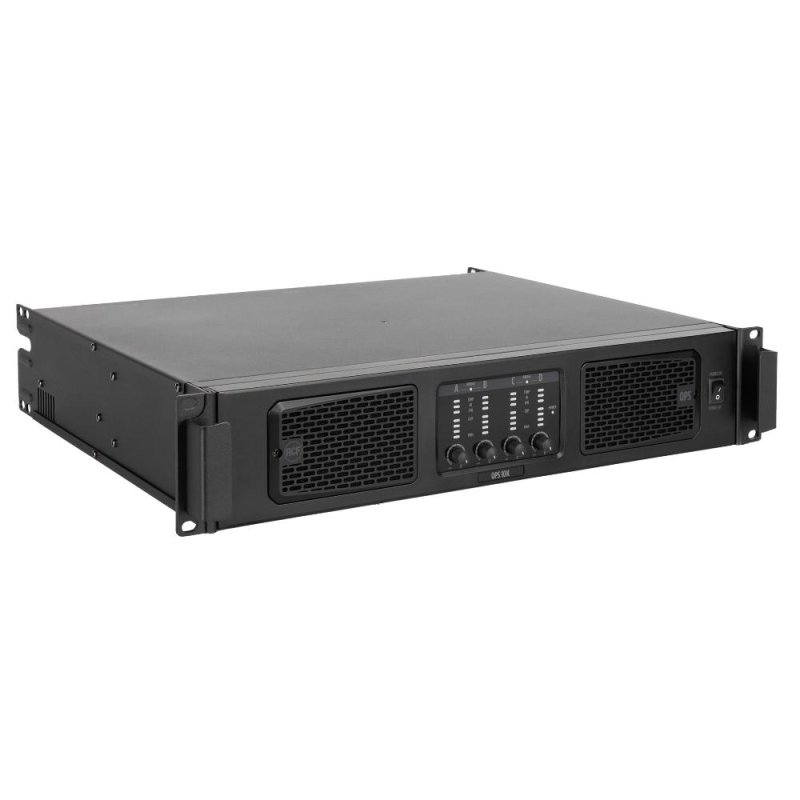

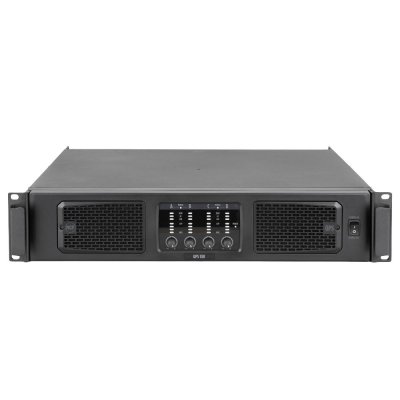

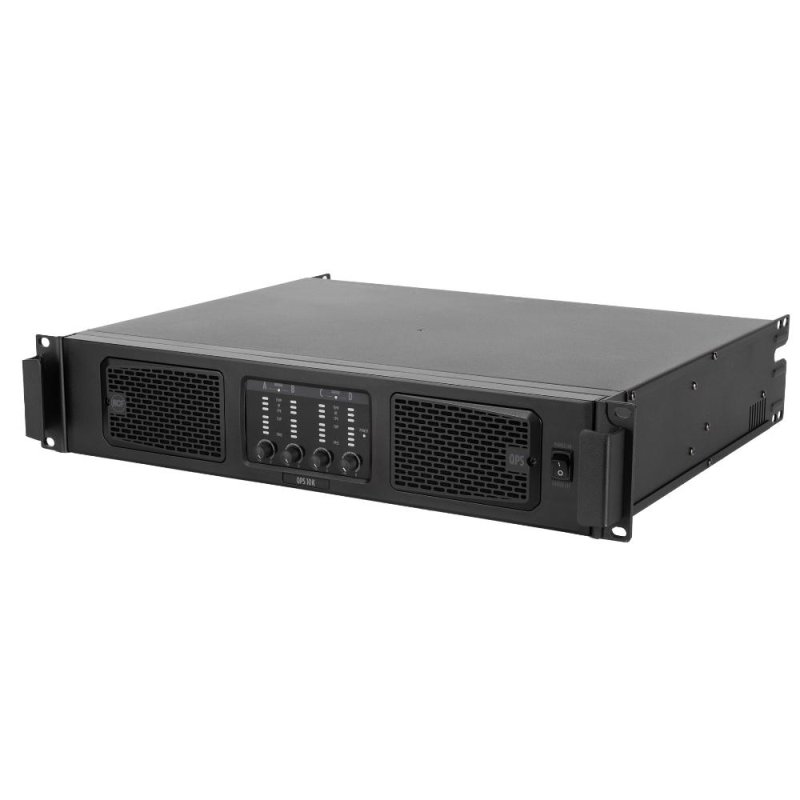

RCF Forstærker QPS 6.0 k 6000 W 4 x 1500 W 2 Ohm

QPS 6.0K 4 kanals professionel forstærker

QPS-serien er en serie af fire-kanals professionelle forstærkere, der kombinerer højkvalitets ydeevne og pålidelighed med de nyeste effektforstærkningsteknologier.
Dette højværdidesign tilbyder, i kompakt 2-rack enhedsplads, lydkvaliteten og holdbarheden af klasse HD-forstærkere med innovationen af de nyeste strømenheder til rådighed.

QPS 6.0K er en 4-kanals effektforstærker, der leverer op til 4 x 1.500 W @ 2 Ohm.

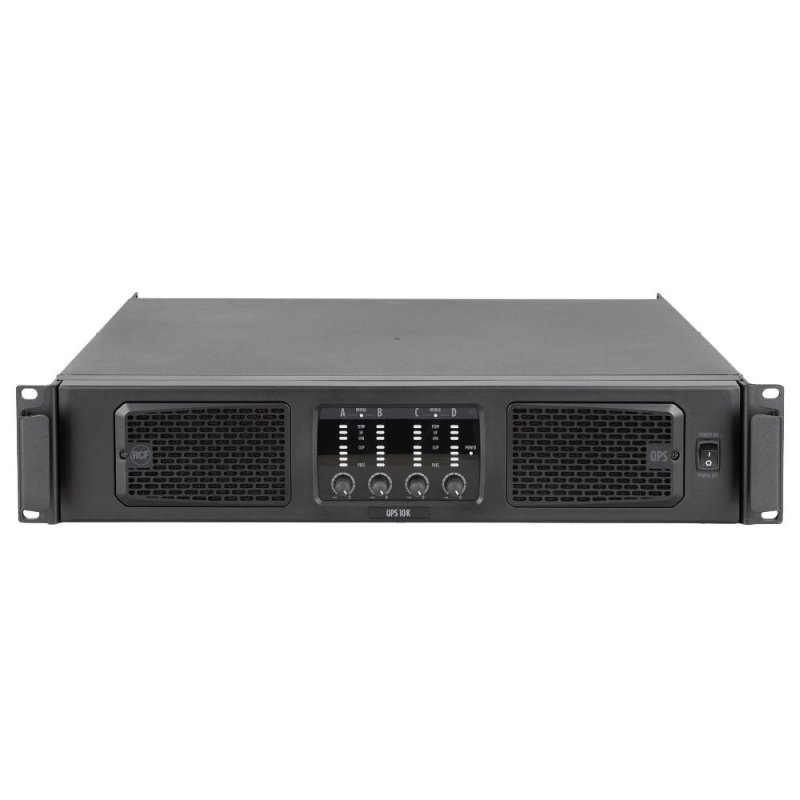

Den har uafhængig forstærkningskontrol, signal-/klip- og fejlindikatorer, kanal A og C XLR-udgangslink, parallel-/brotilstande og speakON-udgangsstik.
Desuden er den beskyttet mod kortslutninger og åbne kredsløb.
Takket være dets højeffektive køleplader og ventilatorer med variabel hastighed kan QPS 6.0K modstå de mest ekstreme varmeforhold, hvilket sikrer pålidelighed.

4 x 1,500 W class HD power amplifier
Fast response and low distortion
Stereo, parallel and bridge modes
Comprehensive protection circuits
Variable speed cooling
Signal, clip, fault led indicators
XLR inputs and speakON outputs
Limiter on each channel
20 ÷ 20000 Hz frequency range

HD Designed Driving Power
Our HD amplifier technology features a very efficient power output section with a design focused on musicality, maintaining a natural and clear sound at all frequencies, with smooth highs and a tight, high impact low end. The power supply rails continuously track the input signal for remarkable signal purity while preserving the high efficiency of the Class-D design. QPS amplifiers are bridgeable and maintain high reliability with complex loads as low as 2 Ohms nominal.

Remarkable Audio Performance
With a very high signal-to-noise ratio, QPS amplifiers also boast a very low total harmonic distortion, making it perfect for highly demanding music applications hence delivering perfect vocal intelligibility.

Self-protecting Architecture
QPS amplifiers implement several safety strategies protecting both the amplifier and the sound system, including an effective peak limiting protection for the transducers. The temperature-controlled continuous variable speed double-fan system (front to back), combined with the high-efficiency heat sinks, allows the amplifier to maintain a safe, working temperature no matter the environmental temperature or the power output. The circuit is protected from overheating and short circuits, also including protections against infrasonic DC and Very High Frequency (VHF) peaks from non-musical signals that could damage transducers.

AMPLIFIER SPECIFICATIONS
Amplifier Class: HD

Output power:
4 x 1500 W @ 2 ohm
4 x 1300 W @ 4 ohm
4 x 700 W @ 8 ohm
2 x 3000 W @ 4 ohm (bridge)
2 x 2600 W @ 8 ohm (bridge)

Frequency Response (-3dB): 20 Hz ÷ 20000 Hz
SNR Analog inputs ("A" weighted): >110 dB
Crosstalk: Distortion (THD+N) @ 1 kHz nominal power:
INPUT SECTION
Total number of inputs: 4
Balanced: 4
Mono: 4
Line inputs: 4
Line connectors: XLR

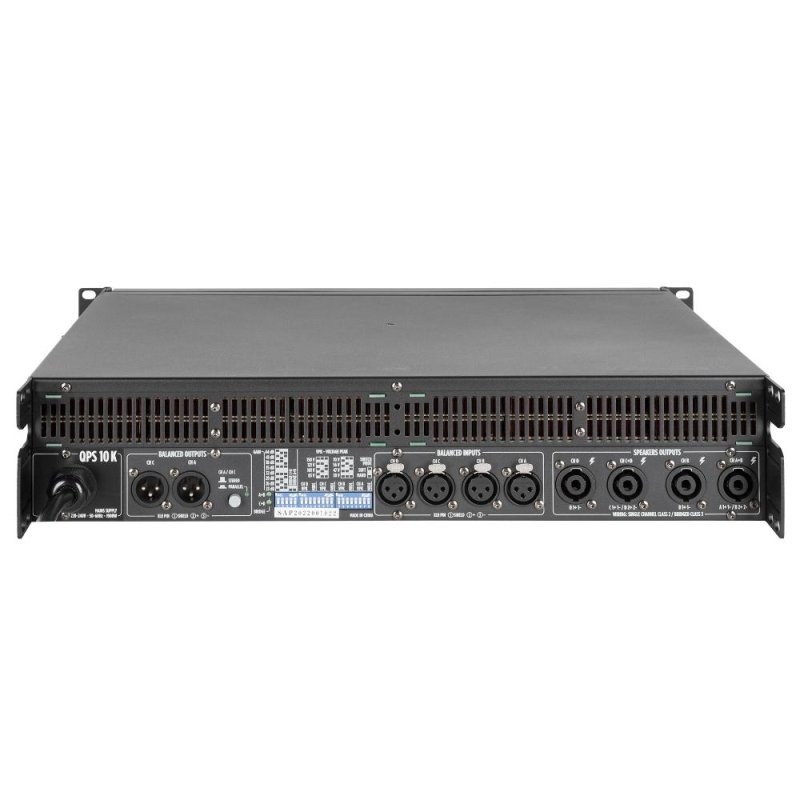

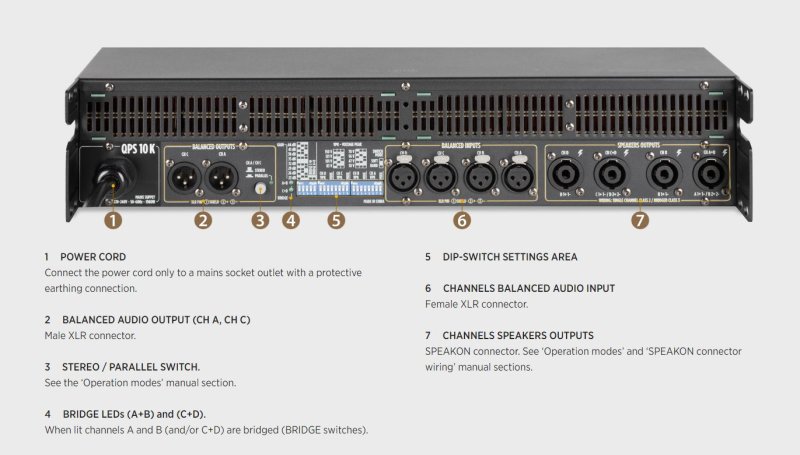

OUTPUT SECTION
Signal output number: 2
Signal output connectors: XLR
Power output connectors: Speakon

CONFIGURATION AND CONTROL
Configuration: DIP switch, Front panel

PROTECTIONS
Cooling: Forced
Short circuit: Yes
Thermal: Yes
DC: Yes
Fuses: Yes
VHF (Very High Frequencies): Yes

POWER REQUIREMENT
Operating voltage: 220-240/115 V~ 50/60Hz
Power consumption (MAX): 1400 W
STANDARD COMPLIANCE
Safety agency: CE compliant

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Metal
Handles: Metal handles included in the front panel
Color: Black - RAL 9005
Rack mounting: 19", 2U

SIZE
Height: 88 mm / 3.46 inches
Width: 483 mm / 19.02 inches
Depth: 399 mm / 15.71 inches
Weight: 13.7 kg / 30.2 lbs

SHIPPING INFORMATION
Package Height: 150 mm / 5.91 inches
Package Width: 572 mm / 22.52 inches
Package Depth: 570 mm / 22.44 inches
Package Weight: 15 kg / 33.07 lbs

Størrelse

Bredde:	48,2
Dybde:	25,5
Højde:	8,8
