RCF mixer forstærker 4 bus input 2 x 160 w

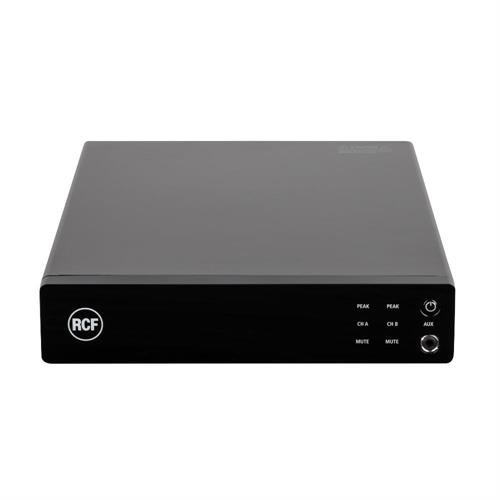

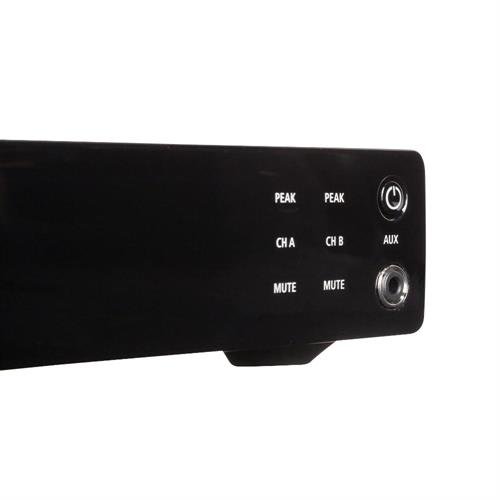

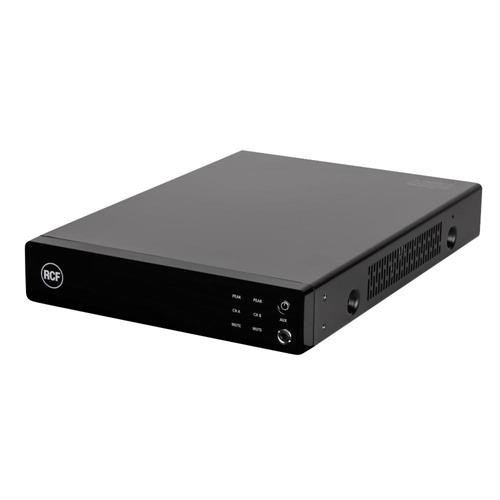

DMA-162P RCF mixer forstærker

DMA 162 er en to-kanals Class-D matrixforstærker udstyret med en kraftfuld DSP platform, der tillader styring af input og output med hensyn til routing og udligning.
Et komplet sæt behandlingsfunktioner er tilgængeligt, inklusive forudindstillinger til RCF-højttalere, proprietær basforstærkeralgoritme, FIR-filtre og equlaizer.
Takket være dens ekstremt kompakte størrelse, præcise design og robusthed er den ideel til en bred vifte af forretningsmusikapplikationer.

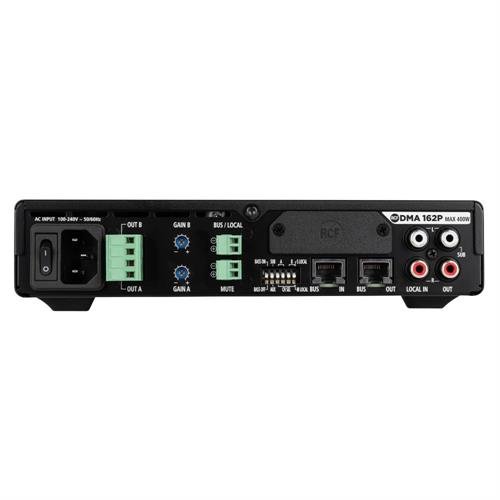

Inputs
1 x 4 CHANNELS BUS (RJ 45)
1 x LINE STEREO (RCA)
alternative to AUX IN on the front panel

Outputs (signal)
1 x 4 CHANNELS AUDIO BUS (RJ 45)
1 x STEREO LINE/SUB (RCA)

Controls
POWER OUTPUTS GAINS
1 x REMOTE MUTE CONTACT
1 x BUS/LOCAL IN SELECTION CONTACT
1 x RDNet IN/OUT (optional board)


2 x 160 W Class-D power amplifier
20 ÷ 20000 Hz frequency range
Full on-board processing
RCF speakers’ presets
Proprietary bass enhancer algorithm
FiRPHASE linear phase filters
Flexible and scalable multi-room architecture
Suitable for desktop or rack installation
RDNet ready for networked management
Remote controls and paging console accessories

AMPLIFIER SPECIFICATIONS
Amplifier Class: D
Number of channels: 2
Output power @ 4 ohm (W): 160 W RMS
Output power bridged @ 4 ohm (W): 320 W RMS
Output power @ 100 V (W): 320 W RMS
Frequency Response (-3dB): 20 Hz ÷ 20000 Hz
Signal/noise rate ("A" weighted) >93 dB
Distortion (THD+N) @ 1 kHz nominal power:

INPUT SECTION
Total number of inputs: 6
Balanced: 4
Unbalanced: 2
Mono: 4
Stereo: 2
Line inputs: 6
Line connectors: Picoflex, RCA, RJ45
General Purpose Inputs (GPI): 2

OUTPUT SECTION
Signal output number: 1
Signal output connectors: RCA
Power output connectors: Euroblock

PROCESSING
DSP: Yes
EQ Filters: Yes
FIR: Yes
Compressors: Yes
Tone controls: Yes
High-pass filter: 80 Hz ÷ 200 Hz

CONFIGURATION AND CONTROL
Configuration: Front panel, PC Software
Protocols for system integration: Proprietary
RDNet: Ready

PROTECTIONS
Cooling: Forced
Short circuit: Yes
Thermal: Yes
DC: Yes
Fuses: Yes
VHF (Very High Frequencies): Yes

OWER REQUIREMENT
Operating voltage: 90-240 V~ 50/60Hz
Power consumption (MAX): 400 W

Cabinet/Case Material: Metal
Color: Black
Rack mounting: 1/2 19", 1U , Optional rack mounting accessory required

SIZE
Height: 44 mm / 1.73 inches
Width: 213 mm / 8.39 inches
Depth: 314 mm / 12.36 inches
Weight 1.7 kg / 3.75 lbs

Akustiske specifikationer

Effekt:	2 x 160 Watt
Frekvensrespons:	20 Hz ÷ 20000 Hz

Størrelse

Vægt:	1,65 kg
Bredde:	213 mm
Dybde:	314 mm
Højde:	44 mm

Forsendelsesinformation

Pakke Bredde:	360 mm
Pakke Dybde:	381 mm
Pakke højde:	106 mm
Pakke Vægt:	2,65 kg
