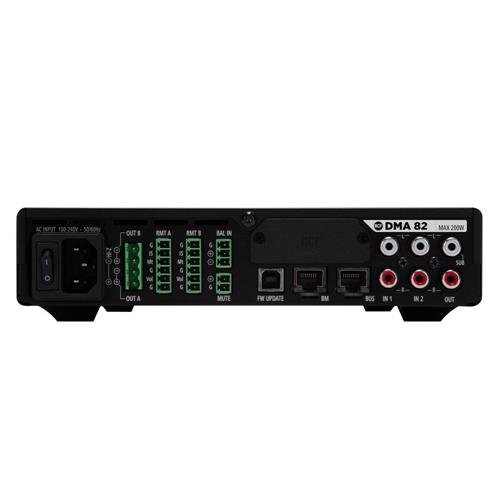

RCF mixer forstærker 2 line, 1 Mic input 2 x 80 W

DMA-82 RCF mixer forstærker

2 kanals class-D 2 x 80 w 4 Ohm matrix mixer med DSP

Inputs
2 x LINE STEREO( RCA)
(1 alternative to AUX IN on the front panel)
1 x MIC/LINE balanced (removable terminal)
1 x PAGING (RJ 45)

Outputs (signal)
1 x STEREO LINE/SUB (RCA)
1 x 4 CHANNELS AUDIO BUS (RJ 45)

Controls
1 x REMOTE MUTE CONTACT
2 x WALL MOUNT REMOTE CONTROLS
1 x CTRL + FIRMWARE UPDATE USB PORT

2 x 80 W Class-D power amplifier
20 ÷ 20000 Hz frequency range
Full on-board processing
RCF speakers presets
Proprietary bass enhancer algorithm
FiRPHASE linear phase filters
Flexible and scalable multi-room architecture
Suitable for desktop or rack installation
RDNet ready for networked management
Remote controls and paging console accessories

DMA 82 is a two-channel class-D matrix amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization (a complete set of processing functions is available, including PEQ, FIR filters, bass enhancement, limiters, compressors and environmental equalization); mor
It can distribute 4 audio channels to DMA 162P units through an analogue audio BUS, combining a flexible and scalable multi-room architecture with an easy connection and installation.

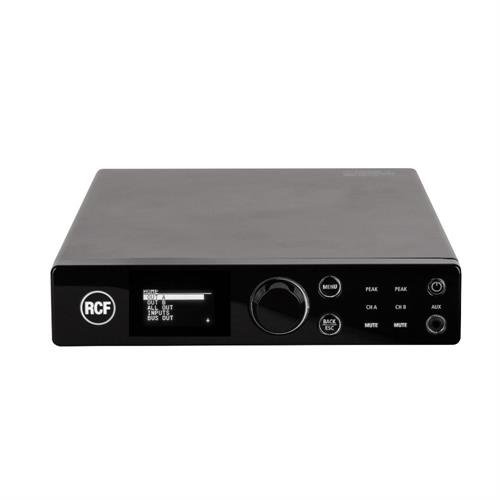

Its configuration is simple and user friendly and can be carried out through either its front panel controls (with OLED display) or RDNet. Thanks to its installation flexibility, accurate design, and robustness, it is ideal for a wide range of business music and installed sound applications.

Amplifier Class: D
Output power (all channels driven):
2 x 80 W @ 4 ohm
2 x 80 W @ 8 ohm
1 x 160 W @ 4 ohm (bridge)
1 x 160 W @ 8 ohm (bridge)
Output power @ 70 V:
1 x 160 W @ 70 V
Frequency Response (-3dB): 20 Hz ÷ 20000 Hz
SNR Analog inputs ("A" weighted): >93 dB
Distortion (THD+N) @ 1 kHz nominal power: <0.01 %

otal number of inputs: 5
Balanced: 2
Unbalanced: 3
Mono: 2
Stereo: 3
VOX: Yes
Line inputs: 3
Line connectors: JACK, Picoflex, RCA
Mic+Line inputs:
1
Mic+Line connectors:
Euroblock
VOX:
Yes
Paging inputs:
1
Paging connectors:
RJ45
Paging command:
Contact
General Purpose Inputs (GPI):
1

Akustiske specifikationer

Effekt:	2 x 80 Watt
Frekvensrespons:	20 ÷ 20000 Hz

Tilslutninger

In-put:	2 x stereo line / 1 x Mic/line / 1 x RJ45

Størrelse

Vægt:	1,75 kg
Bredde:	213 mm
Dybde:	314 mm
Højde:	44 mm

Forsendelsesinformation

Pakke Bredde:	360 mm
Pakke Dybde:	381 mm
Pakke højde:	106 mm
Pakke Vægt:	2,7
