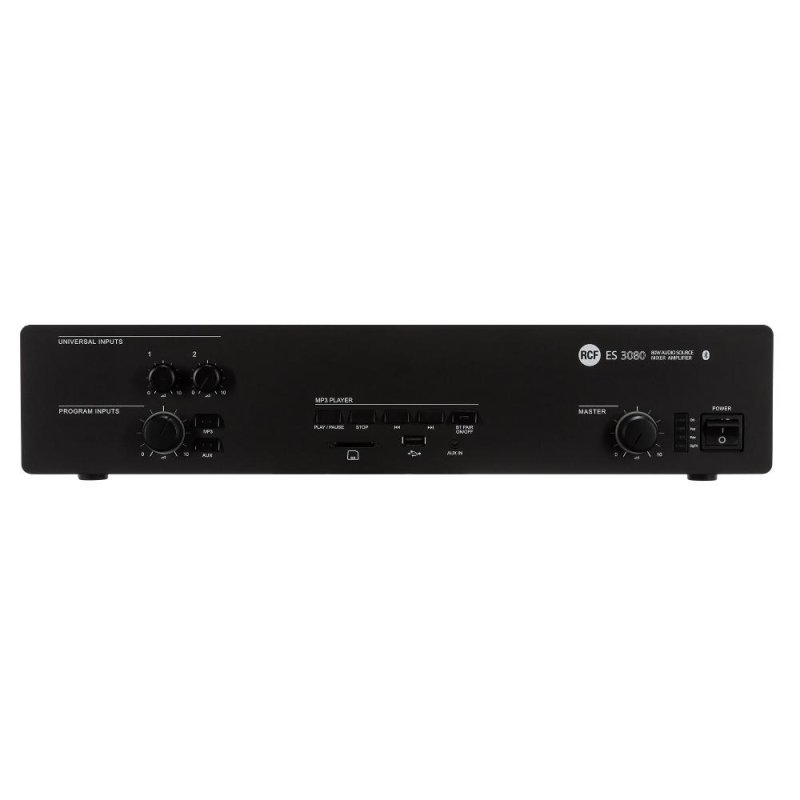

RCF zonemixer forstærker 80W m/ Bluetooth og MP3 player, 100Volt

5.910,00 DKK (inkl. moms)
ES3080 er en 80W mixer-forstærker med en MP3-afspiller tilgængelig på frontpanelet. Den kan læse USB-sticks, SD-kort, har et AUX-input med 3,5 mm jack og Bluetooth-teknology til at forbinde eksterne kilder.
Model/Varenr.: RCF-ES3080
EAN-nummer.: 8024530012717
Leverandør varenr.: 12135107
Lagerstatus:På lager - kan sendes i dag
Favoritliste
Inkl. moms

Beskrivelse

RCF ES3080 mixer forstærker med Bluetooth USB player

ES3080 er en 80W mixer-forstærker med en MP3-afspiller tilgængelig på frontpanelet.
Den kan læse USB-sticks, SD-kort, har et AUX-input med 3,5 mm jack og Bluetooth-teknology til at forbinde eksterne kilder.
Den har også 2 mic-line lyd-inputs med aftagelige stik (det første input har en XLR-fatning). Input 2 har en RJ45-port til hurtig forbindelse med en BM3001 paging-mikrofon (via et CAT5-kabel).
Forstærkerens output er tilgængeligt for lavimpedanshøjttalere (min.4 Ohm), eller en 100 - 70V konstant spændings-line (til højttalere med 100 - 70V transformere). Input 1 har et signal-detektionskredsløb ('VOX') til automatisk prioritet. Inputs 1 og 2 har adgang til prioritet via en ekstern kommando (forbind med enten det aftagelige stik, eller RJ45-porten). MUSIC ON HOLD-output'et sender det interne MP3-afspillersignal direkte til flere forstærkere, mixere, telefonsystemer ('music on hold'-funktionen), etc. PRE OUT-output'et sender signalet til flere forstærkere. 2 mic-line inputs har et high-pass filter (med en on/off dip-switch) som forøger taleforståelighed.

Audio source with 80W power amplifier
MP3 player controlled from the front panel
MP3 inputs: USB flash, SD card, AUX jack 3.5mm
Bluetooth connection with external devices.
2 universal inputs on removable screw-terminals and 1 AUX input
Configurable priority settings, VOX facility on input 1
Auxiliary output MUSIC ON HOLD to send the audio signal to external amplifiers or telephone switchboards
PRE OUT connector for additional power amplifiers
HI-PASS control (inputs 1 and 2)
Auxiliary input on RCA connector and MP3 player equipped with independent tone controls (bass and treble) and gain

ES 3080 is an 80 W mixer-amplifier with a MP3 player directly accessible on the front panel. It can read USB sticks, SD cards, has an auxiliary input port with 3.5mm jack and Bluetooth technology for the connection with external sources.
Moreover, it offers 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket). Input 2 also has an RJ 45 port for quick connection of an RCF BM 3001 paging microphone (through CAT5 cable).
The amplifier output is available either for low impedance speakers (min. 4 Ohm) or 100 - 70 V constant voltage line (for speakers having 100 - 70 V transformers).
Input 1 has a signal detection circuit ('VOX') for automatic priority. Inputs 1 and 2 can access the priority through an external command (connected to either the removable connector or the RJ 45 port).
The MUSIC ON HOLD output directly sends the internal MP3 player signal to additional amplifiers, mixers, phone systems ('music on hold' function), etc. The PRE OUT output sends the signal (the same routed to the internal amplifier) to additional amplifiers.
The 2 mic-line inputs have a high-pass filter (with a common on/off dip-switch) that are useful to improve speech intelligibility.
The internal MP3 player and the AUX INPUT have tone controls (common for both). Front panel LEDs indicate the device state (ON, PROT), priority circuit enabled (PRIOR) and the signal level / peak (SIG/PK).


Power output: 80 W rms
Frequency Response: 50 Hz ÷ 16 kHz
Distortion: Signal/noise rate: (Inputs 1, 2) > 60 dB;(AUX) > 80 dB;
Crosstalk: (Inputs 1, 2) > 60 dB;(AUX) > 80 dB;
Phantom Power: 30 V dc
Input sensitivity MIC: - 62 dBu
Input sensitivity LINE: - 29 dBu
Input sensitivity AUX: - 18 ÷ + 20 dBu
Input impedance MIC: 10 kOhm
Input impedance LINE: 10 kOhm
Input impedance AUX: 20 kOhm
Bass Tone: -9 ÷ + 6 dB @ 100 Hz dB
Treble Tone: -14 ÷ + 8 dB @ 10 kHz dB
High-pass filter: 150 Hz
Phantom power voltage/current: 32 / 0.018 V/A
Output Loudspeaker Low impedance: 4 Ohm
Output Loudspeaker Constant voltage: 100 V ; 70 V
Protections: Overload, short circuit, thermal
Operating voltage: 115-230V ~ 50 / 60Hz V ~ Hz
Power (consumption): 160 W

Specifikationer

Akustiske specifikationer

Effekt: 2 x 80 W
Frekvensrespons: 50 Hz ÷ 16 Hz
Impedance: 4 Ohm / 100 Volt

Tilslutninger

In-put: 4 line mono + 1 stereo line line og 2 Mic-line
Out-put: 2 RCA stereo
Bluetooth: Ja

Information

Størrelse: 2 unit

Størrelse

Diameter: 3,9 kg
Bredde: 442 mm
Dybde: 230 mm
Højde: 88 mm

Forsendelsesinformation

Pakke Bredde: 330 mm
Pakke Dybde: 500 mm
Pakke højde: 200 mm
Pakke Vægt: 5,4 kg
