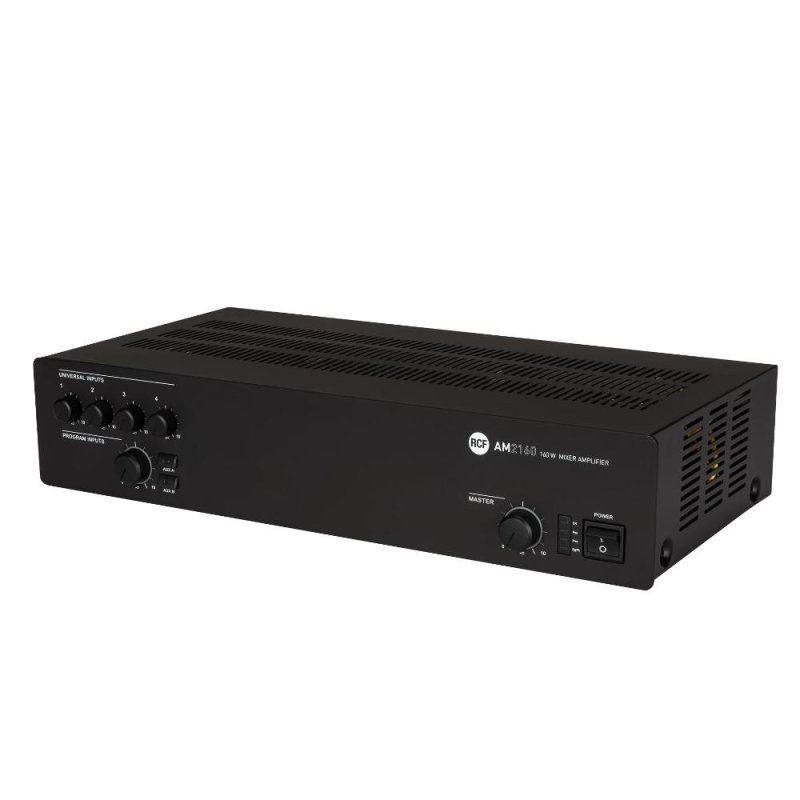

RCF Zonemixer forstærker AM2160, 1 zone 160W

5.920,00 DKK (inkl. moms)
AM2160 er en mixer-forstærker med 4 mic-line lyd-inputs, med aftagelige stik (det første input har også en XLR-fatning) og 2 AUX-input til musikkilder (CD-afspillere, tunere, etc.).
Model/Varenr.: RCF-AM2160
EAN-nummer.: 8024530006396
Leverandør varenr.: 12135058
Lagerstatus:På lager - kan sendes i dag
Favoritliste
Inkl. moms

Beskrivelse

RCF AM2160 4+2 input mixer og forstærker 160W, 4mic/line

AM2160 er en mixer-forstærker med 4 mic-line lyd-inputs, med aftagelige stik (det første input har også en XLR-fatning) og 2 AUX-input til musikkilder (CD-afspillere, tunere, etc.). Forstærkerens nominale kraft er 160W. Output'et er tilgængeligt for lavimpedanshøjttalere, eller 100 - 70V konstante spændings-lines.

Rackbeslag til 19" rack montering medfølger

Full digital technology Mixer Amplifier 160 W RMS
100 V - 70 V and 4 Ohm outputs
4 universal inputs with phantom facility on screw terminal connections
Presence Control and per-channel High-Pass filters
XLR connector on input 1
RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
Configurable Priority settings, VOX facility on input 1
Selectable aux inputs with two keys on the front panel for music source
Aux inputs with volume and tone controls
Music On Hold and PRE outputs

Power output: 160 W rms
Frequency Response: 50 Hz ÷ 18 kHz
Distortion: Signal/noise rate: (MIC) > 60 dB; (AUX) > 80 dB
Crosstalk: (MIC) > 60 dB; (AUX) > 80 dB
Phantom Power: 32 V dc

Amplifier specifications
Amplifier Class D
Output Power 1 x 160 W @ 4 ohm
Frequency Response (-3dB) 50 Hz ÷ 14 Hz
Distortion (THD+N) @ 1 kHz nominal power <0.3 %

Input section
Total number of inputs 8
Balanced 7
Unbalanced 2
Mono 7
Stereo 2
Line inputs 2
Line connectors RCA
Mic+Line inputs 4
Mic+Line connectors Euroblock, XLR
Mic+Line Phantom 32 V DC
VOX Yes
Paging inputs 2
Paging connectors RJ45
Paging command Contact
General Purpose Inputs (GPI) 2

Output section
Signal output number 2
Signal output connectors RCA
Power output connectors Euroblock

Processing
Tone controls Yes
High-pass filter 150 Hz
Configuration and control Configuration DIP switch,
Front panel Priority Yes
Music on hold Yes
Chime tone Yes

Specifikationer

Akustiske specifikationer

Effekt: 160 Watt RMS
Frekvensrespons: 50 Hz ÷ 18 kHz

Tilslutninger

In-put: 4 universal inputs
Out-put: 100 V - 70 V and 4 Ohm outputs

Størrelse

Vægt: 5,4 kg
Bredde: 442 mm
Dybde: 230 mm
Højde: 88 mm - 2 unit

Forsendelsesinformation

Pakke Bredde: 500 mm
Pakke Dybde: 330 mm
Pakke højde: 200 mm
Pakke Vægt: 6,45 kg
