Audac Zonemixer og forstærker 40W - 1 zone

Audac Zonemixer og forstærker 40W - 1 zone

1.650,00 DKK (inkl. moms)
COM104 er en paging-forstærker med en kraft på op til 40 Watt. Den indeholder 2 ubalancerede stereo line level inputs og et Mikrofon level input.
Model/Varenr.: AU-COM104
EAN-nummer.: 5414795041318
Leverandør varenr.: COM104
Lagerstatus: Ikke på lager - Forhør om leveringstid
Favoritliste
Inkl. moms

Beskrivelse

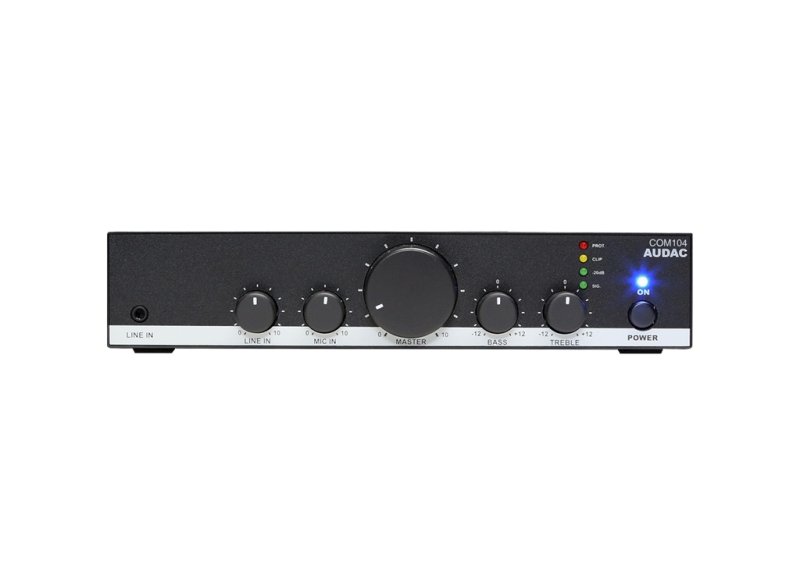

Audac COM104 Zonemixer og forstærker 40W 100V/70V/4 Ohm - 1 zone

COM104 er en paging-forstærker med en kraft på op til 40 Watt. Den indeholder 2 ubalancerede stereo line level inputs og et Mikrofon level input.

The COM104 is a compact but versatile public address mixing amplifier which offers solutions for small to medium size audio systems in commercial installations. Typical application are background music systems in retail stores, bars, restaurants and office buildings.
The compact and simple design allows installation in any location and operation through any possible user.
The amplifier is designed using Class-D amplifier technology and delivers an output power of 40 Watt to constant voltage (100V and 70V) or low impedance (4 Ohm) audio systems. A switch mode power supply allows compatibility with a wide variation of mains voltages for global compatibility.

A stereo line input allows connection for a wide variation of audio sources such as media players, radio tuners, internet audio players, ... and many more. A balanced mic / line input allows connection for an announcement microphone with compatibility for condenser microphones using the integrated phantom power supply (15V). A priority switch overrides the background music when enabled, and compatibility with voice file players is guaranteed by the wide gain adjustment possibility (0 dB - +50 dB).
The COM108 is a table-top standing device, while rack mounting in 10.5" or 19" equipment racks is possible using an optionally available mounting set (MBS310).


System specifications
Signal / Noise > 90 dB
THD+N (@ 1 kHz) Crosstalk (@ 1 kHz) > 70 dB
Technology Class-D
Inputs Priority mute contact
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
RMS Power @ 4 Ω 1 x 40 W
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply Switching mode
Outputs Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance 100/ 70 V / 4 Ω
Protection Amplifier DC Short circuit
Over heating
Over load
Signal limiting
Inputs Balanced Microphone Sensitivity (1W/1m) -0 dB ~ +50 dB
Connector 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Type 1 x Balanced Microphone
Unbalanced Stereo Type 1 x Stereo Unbalanced Line
Connector RCA
Sensitivity (1W/1m) -4 dB ~ +20 dB
Power Supply Operating 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Balanced Microphone Phantom Power 15 V DC

Dimensions 217.5 x 43.7 x 300 mm (W x H x D)
Weight 3 kg
Mounting 1/2 19” / 1 HE or tabletop
Construction Steel
Colours Black


Specifikationer

Størrelse

Vægt: 3
Bredde: 21,7
Dybde: 30
Højde: 4,37

Forsendelsesinformation

Pakke Bredde: 21,7
Pakke Dybde: 30
Pakke højde: 4,37
