Vissonic analog mikrofon array, standalone XLR

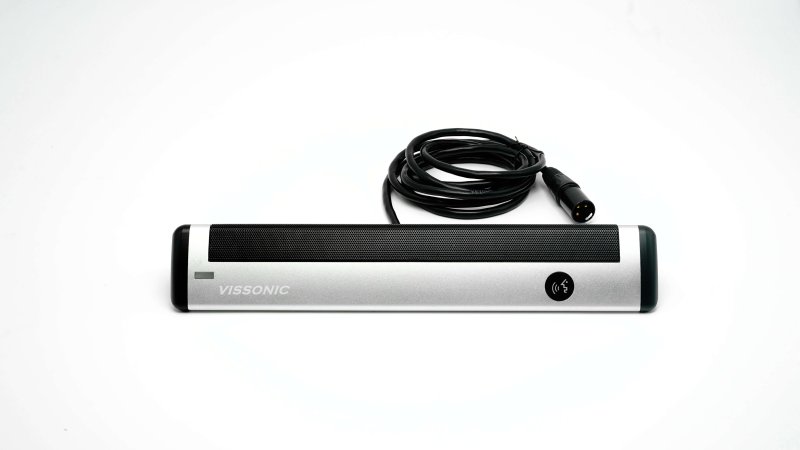

Vissonic Analog Array mikrofon PTA-T

Array-mikrofonen giver et lydopsamlingsområde af korridortypen, som er meget forbedret i forhold til "hjertetype"-pegeegenskaberne for svanehalsmikrofonen, så højttaleren kan bevæge sig i et bredere område, mens lydkvaliteten og lydstyrken ikke er påvirket. Array-mikrofonen kan tilsluttes ethvert analogt enhedssystem (såsom dB-NET DSP-lydmatrix, digitalt automatisk mixersystem, mixer osv.) til Plug and Play

The SONICON series array microphones designed by VISSONIC adopt the ARRA-TechTM array microphone technology independently developed.
The sound pickup distance is not less than 80CM.
The corridor-type directional characteristics increase the acoustic transmission gain.
The use of hidden microphones makes the conference room cleaner.
The array microphone maintains a clear and stable pickup function, increasing the speaker's range of activity.

* Unique modern design with touch button.
* Using the self-developed ARRA-TechTM array microphone technology,
* The pickup distance is 60~80CM. The establishment of a personal pick-up sound area, whether the speaker is standing, backward or sideways, provide freely speaking experience.
* With no goose neck design, speakers and attendees can communicate without hindrance and the speaker also has a better visual effect.
* The hidden adjustable gain knob can quickly set up the whole system according to the field sound amplification conditions.
* 2m audio cable with XLR male connector for extending to the VISSONIC dB-NET series DSP audio matrix or any mixer system.

Microphone .............................. Microphone Array
Polar pattern .............................. Corridor
Control ..............................Touch button for on/off
Frequency response ..............................30 - 18,000 Hz
Optimal distance of the speaker ..............................60 - 80 cm
Open circuit voltage at 1 kHz ..............................approx. 200 mV/Pa
Output level with selector ..............................0dB,-5dB,-10dB or -20dB
Nominal impedance .............................. 200 Ohm
Load impedance .............................. > 1 kOhm
S/N ratio rel. to 1 Pa ..............................60 dB
T.H.D .............................. Voltage supply .............................. Phantom powering 48 V ±4 V to 6.8 kOhm
supply impedance 24 V ±4 V to 1.2 kOhm supply impedance
Power consumption ..............................11 mA*
Connection .............................. 3 pins XLR
