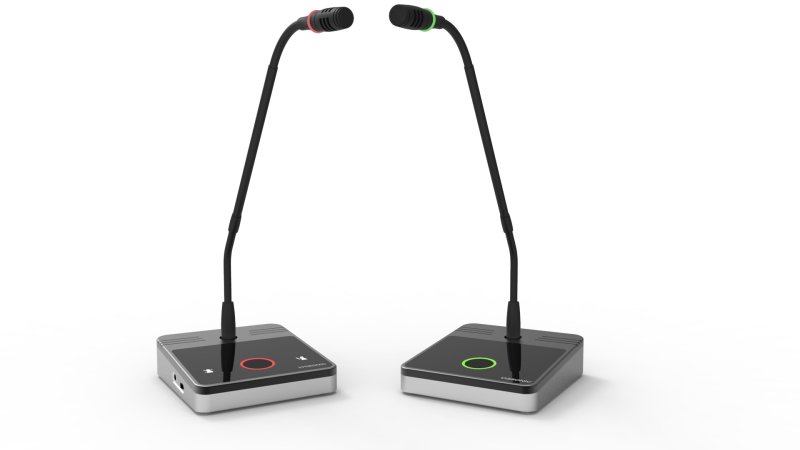

Vissonic digital mødeleder bordbase m/tuch on-off

VIS-DEC-T Digital konference mødeleder mikrofon med tuch on/off
Bordbase uden svanehals mikrofon

Digital Conference system Wired Discussion Chairman/Delegate Unit

* Stylish, low profile design with touchable interface
* Standard CAT5e and RJ45 connectors are used in CLASSIC-D series to provide more convenient on project and maintenance.
* The connection of MIC units are either hiding underneath or from the rear of the unit, makes it convenient for different request of installation,
* Internal high fidelity loudspeaker
* Head-set socket with volume adjust
* The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.

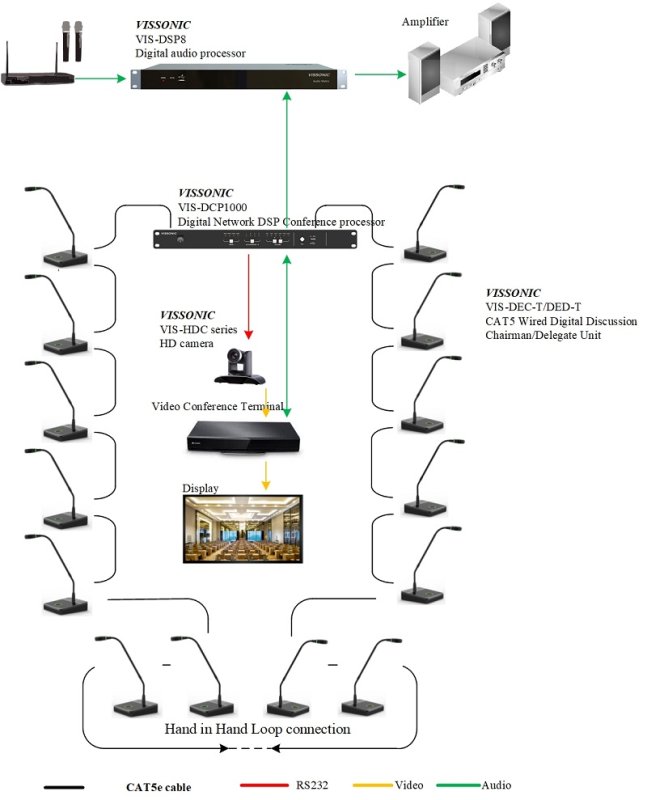

* Strong system robust by the "Hand-in-Hand-Loop-Network" connection method.

The CLASSIC-D series is the product developed by our R&D people over 10 years experience in conference system. Scratch-resistant back-lit glass control panel is unique in design. CAT5 cable port is popular for its lots of advantages. Special loop ring connection methods promise the reliability and robust of our system is not affected by any broken units during conference.

Small and exquisite but powerful, that's what we deliver to you

Item Model for Order
VIS-DEC-T..................CAT5 Wired Digital Discussion Chairman Unit
VIS-DED-T..................CAT5 Wired Digital Discussion Delegate Unit
VIS-M220..................220mm gooseneck microphone (black), equipped with windproof sponge cover (need to configure VIS-DCP2000-R host)
VIS-M330............ 330mm gooseneck microphone (black) with windproof sponge cover
VIS-M410..................410mm double gooseneck microphone (black) with windproof sponge cover
VIS-M485..................485mm gooseneck microphone (black) with windproof sponge cover
VIS-M600..................600mm gooseneck microphone (black) with windproof sponge cover

* Compliance with IEC 60914, GBT 15381-94




* The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.
* One CAT5e cable to transmit 64 channel audio and other signals
* High fidelity sound by zero loss audio transmit technology, 48K audio sampling frequency, 20Hz~20KHz response frequency
* "Hand-in-Hand-Loop-Network" connection makes the system always working perfectly no matter changing discussion unit or having any malfunctioned units
* This system automatically assigned to each unit independently ID to avoid duplicate ID conflict
* The microphone sensitivity of each unit and 16 level equalizer EQ can be adjusted independently
* Work with DCP2000 main unit with the 8-level equalizer EQ to achieve sound or the whole conference field adjustment, limiter to prevent the sound suddenly become loud or low; noise gate of human voice can be identified; support AGC(Automatic Gain Control)/AFC(Adaptive Feedback Cancellation)/ANC(Active Noise Control )/Mix (Auto-Mix) technology
* Hot-swap for any system unit, and the controller has auto-recovery function
* Precise directional microphone head with anti-wind microphone foam cover, with two-color LED indicator
* Button for MIC ON/OFF, Priority & Apply Answer button for chairman unit
* Built-in high fidelity speakers, it automatically mutes to prevent howling when press MIC ON
* Head-set interface in both sides with volume adjust

*Camera auto-tracking function
* Without using PC software, our conference controller still owns following settings:
Limit on the number of speaking persons: By Setting the number of active units at the same time (Number is 1/2/4/6 units)
Discussion modes
"OPEN" Free for all, limited by the active units setting by controller，"VOICE" Unit activated by voice, "FIFO" First in First out, "APPLY" To apply then to speak
Work with our HD camera and video matrix switcher, it apply camera auto tracking function

Technical Parameters

Button: Touchable interface, no physical buttons

Sound Pickup: heart type capacitance

Sensitivity: -46 dBV / Pa

Maximum power consumption: 2.0W

Directivity: 0 ° / 180 °> 20 dB (1 kHz)

Headphone load: 16Ohm

headphone volume: 10mW

Headphone jack: 3.5mm stereo

Input impedance: 2kOhm

Frequency response: 20 ~ 20000Hz

Connection: CAT5 / CAT6 cable + snap

Equivalent noise: 20dBA (SPL)

Main material: ABS

The maximum sound pressure: 125dB (THD
Weight: 1.1kg (with microphone)

Dimension: 118W × 138 L× 33H mm (without microphone)

Operating temperature: 0 C to + 55 C

Color: Black
