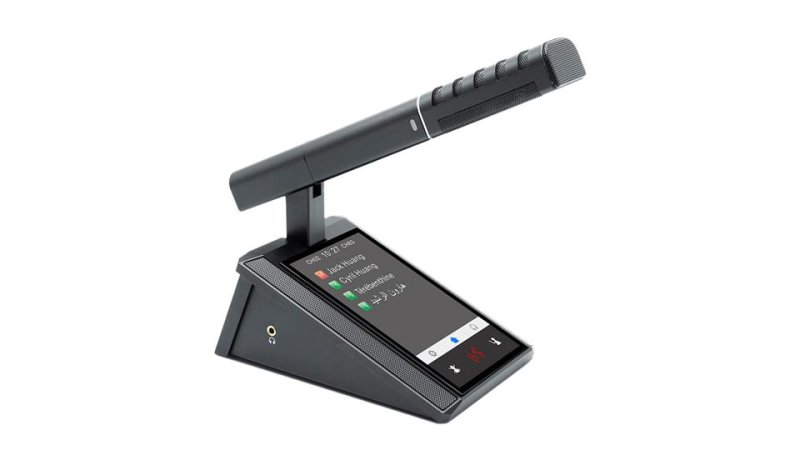

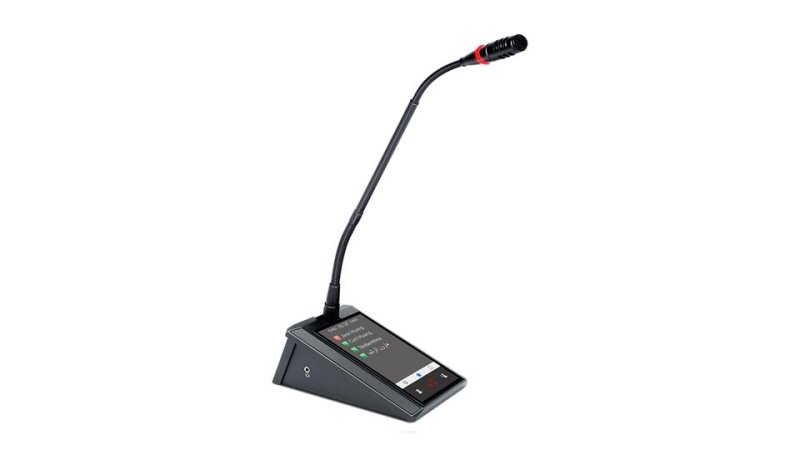

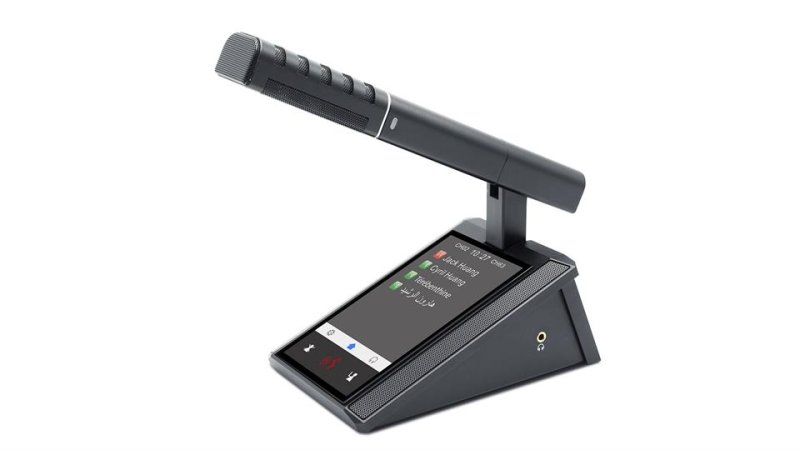

The VIS-DMD-T is a multimedia conference unit based on the VISSONIC AUDIOLINK multimedia IP network technology. It is equipped with a 5-inch IPS touch screen, which improves the flexibility of the conference and the interactivity of the meeting content.
This unit can set as chairman, delegate, VIP or dual-user unit according to the requirements of the conference. As the various requirements of meeting, it can upgrade the software to achieve more functions without changing unit or hardware.
The current software module contains five functions:
-Vote
-NFC card identification
-Simultaneous interpretation channel
-Dual user
By chairman unit, you can use the touch screen on the VIS-DMD-T unit to manage different aspects of the meeting. It allows you to start, pause meetings, view request-to-speak lists, approve request, view addresser profiles and speaking times, and even record meetings, easily start and stop voting etc.
By delegate unit, you can view the agenda and the remaining time to speak. You can even see who is speaking and the position you are on the speaking list.
Compatible with IEC 60914, GBT 15381-94 standard
The unique AUDIO-LINK digital network technology realizes full digital signal transmission and processing.
Single CAT5e cable transmits 64 channels of audio and various information.
High-fidelity sound quality, lossless audio transmission technology, 48K audio sampling frequency, 20Hz ~ 20KHz response frequency.
Conference controller can output 16 segment equalized EQ to achieve sound field adjustment; pressure limit, which can recognize the noise gate passed by human voice; AGC automatic volume gain control; AFC automatic feedback suppression and auto-mix technology.
5-inch capacitive touch screen and built-in NFC card reader can quickly identify participants
All-in-one touch screen conference unit, it can be configured as a chairman unit, delegate unit, VIP unit or dual delegate unit
Internal high-fidelity loudspeaker
Easily expand functions by setting software modules
Model for Order
VIS-DMD-T ............ Multimedia touch screen conference unit
VIS-DCP2000-D ..... Full Digital Network DSP Conference controller
VIS-MDA .......... Rectangular microphone, Digital + Analog output dual backup microphone
VIS-M220 ........ 220mm microphone (black) with anti-wind foam cover
VIS-M330 ........ 330mm microphone (black) with anti-wind foam cover
VIS-M410 .........410mm microphone (black) with anti-wind foam cover
VIS-M485 ........ 485mm microphone (black) with anti-wind foam cover
VIS-M600 ........ 600mm microphone (black) with anti-wind foam cover
Optional function license
VIS-LLGE ................... Dual 64-channel selector software module
VIS-LVOTE ................ Vote software module
VIS-LIDEN ................. NFC identification software module
VIS-LDUAL ................ Dual user software module
