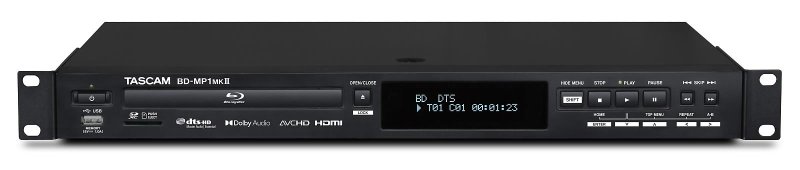

Tascam BD-MP1 Mk2 Blu Ray afspiller
Imponerende billedkvalitet, forbløffende lyd og Videoafspillernes arbejdshest
BD-MP1MKII er en robust multimedie-videoafspiller med enkelt rackplads til professionelle applikationer som permanent installation og touring.
Med udgangspunkt i succesen med Tascam BD-01U og BD-MP1 kan denne højopløselige afspilningsenhed styres via LAN, RS-232C og en trådløs fjernbetjening,
hvilket gør den til en ideel komponent i integrerede mediesystemer og en pålidelig videoafspiller til kommerciel AV, uddannelse, kirker, bestyrelseslokale eller live touring.
Afspilning fra en række medietyper
Den alsidige BD-MP1MKII kan automatisk afspille indhold i en lang række filformater via en hvilken som helst af de tre frontpanel-medieindgange, inklusive Blu-ray, DVD, CD, USB Flash-hukommelse og SD-kort.
BD-MP1MKII tilbyder enkeltkildeafspilning for en lang række medie- og filformater, og eliminerer behovet for diskrete lyd-/videoafspilningsenheder i en installation.
Dets omfattende udvalg af filformater inkluderer
videoformater som MPEG1, MPEG2, MPEG4 AVC, VC-1, AVCHD og WMV,
billedformater som JPEG, GIF og PNG samt
lydformater som LPCM, MP3, AAC og WMA.
Single-rackspace Blu-ray, DVD, CD and solid-state player
Controllable via Ethernet network (Telnet), RS-232C or wireless remote control
Plays video and audio material stored on following media:
BD25, BD50, BD-ROM, BD-R, BD-RE
DVD, DVD+R, DVD-R, DVD+RW, DVD-RW
CD, CD-R, CD-RW
SD cards (up to 512 GB)
USB flash media
Support for a wide range of file formats
NTSC/PAL conversion
BD-Live function
HDMI high-definition audio/video out, supports HDMI CEC which allows the connected display to be switched on/off in correct order
Separate 7.1 surround sound outputs
XLR balanced and RCA unbalanced stereo outputs
Up to 40 dB attenuation for analogue and digital stereo outputs
Coaxial digital audio output (SPDIF, Dolby, DTS)
Power-on play (start playback when power comes up)
Resume (continue after power cycle)
Repeat (chapter, title, A-B)
Instant replay (10 seconds)
Lock function (panel, tray, or IR remote)
On-screen information switchable on or off
Dimmable front-panel display
Firmware update via disc or USB memory

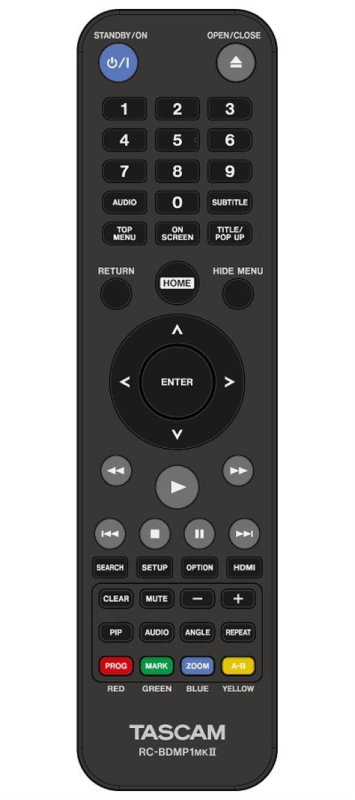

Infrared remote control included as standard
Media: Blu-ray
BD25, BD50, BD-ROM, BD-R (SL, DL), BD-RE (SL, DL) (Blu-ray 3D supported)
Disc formats: BDMV, BDAV
DVD: DVD, DVD+R (SL, DL), DVD-R (SL, DL), DVD+RW, DVD-RW
Disc formats: DVD-Video, DVD-VR, AVCHD
CD: CD-DA, CD-R, CD-RW
SD: SD card with up to 512 GB total capacity
Supported file systems: FAT16, FAT32, exFAT, NTFS
USB: USB flash drive (mass storage class) with up to 2 TB total capacity
Supported file systems: FAT16, FAT32, exFAT, NTFS
Supported file formats: Video
3GP, ASF, AVI, DAT, M2TS, MKV, MOV, MP4, MPG, OGM, RMVB, TP, TS, WMV
Audio: AAC, APE, FLAC, MP3, WAV, WMA
Still image: JPEG, GIF, PNG
Subtitles: SUB, ASS, IDX+SUB
Audio resolution: BD/DVD/USB/SD
Sampling frequency: 44.1/48/64/88.2/96/176.4/192 kHz
Bit width: 16/24 bit
CD
Sampling frequency: 44.1/48 kHz
Bit width: 16/24 bit
MP3/WMA
Sampling frequency: 32/44.1/48 kHz
Bit width: 16/24 bit
MP3 bit rate: 112-320 kbit/s
WMA bit rate: 48-192 kbit/s
Video resolutions :Auto, 480i/576i, 480p/576p, 720p, 1080p
Aspect ratios: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox
Colour systems: NTSC, PAL, Multi (if supported by TV)
HDMI colour space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)

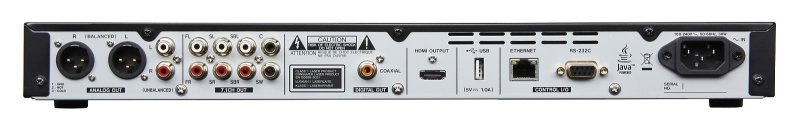

Analogue audio outputs: Balanced XLR-3-32 (1: GND, 2: HOT, 3: COLD)
Nominal output level: +4 dBu (1.23 Vrms)
Maximum output level: +20 dBu (7.75 Vrms)
Output impedance: 200 Ohm
Unbalanced: RCA pin jacks
Nominal output level: -10 dBV (0.316 Vrms)
Maximum output level: +6 dBV (2.0 Vrms)
Output impedance: 210 Ohm
7.18 × RCA pin jacks
Nominal output level: -10 dBV (0.316 Vrms)
Maximum output level: +6 dBV (2.0 Vrms)
Output impedance: 210 Ohm
Audio performance: 0 dBu 0.775 Vrms, 0 dBV 1 Vrms
Frequency response: 20 Hz - 20 kHz, ±0.5 dB
Signal-to-noise ratio: 96 dB (JEITA)
Total harmonic distortion: 0.03 % (1 kHZ, JEITA)
Dynamic range: 96 dB (JEITA)
Channel separation: 89 dB
JEITA: Compliant with JEITA CP-2150
Digital outputs:
HDMI output:19-pin HDMI, Type A
Coaxial audio output: RCA pin jack
Format: IEC 60958-3 (SPDIF)
Output impedance: 75 Ohm
Other inputs and outputs: RS-232 CD-sub 9-pin
Mode: Full duplex
Baud rate: 9600, 38400 bits/s (selectable)
Ethernet: RJ45
Supported standards: 10BASE-T, 100BASE-TX
Cable requirements: Category 5e or better
USB: USB A-type (1 × front, 1 × rear)
Protocol: USB 2.0 compliant
Rated supply voltage: DC 5 V, 1 A
Power supply and other specifications:
Power connector: IEC receptacle
Power requirements: AC 100-240 V, 50/60 Hz
Power consumption: 30 W (typical)< 0.5 W (standby)
Dimensions (W × H × D): 483 mm × 44 mm × 281 mm
Weight: 3 kg
Permissible operating temperature: 5-35 °C
Permissible operating humidity: 25-85 %, no condensation
Included accessories: IR remote control (RC-BDMP1), AC power cable, rack-mounting kit (4 screws, 4 washers), Owner's manual
