AudioPressBox audiosplit kuffert med 1 Dante 1 USB-c in og 16 mic/line og 4 USB c out

AudioPressBox 320 C-D-USB

Professionel bærbar, aktiv presseboks med 2 Analog Mic/Line-indgange, 1 Dante-indgang, 1 Digital USB-C-indgang og -udgang.

16 Analog XLR Mic/Line & 4 Digital USB-C udgange.
Hovetelefon out.

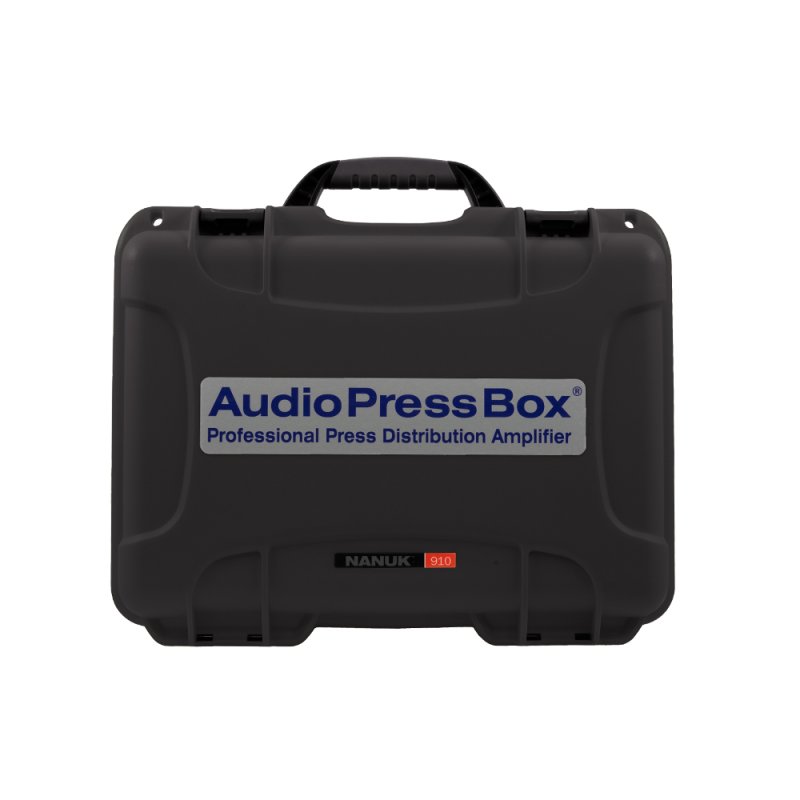

Den er velegnet til både indendørs og udendørs pressekonferencer på grund af den indbyggede genopladelige batteripakke og et kraftigt Nanuk etui.
USB-C tillader også en videokonference ind og ud tilslutning til en hybrid pressekonference.

2 Analog MIC (phantom power) / LINE inputs balanced with gain control and 26dB PAD
1 Channel DANTE Input - RJ45 ethercon
1 Digital USB-C input & output

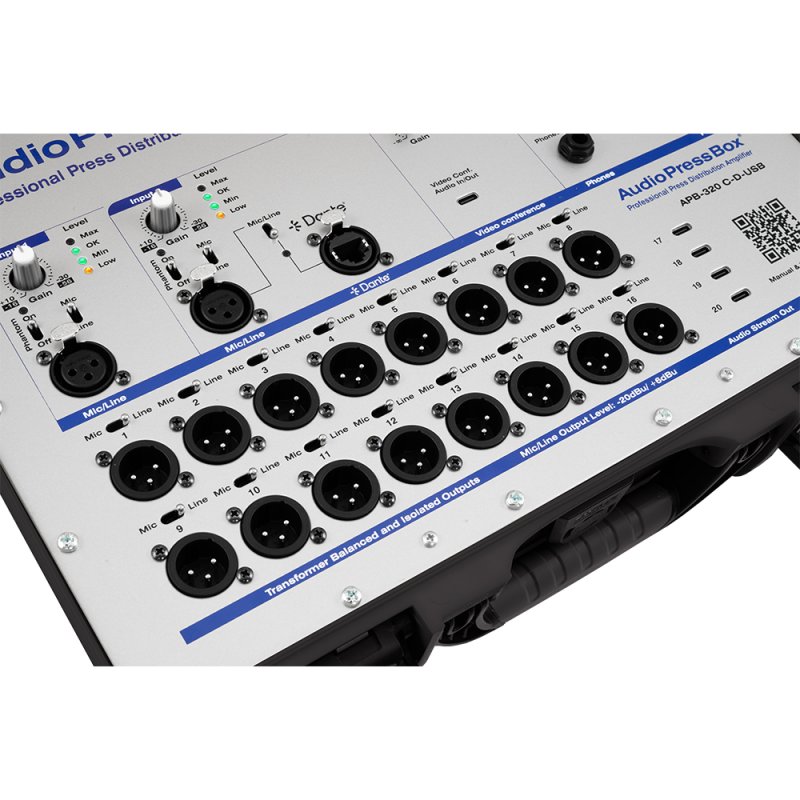

16 Analog XLR balanced and individually transformer isolated outputs
XLR outputs are switchable between MIC or LINE output level
4 Digital USB-C outputs
Built-in Compressor and Limiter for Analog (XLR) inputs
Phones out
Li-Ion AccuPack with microprocessor controlled battery management
20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
On unit printed QR code for online access to manual, user guide and video guide

Audio Press Box APB-320 C-D-USB
Type 3 in 20 out
Groups 1
Input section
Inputs 2 analog, 1 Dante, 1 USB-C
Analog Inputs
Input connectors Balanced, XLR
Input Gain Mic: +22/ +62dB Line: -4/ +36dB
Max. input level Mic: -10/ -30dBu Line: +36/ -4dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 kOhm Line: 3,5 kOhm
Digital Input/ Output
USB Input
Input connector USB Type C
Compliant USB Specificaion USB 2.0
Input Gain -/ +6 dB
Supported Sampling Rates 32kHz, 44.1kHz, 48kHz
Bit Depth 16-Bit
Interface Powering: Bus Powered*
Charging capability: No
Dante Input
Number of channels 1
Input connectors RJ45 - Dante
PoE Requirement No
Reference level -18dBFS
Output section
Analog Outputs
Headphone output JACK 6,3mm
Outputs 16 Analog with Line/ MIC level, 4 Digital
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load) +14dBu (600)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 120Hz to 30kHz/ -3dB
Digital Outputs
Output connector USB Type C
Compliant USB Specification USB 2.0
Supported Sampling Rates 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
Bit Depth: 16-Bit
Interface Powering: Bus powered*
Charging capability: No
Controls
Input section 26dB PAD, Input gain, Phantom, Analog/ Dante switch
Output section Phones level, Power switch, Output PAD
Indicators
Input section Phantom power, Input level, Dante Input
Power
Power Supply 24V DC, 1A external adaptor
Battery Li-Ion, 14,4V 2200mAh
Battery operation time up to 14 hours

Tilslutninger

In-put:	1 Dante, 2 XLR og 1 USB-c
Out-put:	16 Mic/Line 4 USB-c

Størrelse

Vægt:	5,0 kg
Bredde:	12 cm
Dybde:	30 cm
Højde:	37 cm
