RCF digital processor 4 in / 8 out

Beskrivelse

Specifikationer

Beskrivelse

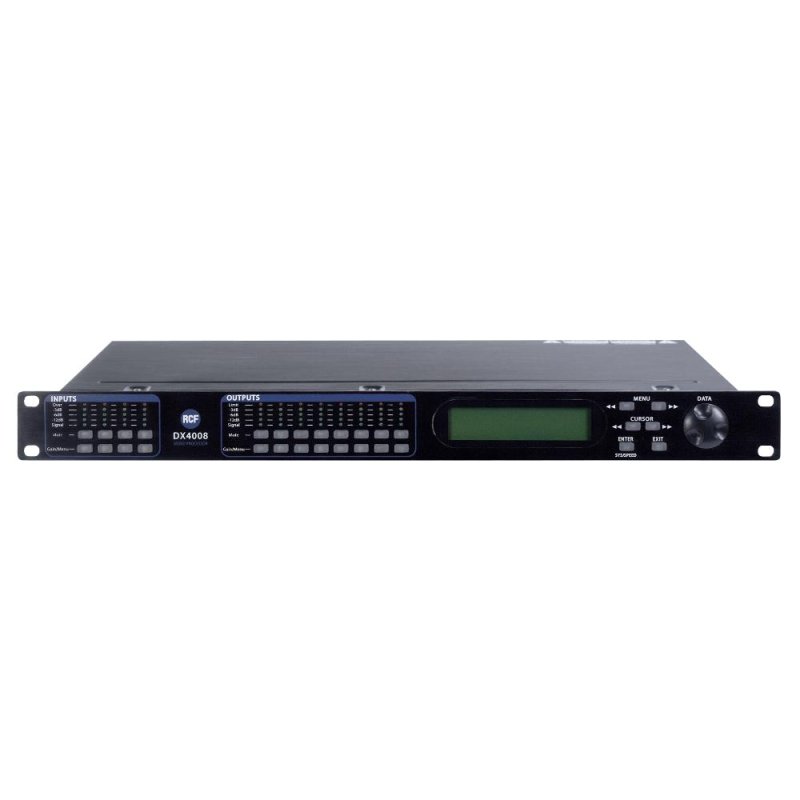

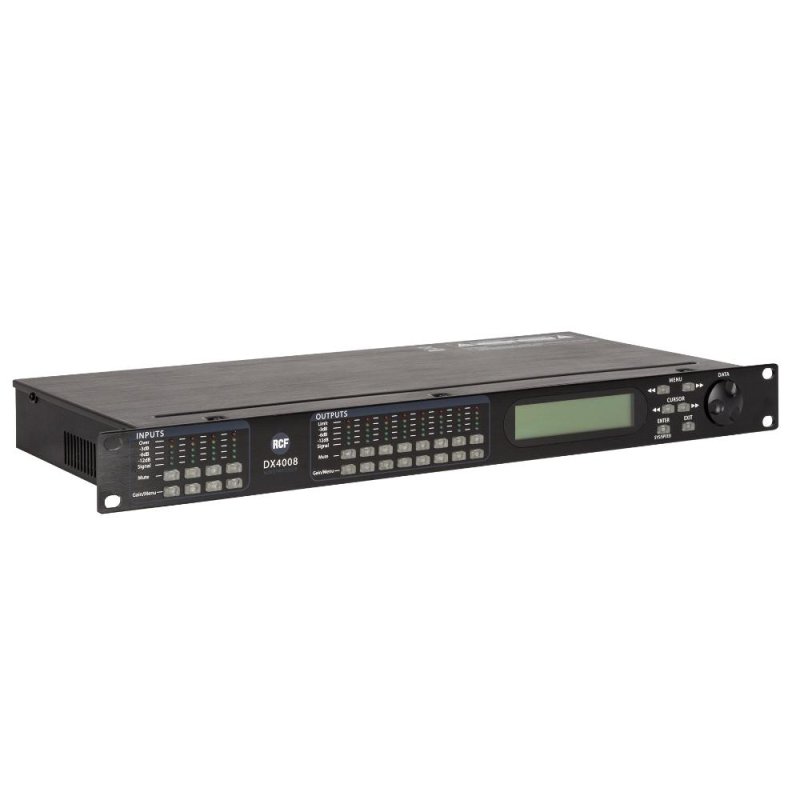

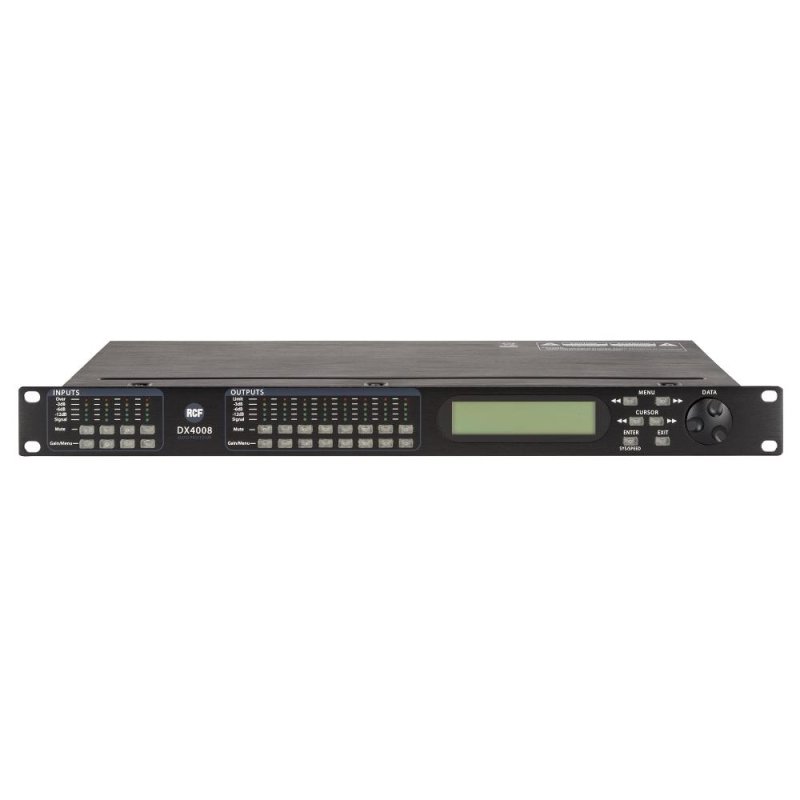

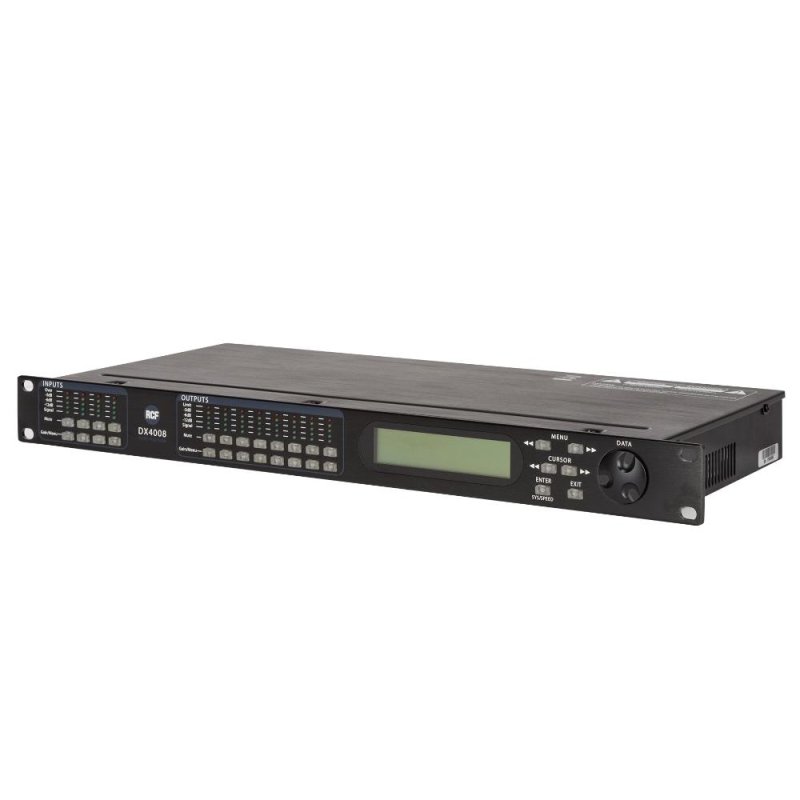

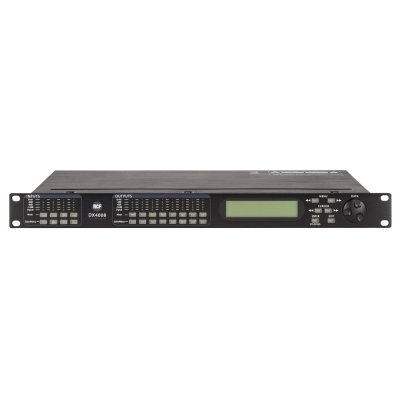

RCF DX4008 DSP 4 in / 8 out

The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets
Sampling rate can be set to 96kHz
Precise frequency control is achieved with its 1 Hz resolution
Inputs and outputs can be routed in multiple configuration to meet any requirements
The DX 4008 is shipped with a special PC Graphic User Interface (GUI) application - XLink
XLink gives the user an option to control the DX 4008 unit from a remote PC via the RS232 serial communication link
The GUI application makes much easier control and monitor the device, allowing the user to get the whole picture on one screen
Programs can be recalled and stored from/to PC's hard drive, thus expanding the storage to become virtuality limitless
The DX 4008 is a complete 4 input - 8 output digital loudspeaker management system designed for the touring or fixed sound installation markets. The absolute latest in available technology is utilized with 32-bit (40-bit extended) floating point processor and high performance 24-bit Analog Converters. The high-bit DSP prevents noise and distortion induced by truncation errors of the commonly used 24-bit fixed-point devices. A complete set of parameters include I/O levels, delay,polarity, 6 bands of parametric EQ per channel, multiple crossover selections and full function limiters. The DX 4008 can be controlled or configured in real time on the panel or with the intuitive PC GUI accessed via the RS 232 interface. Software upgrade for CPU and DSP via PC keeps the device current with newly developed algorithms and function once available. Multiple setup storage and system security complete this professional package.

AUDIO PERFORMANCE
Frequency Response (-3dB): 20 Hz ÷ 20 kHz
Crosstalk: Distortion (THD+N) @ 1 kHz nominal power: Dynamic range: >115 dB
Common Mode Rejection Ratio (50 Hz to 10 kHz): >60 dB

DIGITAL AUDIO PERFORMANCE
Resolution: 40
Sampling rate: 96
A/D - D/A converters: 24
Propagation delay: 3

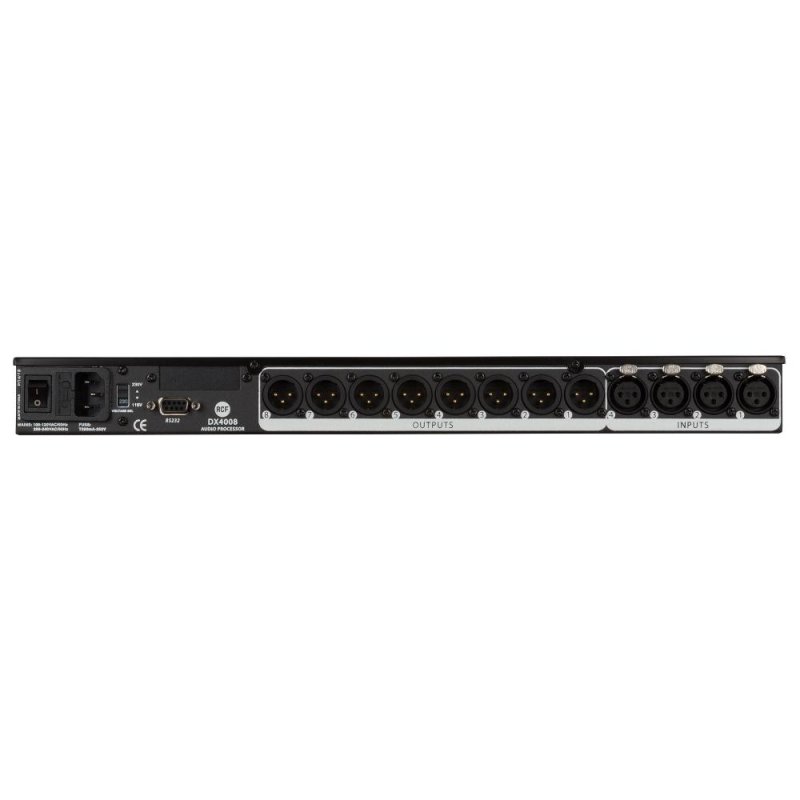

INPUT SECTION
Total number of inputs: 4
Balanced: 4
Mono: 4
Line inputs: 4
Line connectors: XLR

OUTPUT SECTION
Signal output number: 8
Signal output connectors: XLR

PROCESSING
DSP: Yes
EQ Filters: Yes
Delay: Yes
Tone controls: Yes
High-pass filter: 20 ÷ 20000 Hz
Crossover: 20 ÷ 20000 Hz

CONTROLS
Configuration: Front panel, PC Software
Number of programs/presets: 30
Protocols for system integration: ASCII

PROTECTIONS
Cooling: Convection
Fuses: Yes

POWER REQUIREMENT
Operating voltage: 220-240/115 V~ 50/60Hz
Voltage selection: External
Power consumption (MAX): 20 W

PHYSICAL SPECIFICATIONS
Cabinet/Case Material: Metal
Rack mounting: 19", 1U

SIZE
Height: 44 mm / 1.73 inches
Width: 483 mm / 19.02 inches
Depth: 203 mm / 7.99 inches
Weight: 2.96 kg / 6.53 lbs

SHIPPING INFORMATION
Package Height: 80 mm / 3.15 inches
Package Width: 615 mm / 24.21 inches
Package Depth: 360 mm / 14.17 inches
Package Weight: 4.36 kg / 9.61 lbs

Specifikationer

Størrelse

Vægt:	2,96 kg
Bredde:	483 mm
Dybde:	203 mm
Højde:	44 mm

Forsendelsesinformation

Pakke Bredde:	615 mm
Pakke Dybde:	360 mm
Pakke højde:	80 mm
Pakke Vægt:	4,36 kg
