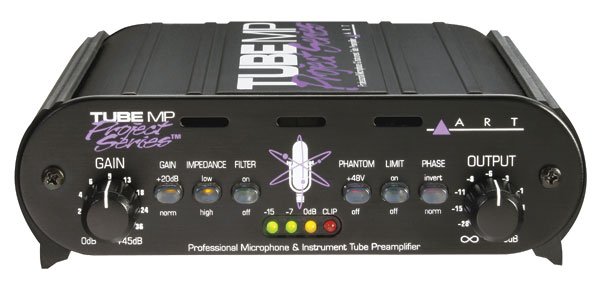

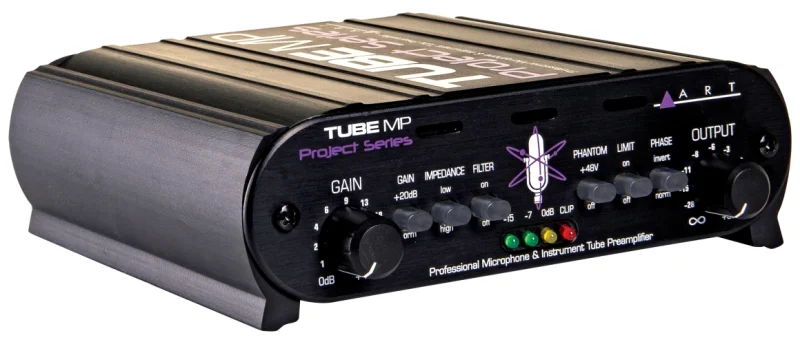

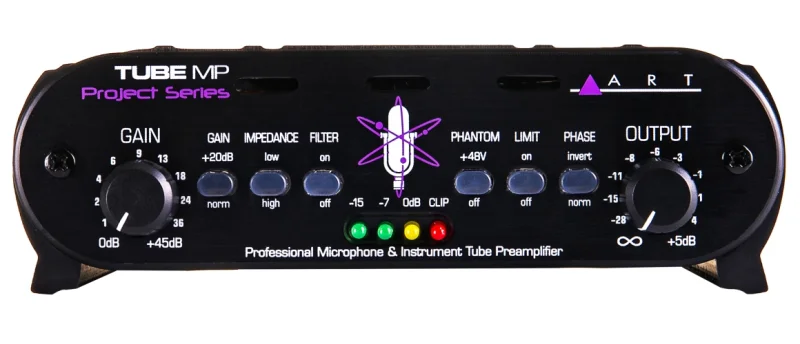

ART Tube MP Projekt serie

ART TUBEMPPSCE Tube MP Projekt serie

Tube MP Project-serien er en professionel interface af høj kvalitet som forbinder mikrofon, instrument og line level-signaler til en mixer, eller andre lyd-input. Den tilbyder en aluminums-chassis, præcisions LED-level målingskredsløb, op til 70 dB musikalsk gain og high-output signal-drive. En ikke-inkluderet ART SM1-stander er til montering af Tube MP Project-serien til enhver mikrofon.

Extremely Low Noise Discrete Front End
Up to 70dB of Clean, "Musical" Gain
High Output Signal Drive Capability
Fast FET Limiter to Prevent Overload
Switch Selectable Input Impedance
Precision LED Metering
Built-in Low Noise Phantom Power Supply
Compact, Stackable all Aluminum Chassis
XLR and 1/4" Inputs and Outputs
Phase Invert Switch
High Cut Filter Switch
Variable Input and Output Controls

Frequency Response: 10Hz to 40kHz, +/-1 dB (typical)
Total Harmonic Distortion: CMRR: > 60dB (typical)
Dynamic Range: > 100dB (20Hz to 20kHz)
Equivalent Input Noise: Input Impedance: Switchable, 4.7k Ohm; / 600 Ohm; (XLR)

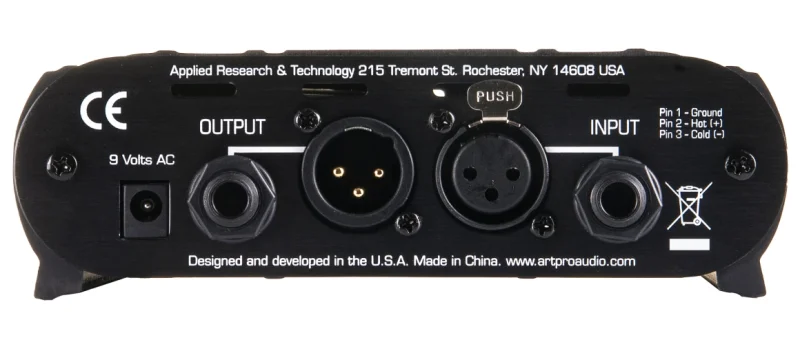

Input/Output Connections: Input: 1/4" TRS unbalanced (1meg Ohm), XLR female balanced. Output: 1/4" TRS unbalanced (600 Ohm), XLR male balanced (Maximum Gain: 70dB (XLR - XLR), +50dB (1/4" - XLR)
Input Gain: Pad Switchable, 20dB
Maximum Input Level: +17dBu (1/4"), +16dBu (XLR)
Maximum Output Level: +20dBu (1/4"), +26dBu (XLR)
Low Cut Filter: Switchable, -3dB @ 40Hz
Output Phase: Switchable, Normal/Invert
Output Limiter Type: Switchable, Fast & Musical FET Limiter, > 20dB limit range
Phantom Power: Switchable, +48V DC, filtered, current limited
Signal Metering: Precice LED array with a fast attack and moderate release
Chassis Type: Aluminum Anodized with integral/stackable rubber sides
Power Requirements: 10VAC @ 700mA (typ)
Tube Type: 12AX7A hand selected
Dimensions(W x H x D): 150 x 44.5 x 165 mm
Weight: 1.14 kg

Information

Type:	Forforstærker
