AudioPress Box stageboks 2 line/mic og 1 USB-c in - 16 XLR og 4 USB-c out

AudioPressBox APB-320 C-USB

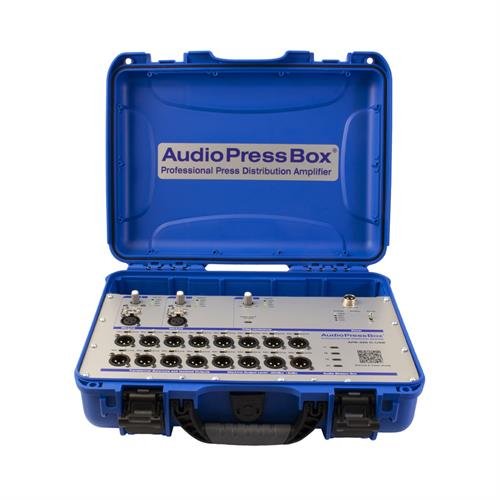

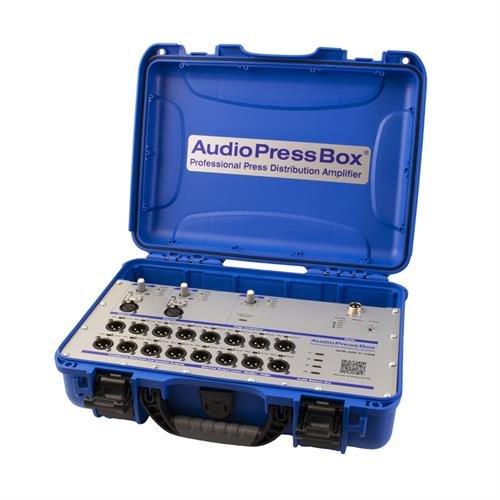

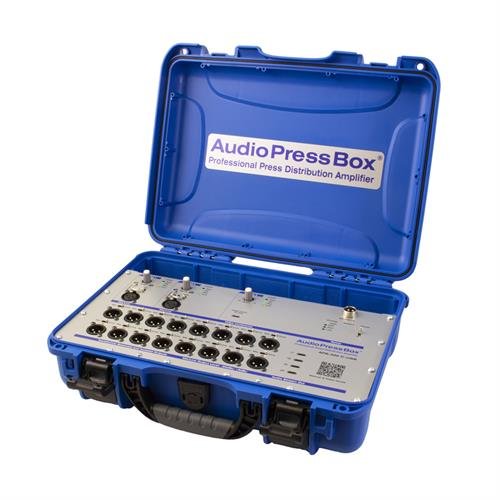

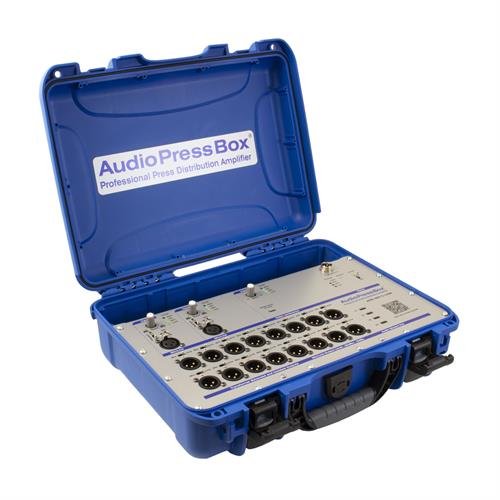

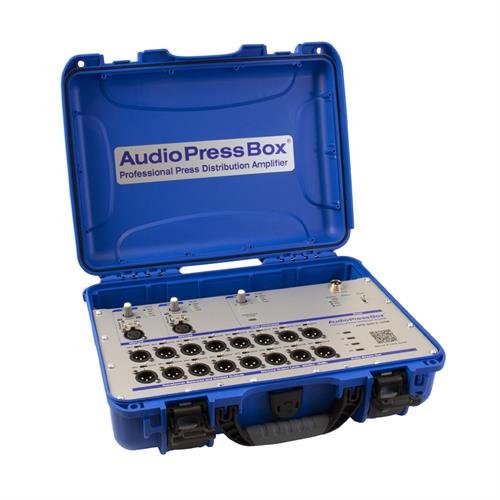

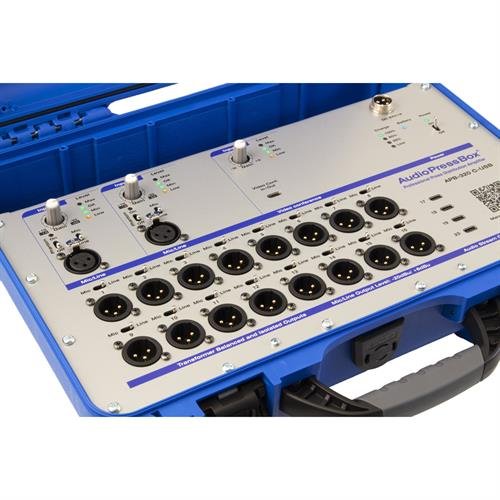

Professional portable, active, pressbox with 2 Analog Line/Mic inputs, 1 Digital USB-C input & output and 16 Analog Line/Mic & 4 Digital USB-C outputs.

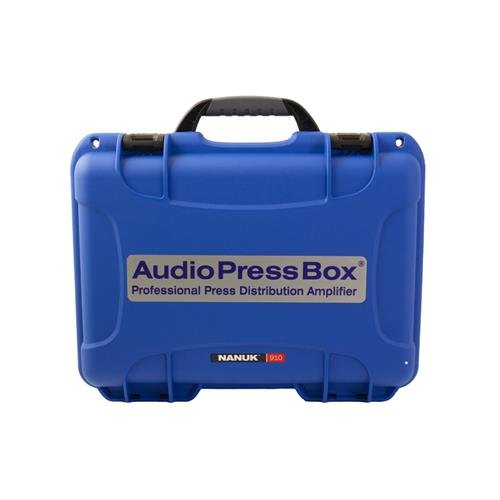

It is suitable for both indoor and outdoor press conferences due to built-in rechargeable accu pack and heavy duty Nanuk case.

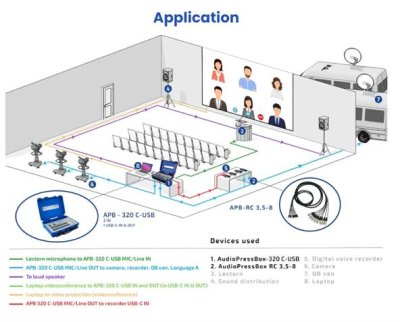

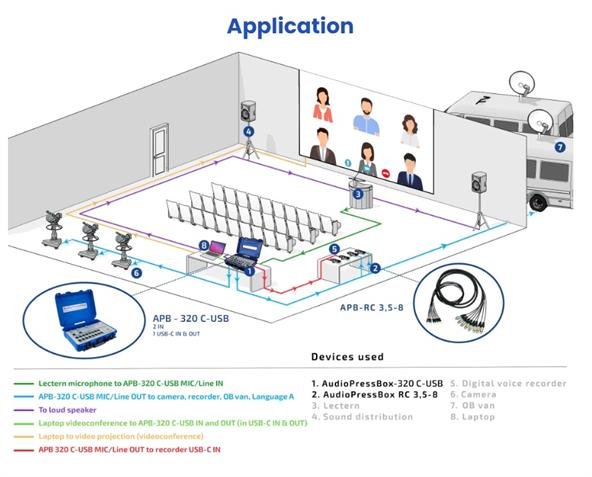

The USB-C also allows a video conference in & out connection for a hybrid press conference.

2 Analog MIC (phantom power) / LINE inputs balanced with gain control and 26dB PAD
1 Digital USB-C input & output

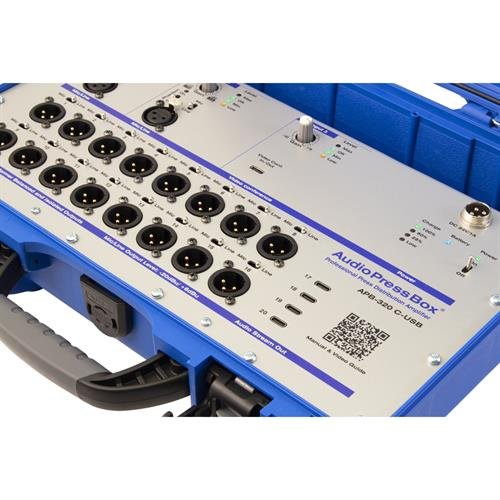

16 Analog XLR balanced and individually transformer isolated outputs
XLR outputs are switchable between MIC or LINE output level
4 Digital USB-C outputs
Built-in Compressor and Limiter for Analog (XLR) inputs
Li-Ion AccuPack with microprocessor controlled battery management
20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
On unit printed QR code for online access to manual, user guide and video guide

Audio Press Box APB-320 C-USB
Type 3 in 20 out
Groups 1
Input section
Inputs 2 analog, 1 digital
Analog Inputs
Input connectors Balanced, XLR
Input Gain Mic: +22/+62dB Line: -4/+36dB
Max. input level Mic: -10/-30dBu Line: +36/-4dBu
Phantom Voltage 48V
Input Impedance Mic: 2,4 kOhm Line: 3,5 kOhm
Digital Inputs
Input connector USB Type C
Compliant USB Specificaion USB 2.0
Input Gain -/ +6 dB
Supported Sampling Rates 32kHz, 44.1kHz, 48kHz
Bit Depth 16-Bit
Interface Powering: Bus Powered*
Charging capability: No
Output section
Outputs 16 Analog with Line/ MIC level, 4 Digital
Analog Outputs
Output connectors Balanced, XLR
Nominal Output Level +6dBu
Maximum Output Level +20dBu (no load)
+14dBu (600 Ohm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output)
SNR 86dB
Frequency Response 120Hz to 30kHz/ -3dB
Digital Outputs
Output connector USB Type C
Compliant USB Specification USB 2.0
Supported Sampling Rates 8kHz, 11.025kHz, 16kHz, 22.05kHz, 32kHz, 44.1kHz, 48kHz
Bit Depth: 16-Bit
Interface Powering: Internal
Charging capability: Yes, max. 0,5A
Controls
Input section 26dB PAD, Input gain, Phantom
Output section Power switch, Output PAD
Indicators
Input section Phantom power, Input level
Power
Power Supply 24V DC, 1A external adaptor
Battery Li-Ion, 14,4V 2200mAh
Battery operation time up to 20 hours

Tilslutninger

In-put:	2 mic/line og 1 USB-c
Out-put:	16 mic/line og 4 USB-c

Størrelse

Vægt:	5 kg
Bredde:	30 cm
Dybde:	12 cm
Højde:	37 cm
