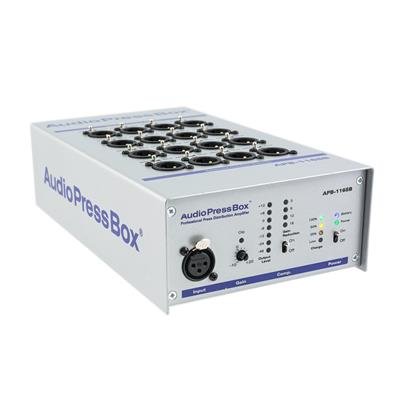

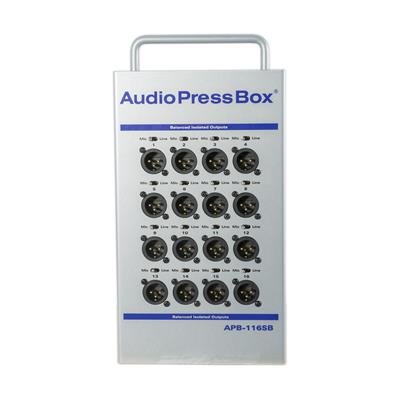

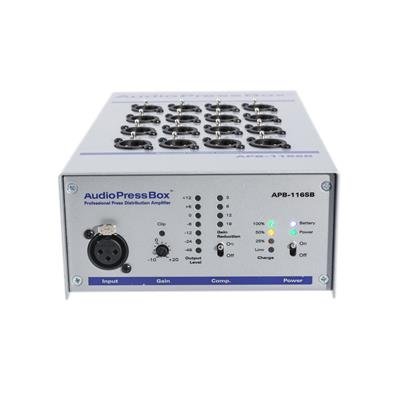

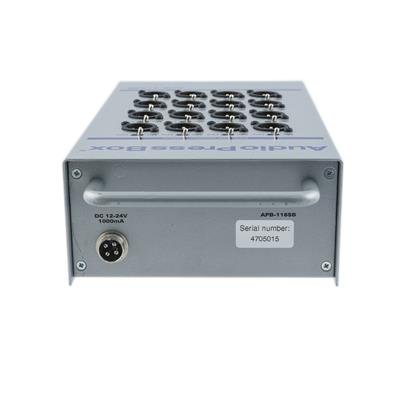

AudioPress Box 116 SB stageboks 1 line in, 16 line/Mic out

APB-116 SB stageboks

Active, Portable, 1x LINE Input, 16 Line/MIC Outputs, internal AccuPack 10 hours

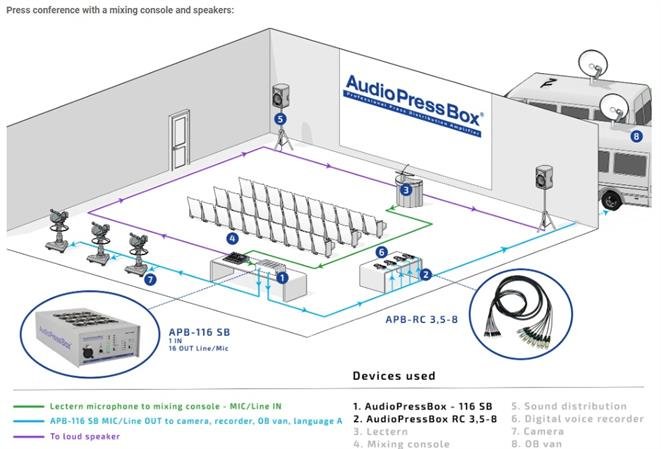

A professional portable active press box (Audio Splitter) suitable for both indoor and outdoor press conferences.
It features 1 Line Input and 16 Line/Mic Outputs.
Each Output is independet transformer balanced and isolated.
The APB-116 SB also includes a rechargeable AccuPack so it can run on its own up to 10 hours.

1x LINE Input balanced with ajustable gain -10db to +20 dB
16 High quality independent transformer balanced and isolated outputs
Each Output is switchable between MIC or LINE level
Built in High-Pass filter on the frequency of 40Hz
Switchable Compressor and Limiter for Input channel
Nominal Output level is selectable -6 dBu, 0 dBu, +4 dBu and +6 dBu
Li-Ion AccuPack with microprocessor controlled battery management
10 hour full load capacity. Note: AccuPack is placed inside the unit



Audio Press Box APB-116 SB
Type 1 IN/ 16
Groups 1
Input section
Inputs 1
Input connectors Balanced, XLR
Max. input level Line: +32/+2dBu
Input Impedance >5kOhm
Output section
Outputs 16 Line/MIC level
Output connectors Balanced, XLR
Nominal Output Level - -6/0/+4/+6 dBu
Max. Output Level +20dBu (no load) +16dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each output is Independant Transformer Isolated)
SNR 86dB at 0dB Gain 78dB at +20dB Gain
Frequency Response 30/160Hz (filter) to 60kHz/-1dB
Controls Input gain, Compressor,Power, Output PAD
Indicators Input clip, Output level, Gain reduction, Power, Battery status
Power Supply 24V DC, 1A external adaptor
Battery Li-Ion, 7.2V 2200mAh, operation time 10 hours

We Also Recommend APB-320 C-USB

Tilslutninger

In-put:	1 line
Out-put:	16 line/mic

Størrelse

Vægt:	2,92 kg
Bredde:	29,5 cm
Dybde:	7,5 cm
Højde:	15 cm
