ART mikrofon rør forforstærker med compressor

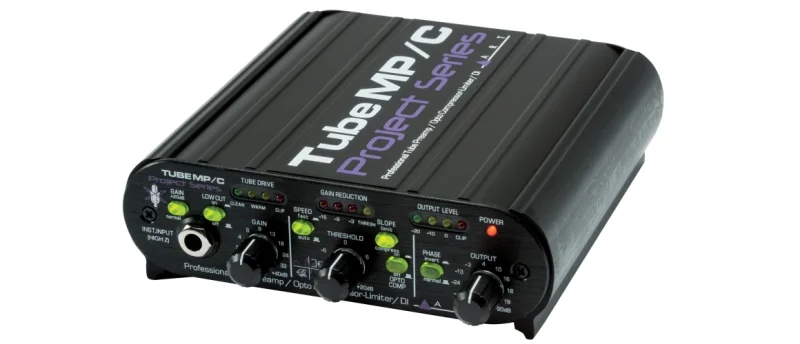

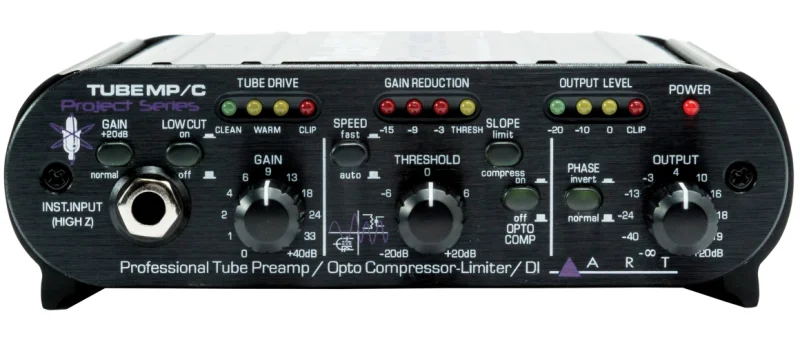

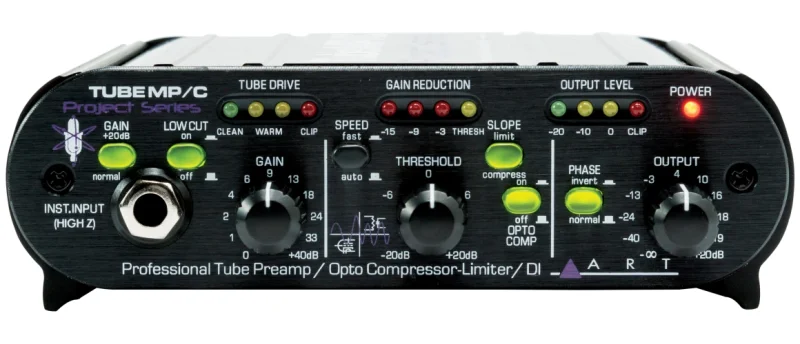

ART Tube MP/C mikrofon rør forforstærker med compressor

Tube MP/C (PreAmplifier/Compressor) er et multi-purpose værktøj til lyd-recording. To uafhængige kredsløb tilbyder en rørbaseret analog forforstærker og en VCA-less kompressor med optisk gain-reduktionskontrol. Tube MP/C er designet til at virke med ethvert optagelses, lydforstærkene eller elektrisk instrument-setup. Forforstærkerens aktive, balancerede input tilbyder ekstremt lav støj og sublim common-mode-rejection. Tube MP/C's anden fase kører på reguleret DC volt som tilbyder ekstra 20 dB gain.

Tube-based mic/line preamplifier with up to 80 dB of gain
Hand-selected 12AX7a tube
Optical (VCA-less) compressor circuitry = transparent dynamics control
¼-inch unbalanced inputs and outputs
XLR balanced inputs and outputs
Transformer isolated XLR output
Selectable output range for Line/Instrument interface levels
LED meters for Tube Warmth, Gain Reduction and Output level
+48V phantom power
Phase reversal switch
Selectable release time settings
> 90dB dynamic range
Custom extruded aluminum chassis

Frequency Response: 30 Hz - 60 kHz +/- 1 dB balanced output, 20 Hz - 60 kHz +/- 1dB 1/4" output
Total Harmonic Distortion: CMMR: > 60 dB @ max gain
Equivalent Input Noise: -128dBu typical ("A" wtd., Shorted XLR balanced input, gain @ max)
Input Impedance: 1M Ohm 1/4" input, 5K Ohm XLR input

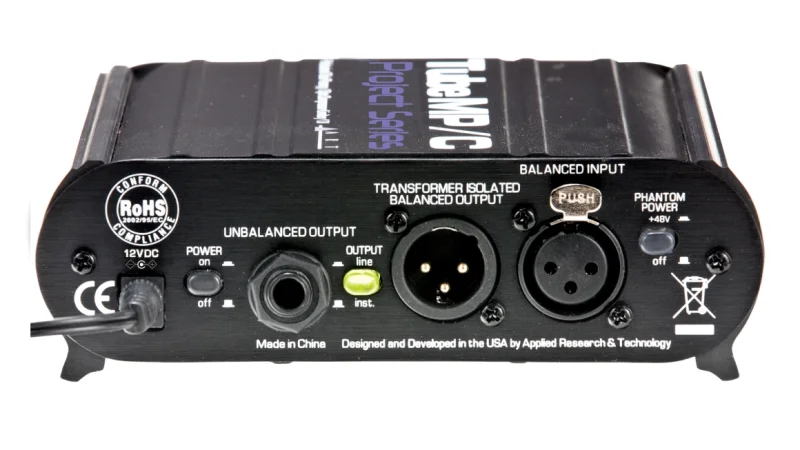

Input/Output Connections: Input: XLR balanced or 1/4" balanced. Output: 1/4" unbalanced XLR balanced, transformer isolated.
Maximum Gain: +80 dB (balanced in-out, +64dB (unbalanced input, balanced output)
Maximum Input: Level unbalanced (Inst): +15 dBu, balancd (mic): +10 dBu
Maximum Output: Level +19 dBu (Line mode)
Output Impedance XLR: Low Cut Filter: -3 dB @ 70 Hz, 6dB/Octave
Phantom Power: Switch selectable, +48Volts DC, filtered, current limited
Chassis Type: All aluminum black anodized with integral rubber sides
Power Requirements: 9VAC @ 1000mA (external)
Attack Time: Release Time: 150ms (fast), 20ms - 3s Program dependant (Auto)
Tube Type: Hand selected 12AX7a
Compressor Slope: 2:1 (Comp.) / 11:1 (Limit)
Dimensions(W x H x D): 44.5 x 150 x 165 mm
Weight: 1.32 kg
Notes: 0dBu = 0.775V rms
Weight includes power supply and packaging

Information

Type:	Forforstærker
