Beskrivelse

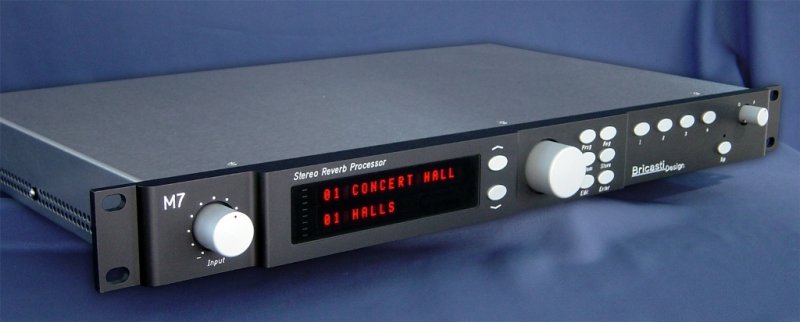

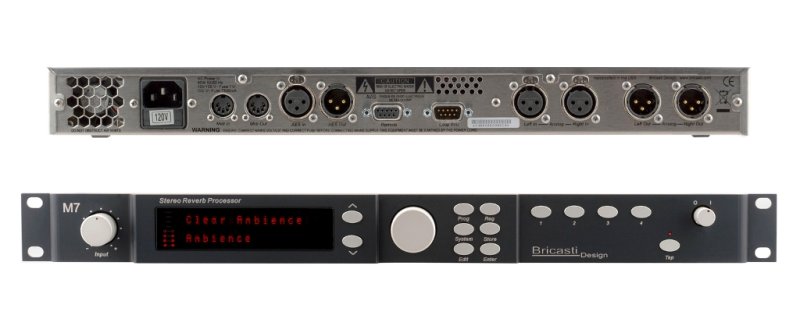

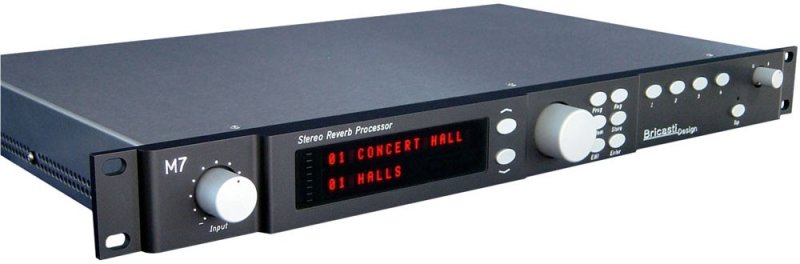

The Bricasti Design Model 7 provides the highest level of musicality and ease of control imaginable in a processor dedicated to the task of reverberation. A modern high resolution digital design, utilizing a stunning array of the latest DSP processors, provides a platform for the long overdue next step in reverb processing algorithms. A separate fully differential analog section and dedicated transformer based linear power supply provide the finest analog specifications of any product of it's kind. An exceptionally strong stainless steel chassis, and a tooled aluminum front panel, combine with a classic high visibility display and straight forward human interface, to complete an enduring design that is intended to fulfill its role, now and into the future. Each design element of the Model 7 is a carefully considered statement of our vision of what the evolution of reverberation processing in its most classic form can be. With a deep appreciation of the best designs which precede it, and a passion for moving the science of reverberation forward, the Model 7 provides a palette of sounds that encompass the familiar as well as new expressions in the art. Listen to the new reference in reverb processing; it will bring new life to your art, in a way unimagined by any process before it.
100 Unique reverb presents
Revolutionary new reverb algorithm True Stereo Reverb Process
Classic and new Presents; Halls, Plates, Chambers, Ambient Spaces
12 Parametric Program Parameters
100 User Registers
4 Front panel "Favorites" for quick saves and compares
Hardware Design Features
Dual Dedicated Power Supplies
Custom design toroidal transformer linear supply for analog
High performance switching supply for digital
Separate Digital and Analog modules
non corrosive Stainless Steel chassis and top cover
Milled anodized alunimum front panel, knobs and button caps
Positive feel 2 db stepped analog input level control
MIDI I/O
Digital:
AES 24 Bit Digital I/O
AES single wire 192k supported
Self-clocking to incoming sample rates 44.1k to 192k
6 State of the art dual core Analog Devices DSPs
Analog:
Input level adjustable in 2 dB steps
Balanced XLR analog I/O
24-bit conversion
Dual D/A
Fully-balanced, DC-coupled analog input and output circuits
Analog Input A/D
Analog Input A/D
Dynamic Range >116 db, A-Weighted
THD+N Frequency Response: 10 Hz - 20 kHz ± CMRR: > 60 dB @ Maximum Input Level: +24 dBu
Minimum Input Level for 0 dBFS: +4 dBu
Analog Output D/A
Analog Output D/A
Dynamic Range: > 116 dB, A-Weighted
THD+N: Frequency Response: 10 Hz - 20 kHz ± Maximum Output Level: +24 dBu
Hand Crafted in the USA
