8.900,00 DKK (inkl. moms)

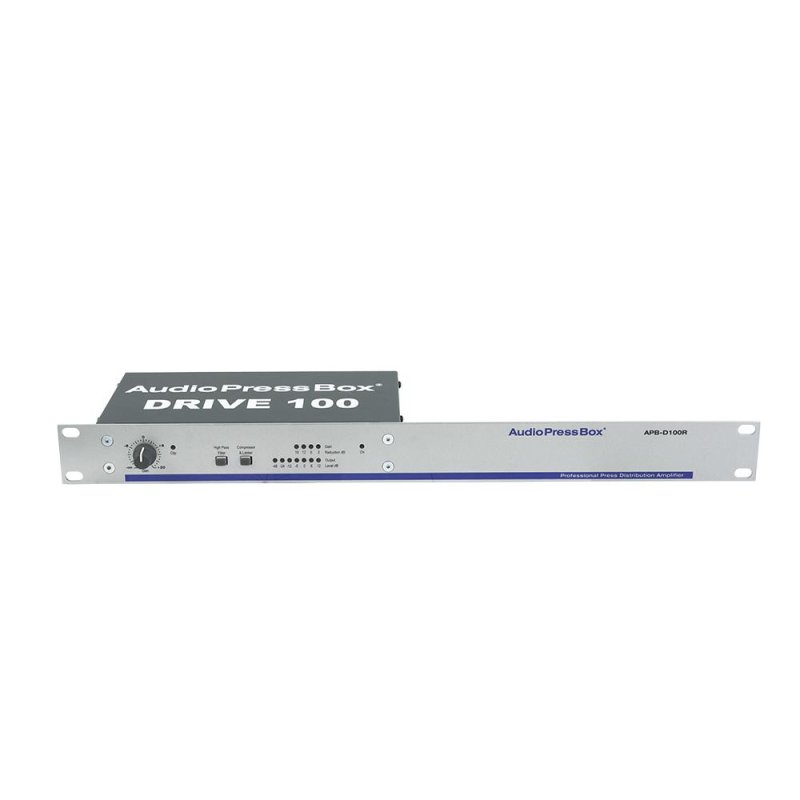

AudioPressBox APB-D100 R
Active 19 rack AudioPressBox distribution Drive unit, 1 LINE Input, 2 buffered Outputs for 6 AudioPressBox expanders
Model/Varenr.: APB-D100R
EAN-nummer.: 8588007614144
Leverandør varenr.: APB-D100 R
Lagerstatus: Ikke på lager - Forhør om leveringstid
Favoritliste
Inkl. moms
                0
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            1
                                                            2
                                                                        3
                                                                        4
                                                                        5
                                                                        6
                                                                        7
                                                                        8

Beskrivelse

AudioPressBox APB-D100 R

AudioPressBox APB-D100 R
Active 19 rack AudioPressBox distribution Drive unit, 1 LINE Input, 2 buffered Outputs for 6 AudioPressBox expanders

Active 19 rack AudioPressBox distribution Drive unit, 1 LINE Input, 2 buffered Outputs for 6 AudioPressBox expanders

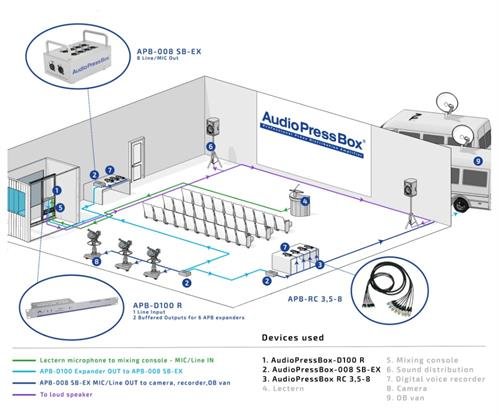

A professional active press box drive unit (Audio Splitter) serving as a source for AudioPressBox expanders.
It features 1 Line Input and 2 buffered expander Outputs.
It is a 1 channel drive unit with purpose of feeding any of our expanders.
This drive unit can power up to 48 Line/MIC outputs.
You can connect any of our expanders to it.

Drive unit for : APB-008 SB-EX, APB-008 IW-EX, APB-008 OW-EX, APB-008


Audio Press Box APB-D100 R
Type 1 IN/ 2 Drive OUT for 6xAPB 8-Output expanders or 2xAPB 24- Output expander Note: Total capacity:48 Line/Mic outputs (6x APB-008 xx-EX or 2x APB-024 R-EX) or 576 Mic Outputs (48x APB-P112 SB)

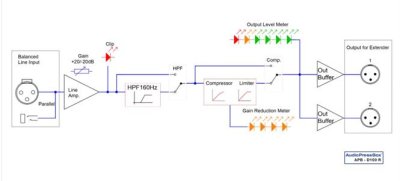

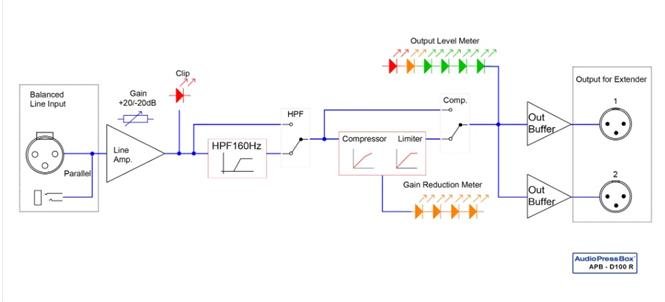

Input section
Inputs 1
Input connectors Balanced, XLR
Max. input level Line: +32/+2dBu
Input Impedance >5kOhm
Output section
Outputs 2 separately buffered, balanced outputs for AudioPressBox expanders
Output connectors Balanced, XLR
Nominal Output Level +6 dBu
Maximum Output Level +20dBu with 48 Outputs in use
+16dBu (600kOhm)
Output impedance Mic: 220 Ohm Line: 600 Ohm
Transformer isolated outputs Yes (each EXPANDER output is Independant Transformer Isolated)
SNR 86dB at 0dB Gain
78dB at +20dB Gain
Frequency Response 30/160Hz (filter) to 60kHz/-1dB
Controls Input gain, Compressor and Limiter, High Pass Filter, Power
Indicators Input clip, Output level, Gain reduction, Power

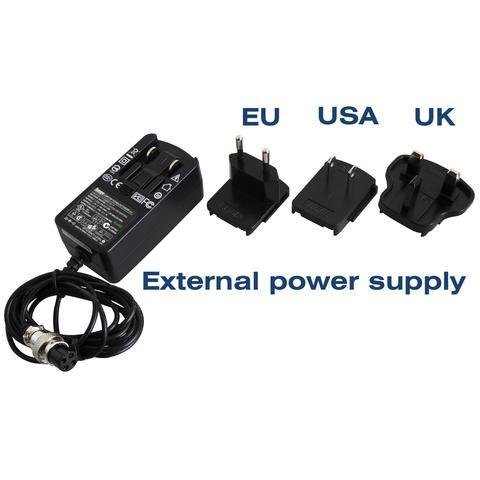

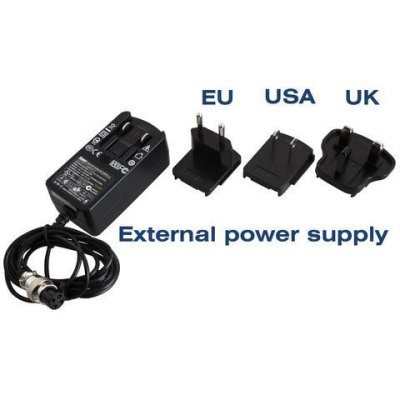

Power Supply 24V DC, 1A external adaptor

Specifikationer

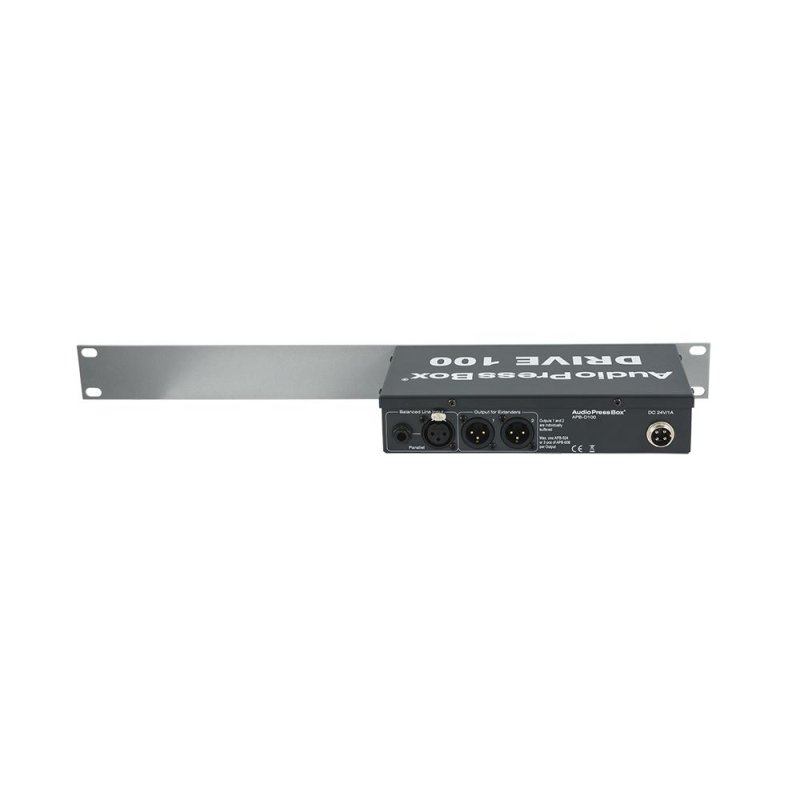

Tilslutninger

In-put: 1 XLR
Out-put: 2 XLR

Størrelse

Vægt: 1,210 kg
Bredde: 480 mm
Dybde: 120 mm
Højde: 1 unit

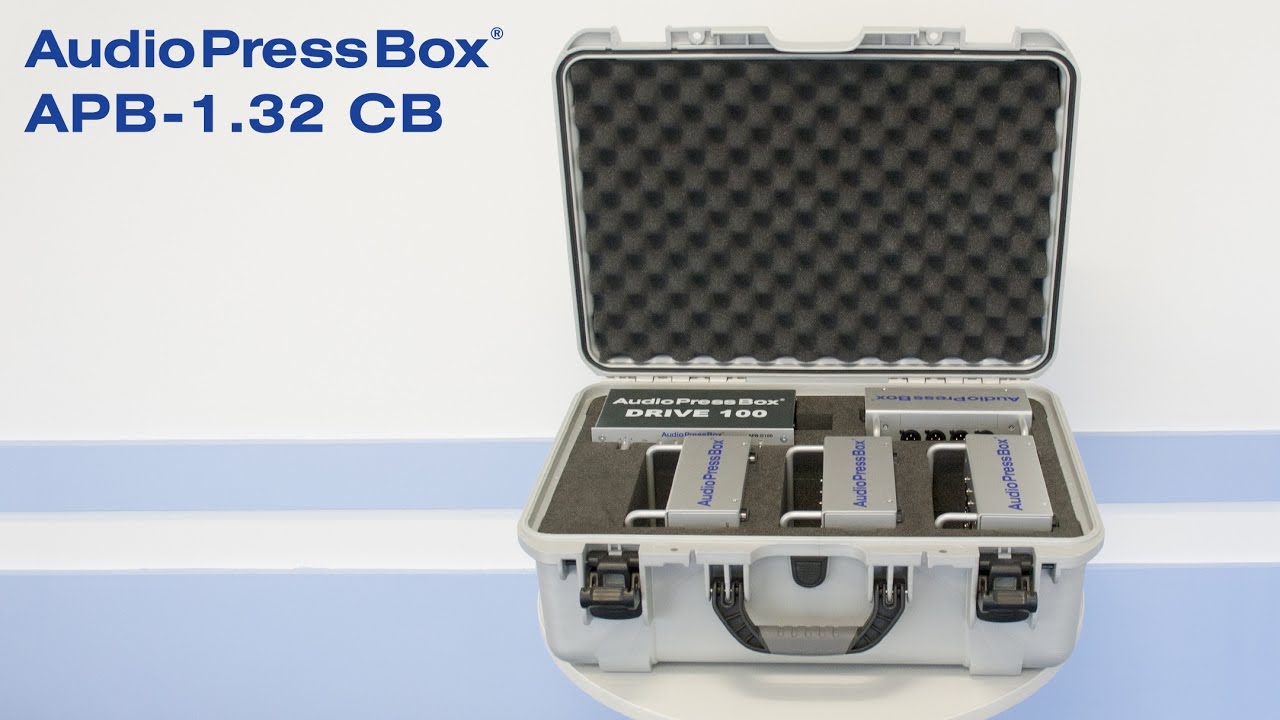

Video
