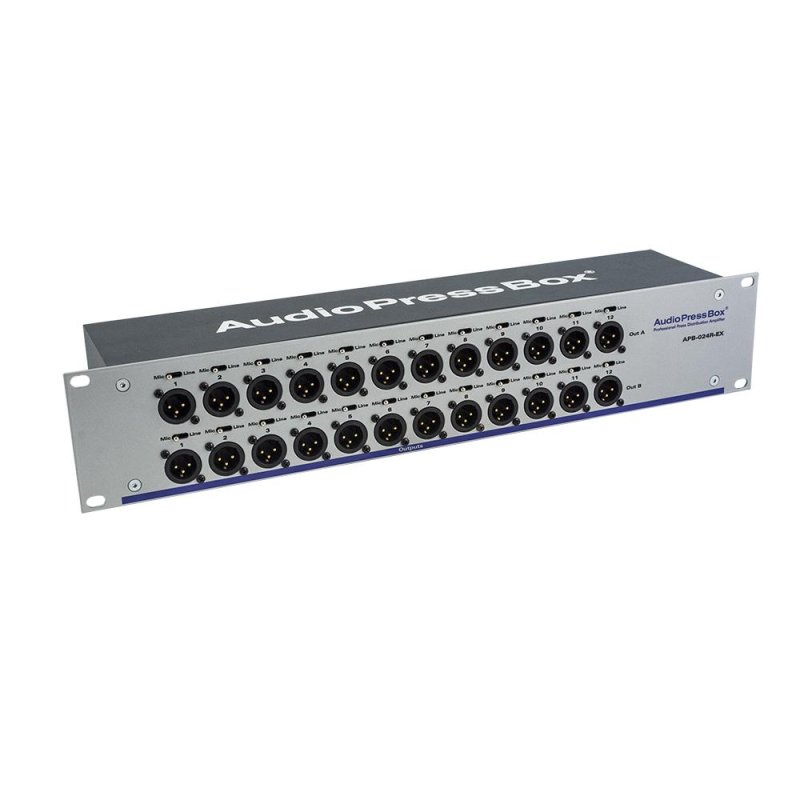

AudioPressBox APB-024 R-EX
Rack unit 24 Line/MIC outputs Expander

A professional press box (Audio Splitter) expander featuring 24 Line/MIC outputs in a Rack.

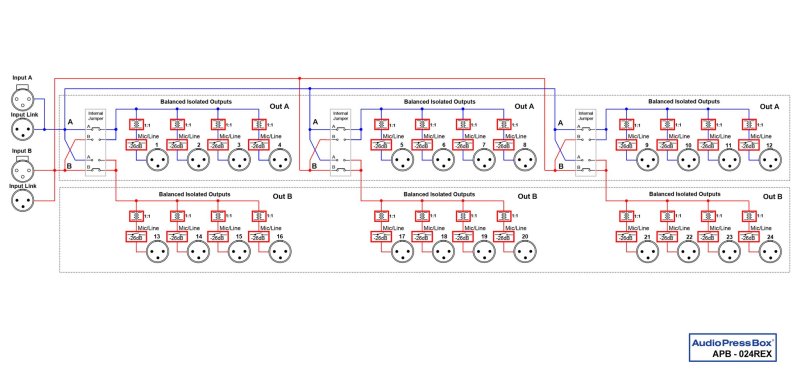

Outputs are divided to channel A and channel B so it can also be used for bilingual conferences.
Each Output is independet transformer balanced and isolated.

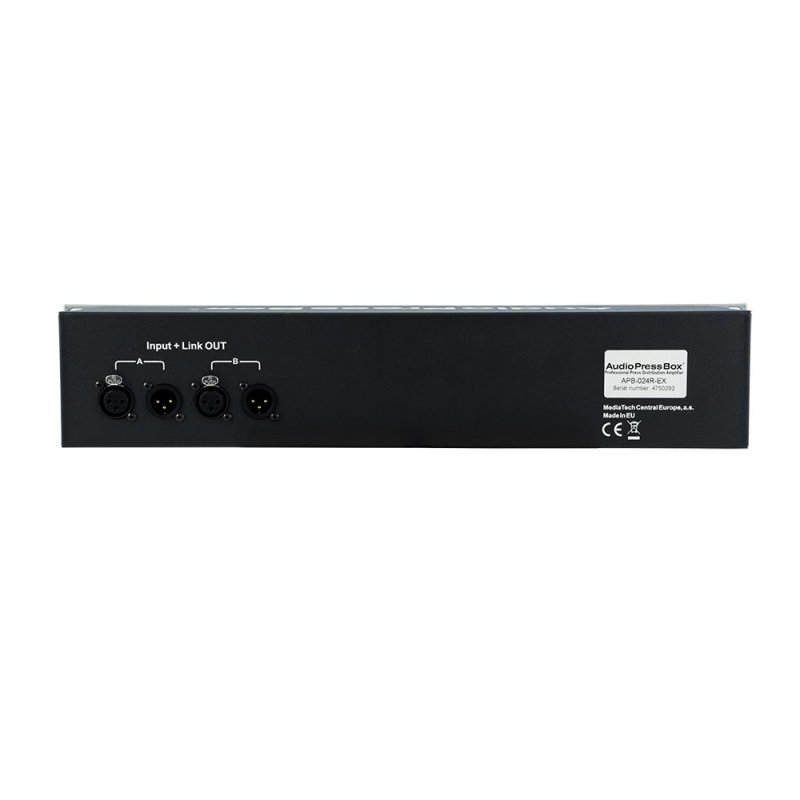

It has 2 inputs with 3-pin XLR connectors, one for each Output channel.
You can route each Input to Output Channel A or B or both.
It also has 2 link Outputs so you can daisy chain additional expanders if you need additional Line/MIC Outputs.

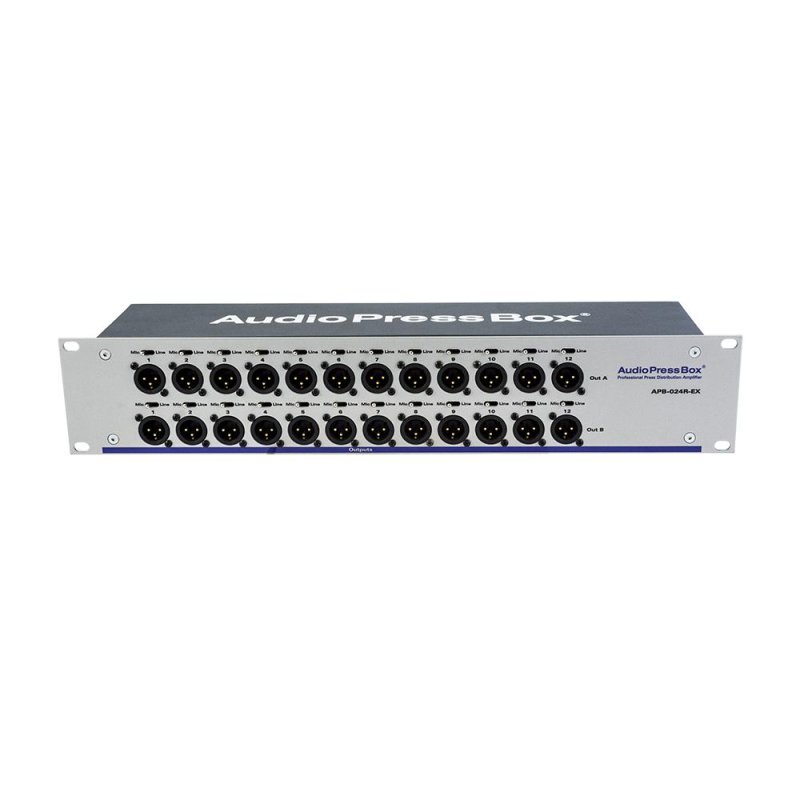

24 High quality balanced Outputs, each Output is independent transformer isolated
Each Output is switchable between LINE or MIC Output level.
2 internal Output Groups: 12x Output A and 12x Output B

The expander must be fed with an APB-Drive unit in order to function properly.
REQUIRES A DRIVE UNIT: APB-D100, APB-D100 R, APB-D116 R-DANTE, APB-D200 R, APB-D200 R-DANTE, APB-D216 R-DANTE, APB-208 R, APB-400 R

Audio Press Box APB-024 R-EX
Type Expander
Groups 2

Inputs
1x Bus A
1x Bus B
Input connectors ballanced, XLR

Ouputs 12x Bus A, Line/MIC level
12x Bus B, Line/MIC level
Output connectors ballanced, XLR-M connector
Transfomer isolated outputs Yes (each output)
Nominal Output level MIC: -20dBu
LINE: +6 dBu

Output Impedance
MIC: 220 Ohm
LINE: 600 Ohm

Specifikationer

Tilslutninger

In-put:	2 XLR
Out-put:	24 XLR line/mic

Information

Type:	Mikrofon splitter

Størrelse

Vægt:	2,830 kg
Dybde:	150 mm
Højde:	2 unit
