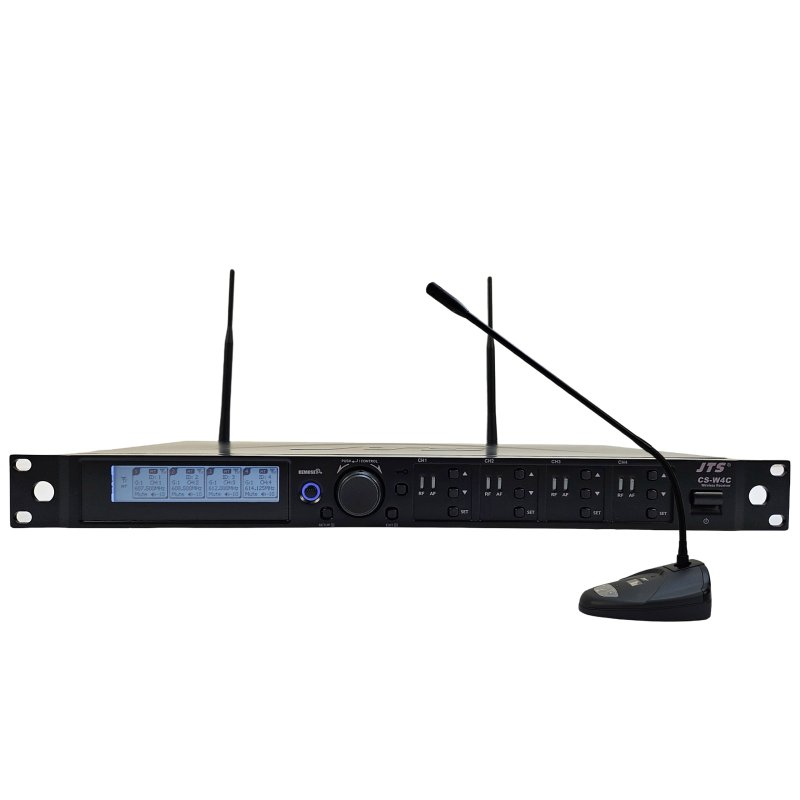

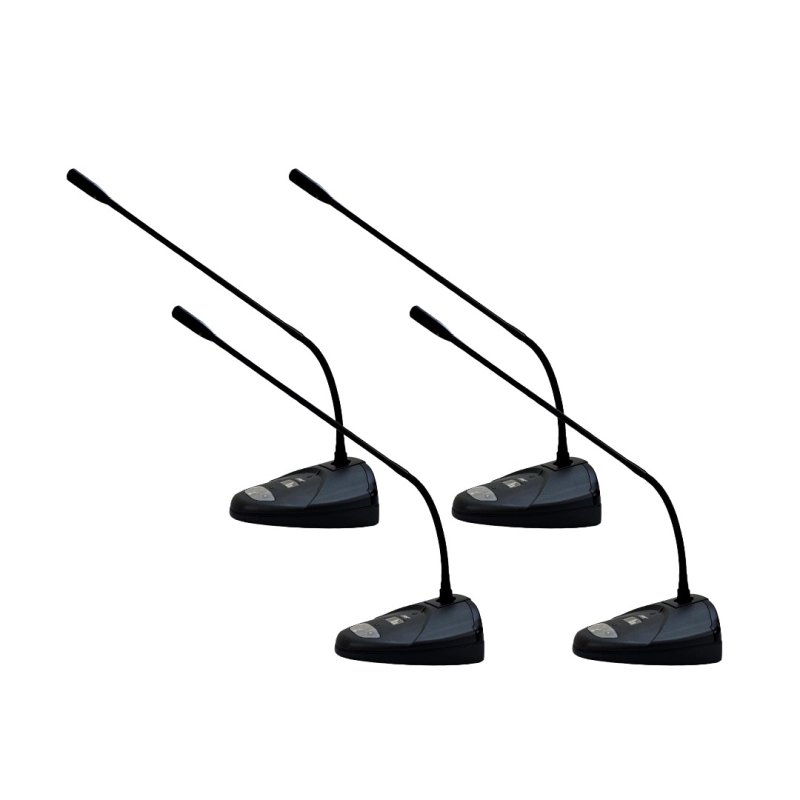

JTS konfrerence mikrofon modtager med 4 bordmikrofoner
CS-W4C er designet med JTS nyeste trådløse og konferenceteknologi.
Det giver maksimerede kompatible kanaler med en given båndbredde.
Indbygget logisk kredsløb giver konferencefunktion.
En mikrofon tildelt med prioritet vil fungere som en formandsenhed.
Den tilsidesætter andre mikrofoner.
Logisk indstilling af en CS-W4C-modtager kan kaskades.
En mikrofon med prioritet i én modtager vil også have prioritet i et kaskadesystem.
JTS patenterede REMOSET synkroniserer alle fire mikrofoner
Mikrofonen har en båndbredde på 108 MHz.
Denne funktion giver flere deltagere mulighed for at deltage i konferencen.

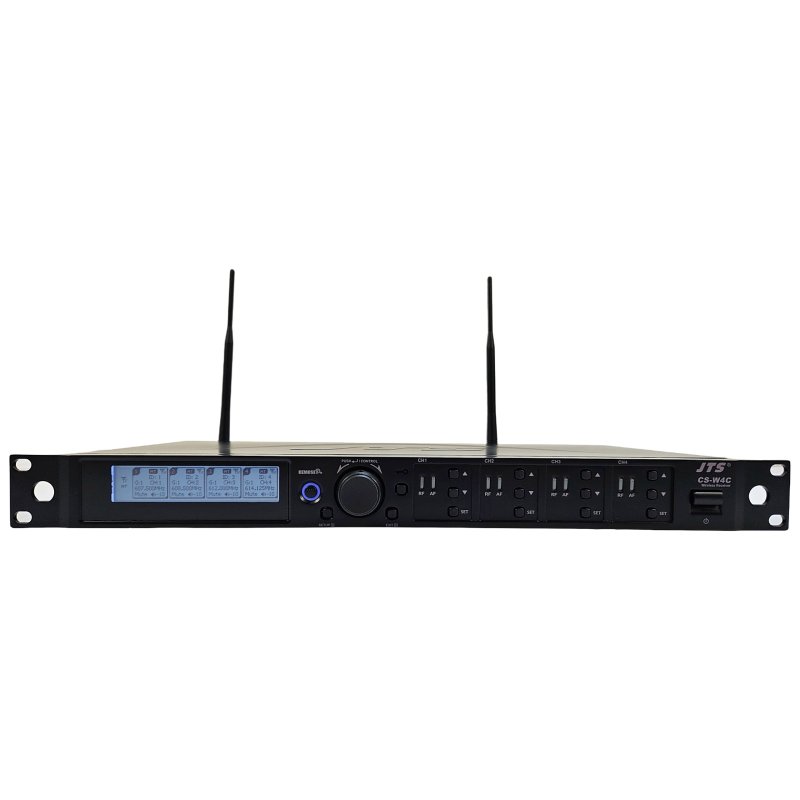

CS-W4C(T)
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 506-542 MHz
Frequency Setting 2.4G RF REMOSET
Channel 4
Bandwidth 36MHz
S/N Ratio >105dB(A)
T.H.D Sensitivity -95dBm, S/N>80dB
CMRR >80 dB
Audio Frequency Response 80Hz~16KHz±2dB
Antenna Connector BNC (Female)
Antenna Booster Power DC12V/100mA
Display LCD+LED
Controls Power ON/OFF, Group, Channel, Frequency, Sensitivity, Key Lock, Volume, Output
Attenuation(XLR), Frequency Scan(ON/OFF), Antenna Power, Display Setting, Language,
Remoset ID Number, Reoset Setting, Priority Setting
Audio Output Level Ref: ±22.5KHz Dev@1KHz Tone
Ø6.3 Phone Jack: -10dBV
XLR Jack: -4dBV(Line), -24dBV(MIC)
Audio Output Level 600 Ohm
Squelch Pilot Tone & Noise Mute

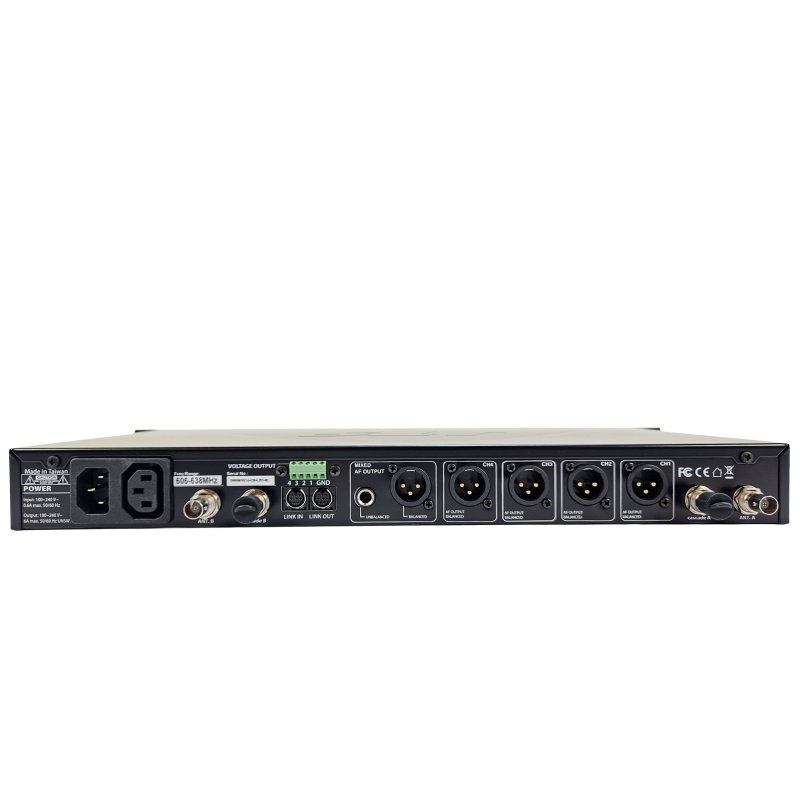

Output Socket XLR Balanced Socket x5, 6.3mm Unbalanced x1
Automixer Control 8PIN MINI DIN Input, 8 PIN MINI DIN Output
Power Supply DC12~15V/1A
Dimension(mm) 485(W) x 45(H) x 260(D)
Note Actual Product specifications may vary depending on model and region

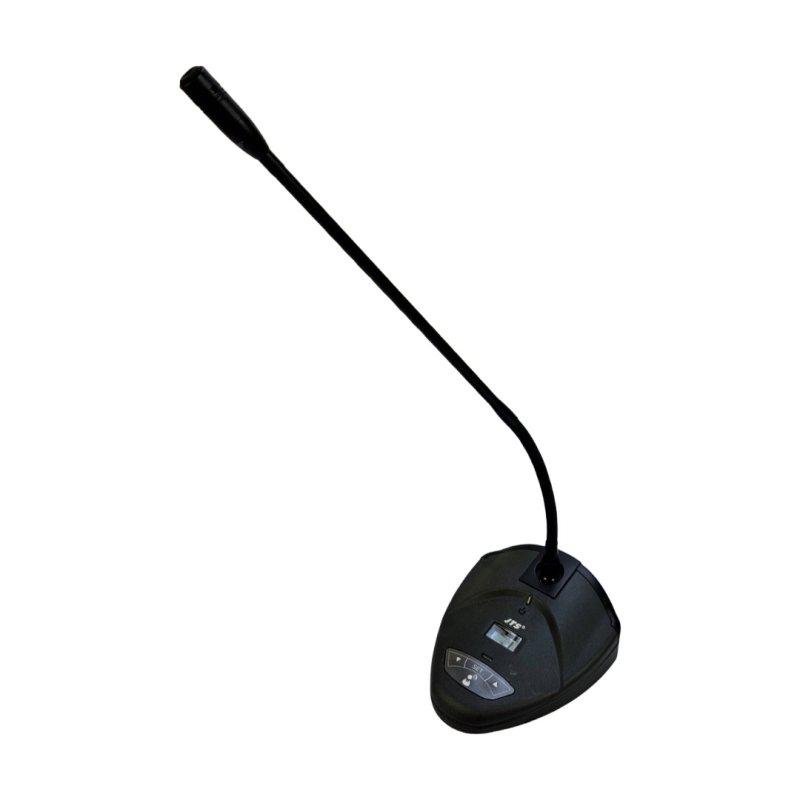

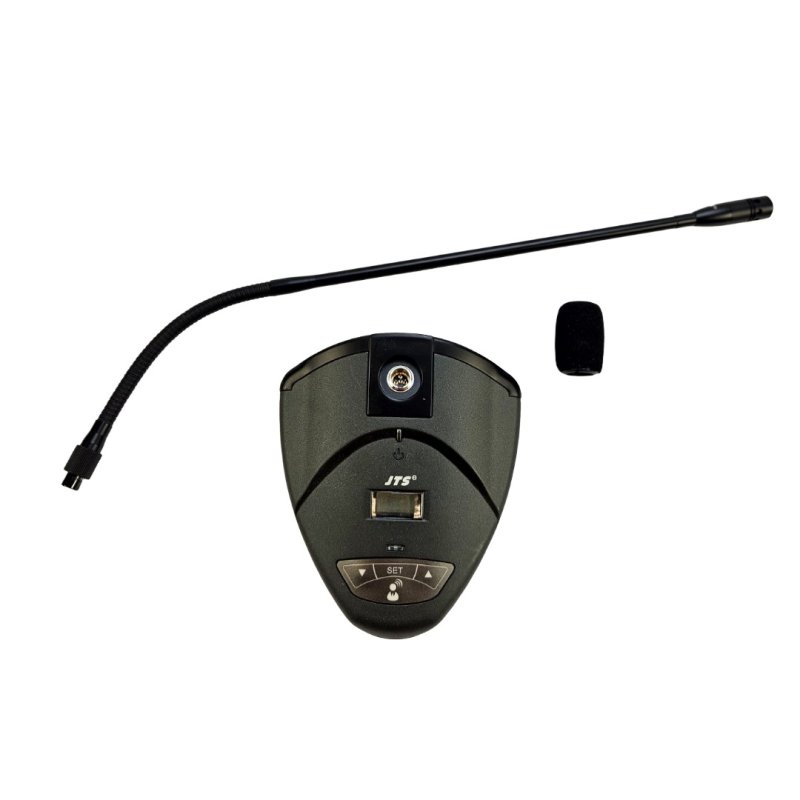

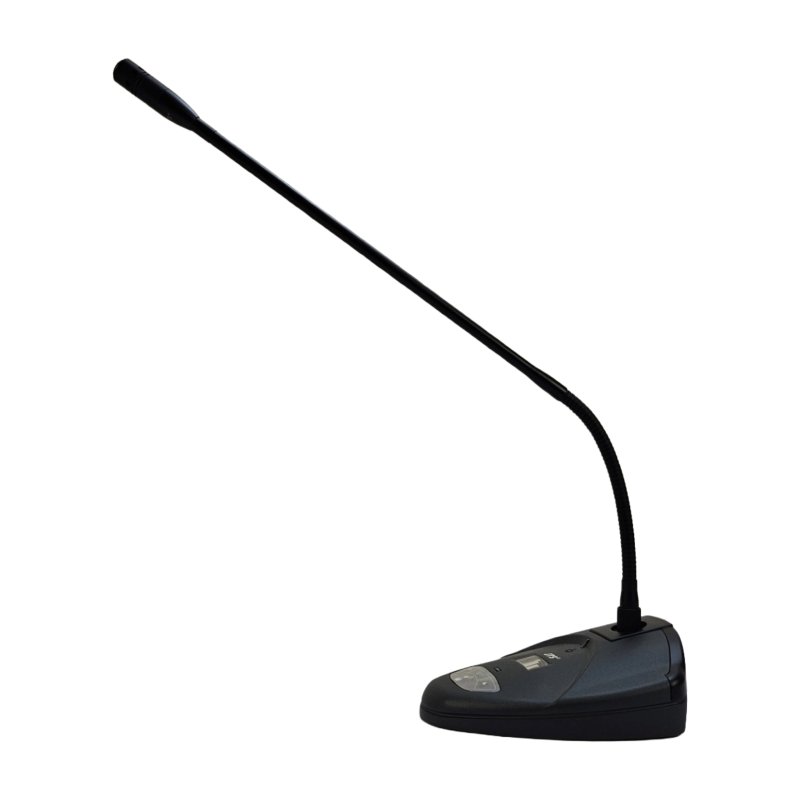

CS-W4T(T)
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 470~960 MHz / 502.000 - 694.000 MHz (T band)
Frequency Setting 2.4G RF REMOSET
RF Outputs Low / High
Stability Frequency Deviation ±48KHz
Spurious Emissions Display LCD
Controls Power ON/OFF, Talk, Group, Channel,
Fuequency, Sensitibity, RF Output, Key Lock
REMOSET ID Pairing, REMOSET Setting
Battery UM3, AA x2
Rechargeable Yes
Base Dimension 116mm (W)*29 mm(H)*138mm(D)
Note Actual Product specifications may vary depending on model and region
