Boya Trådløst kamera sæt med dobbelt modtager og 2 sendere

Beskrivelse

Specifikationer

Beskrivelse

BOYA WM8 Pro er opgraderet version af UHF Dual-Channel Wireless Microphone System og
kan bruges til at optage lyd til live lyd, ENG, transmission og film, talkshows, konferencer og mere.

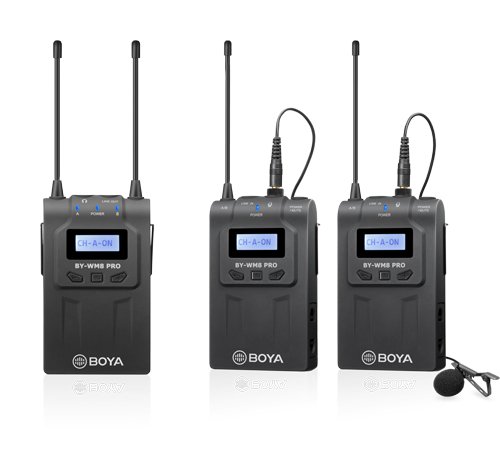

BOYA WM8 Pro-K2-systemet består af:
1 styk dobbelt kamera-monterbar modtager
2 styk bodypack-sendere
2 styk omnidirektionelle (kuglekarakteristik) lavalier-mikrofoner med clips og vindhætte
1 styk kamerasko monteringsadapter
1 styk minijack til XLR kabel
1 styk minijack til minijack kabel.

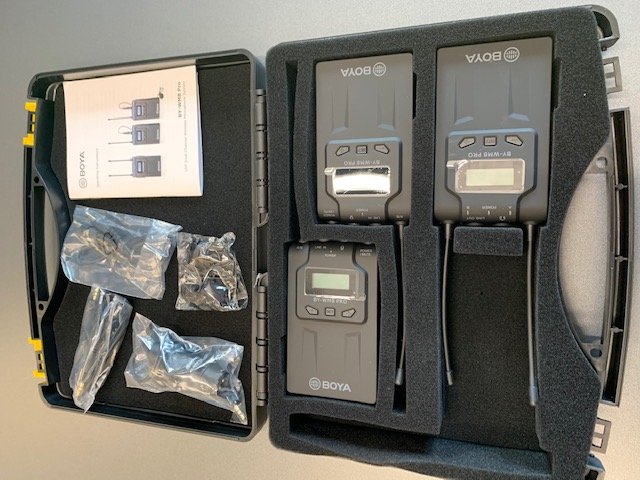

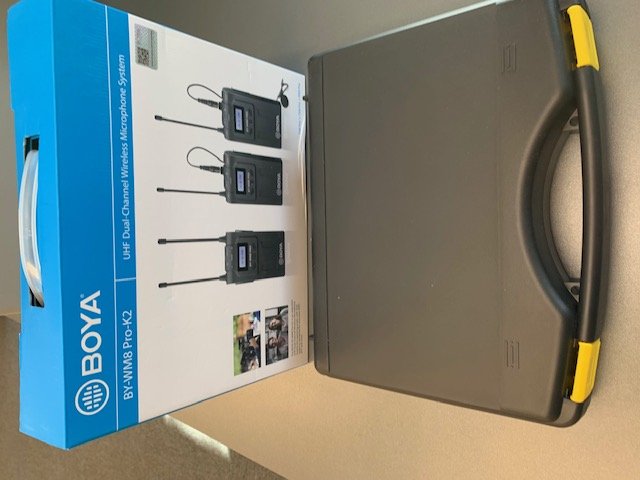

Leveres samlet i transport kuffert

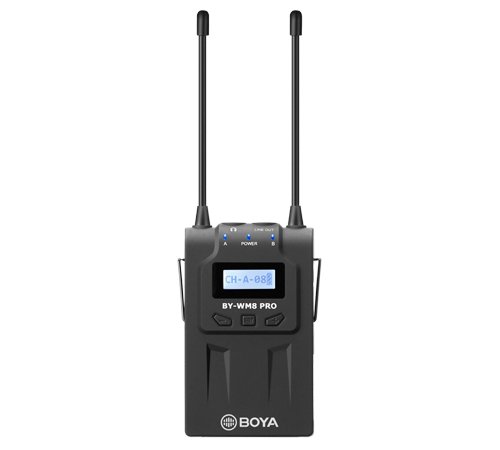

Kamera modtageren har et bredt RF-båndbredde, et let at læseligt LCD-display

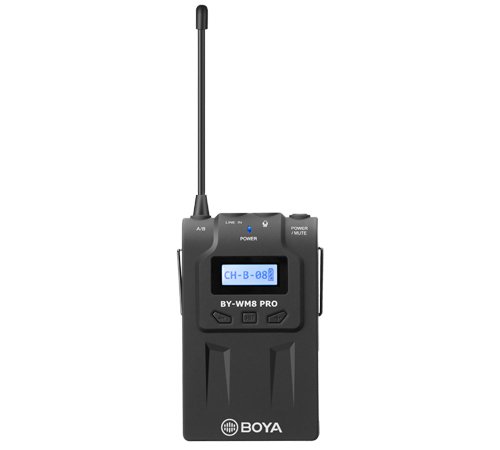

og en 3,5 mm hovedtelefonstik til realtidsovervågning. Bodypack-senderen er udstyret
med en krystalkontrolleret PLL-synthesizer, en muting-funktion, minijack mic input og minijack line-in.

Product Highlights:

　　• Dual-Channel Wireless Receiver
　　• Consists of One Transmitter and One Receiver
　　• UHF transmission with 48UHF channels
　　• Ideal for ENG/EFP, DSLR Video
　　• Broadcast-Quality Sound
　　• Operation range can reach up to 100m
　　• Adjustable MONO and Stereo mode
　　• Powered by one 2 x AA batteries for
　　both transmitter and receiver

Oscillator type: PLL Synthesized Control Oscillator Carrier Frequency Range: 576.4 MHz-599.9 MHz (Transmitter: A )
568.6 MHz-592.1 MHz (Transmitter: B ) Channels: 48 Frequency response: 40 Hz to 18 kHz (+/-3dB) Operation range: 100m (300')(without obstacle) Operating temperature: 14° F to 122° F (-10℃ to +50℃) Storage temperature: 14° F to 131° F (-10℃ to +55℃)

Transmitter：
RF output power: ≤10 mW Antenna: 1/4λ wire antenna Spurious emission: 250 nW or less Audio input connector: 3.5mm mini jack Reference audio input level: –60 dBV (MIC input, 0 dB attenuation) Reference deviation: ±5 kHz (–60 dBV, 1 kHz input) Input frequency range: 20 Hz-20 KHz Distortion: 0.5% or less Power supply: Two AA size batteries Operation time: About 6 hours Dimensions: 208(H) × 67(W) × 29(L)mm Weight: 80g without batteries

Receiver：
Antenna: 1/4λ wire antenna Audio input connector: 3.5mm mini jack Signal-to-noise ratio: 70 dB or more Distortion: 0.5% or less Headphone output level: 30mW (16 Ω) Audio output level: –60 dBV Power supply: Two AA size batteries Operation time:About 4 hours Dimensions: 208(H) × 67(W) × 29(L)mm Weight: 90g without batteries
Lavalier Microphone：
Transducer: Back electret Condenser Polar pattern: Omni-directional Frequency Range: 35Hz ~ 18 KHz Signal / Noise: 74dB SPL Sensitivity: -30dB +/-3dB / 0dB=1V/Pa, 1 kHz Connector: 3.5mm locking mini plug Length: 1.2m (4’)

Specifikationer

Information

Frekvens:	470 til 599 MHz
Type:	Kamera ENG sæt
Model:	WM8 Pro

Størrelse

Vægt:	0,27
