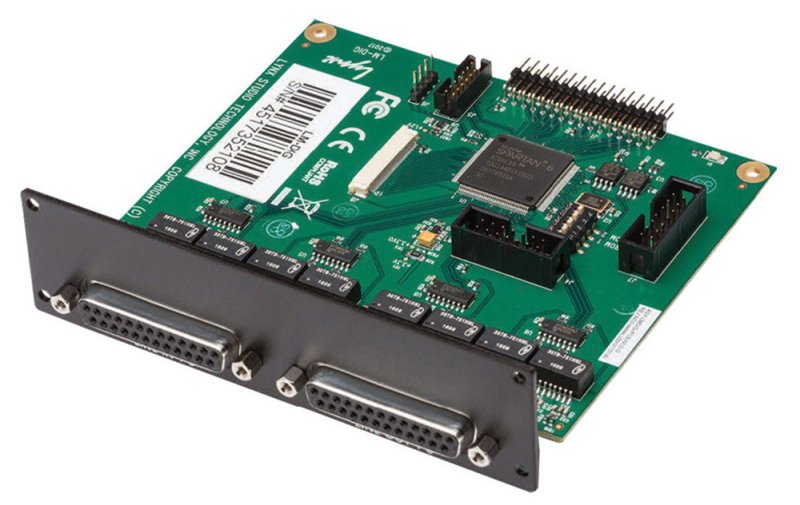

Lynx AES expander modul for Aurora(n) converter, 16 in/out

LM-DIG er et digitalt in/out modul til Aurora(n). Det udvider med 16 AES/EBU inputs og outputs og har desuden tilslutning til yderligere digitale forbindelser.

Lynx Studio Technology announces the LM-DIG, an expansion module for the Aurora(n). It integrates seamlessly with the mixing and routing engine on the Aurora(n) and allows the Aurora(n) to replace any current Aurora system that requires AES/EBU connectivity.

The LM-DIG provides 16 channels in and 16 channels out of 24-bit AES/EBU, with bit-perfect transmission at sample rates of up to 192kHz. AES/EBU is a world standard for digital interfacing, and the addition of the LM-DIG to the Aurora(n) means that studios
and engineers can quickly and easily integrate its superior audio quality and precise conversion/routing tools with almost any
professional-quality recording system, control surface, or other tools that use the AES/EBU standard.

More Expansion
For larger applications that require even more channels and varieties of interfacing, the LM-DIG offers expansion ports that support daughterboard add-ons. Coming soon, an optional daughterboard will allow for expansion to an additional 16 channels of AES/EBU for a total of 32 channels. Also, support for 16 channels of ADAT digital I/O will be available via another optional daughterboard.

Number of Channels: 16 in / 16 out
Data Format: 24-bit AES/EBU
Electrical Interface: Balanced, Transformer-coupled, 110 ohm, RF filtered
Sample Rate: 44.1 kHz to 192 kHz
Connectors: Two 25-pin female D-subs, Yamaha digital I/O pin-out

Information

Type:	Udvidelseskort
