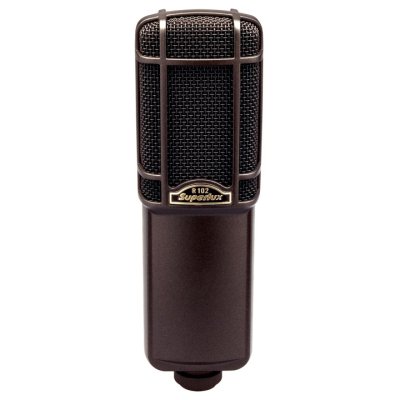

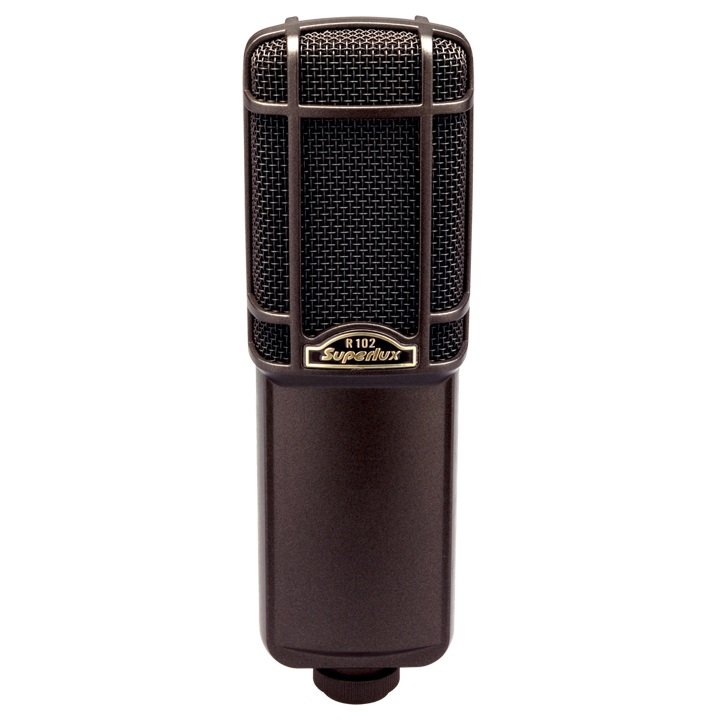

Superlux R102 er en aktiv aluminiumsbåndmikrofon designet til optagestudiet og professionel livepræstation. Det har en høje følsomhed, men udviser alligevel den jævnt frekvensrespons og den fremragende kortvarige respons fra en båndmikrofon.
Black grille Classical standard ribbon microphone +48 V Phantom powered Wide and extended frequency response High sensitivity, wide dynamic range, low distortion Min. noise, Stable performance Unaffected by the surrounding temperature and humidity Figure 8 polar pattern with identical sensitivity at the front and back Low output impedance Modular capsule design
Applications
Recording Broadcast Live performance

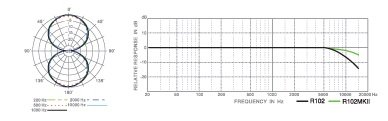

Frequency Response: 25~15,000 Hz Rated Impedance: 2 5 0Ω Sensitivity ( Hz open circuit voltage) : -40dBV/Pa (10 mV/Pa) 1Pa=94dB SPL Polar Pattern: Figure 8 Acoustic Theory: Pressure gradient Type: Ribbon microphone Max. Sound Pressure Level: 1kΩ load) 138dB SPL (THD≦0.5% 1kHz) Equivalent Noise Level: (A weighted) 18 dB Minimum Load Impedance: 1000 Ω Finish: Black grille Connector: 3 pin XLR- male Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3. Current Consumption: 4mA Power Supply: 48V phantom power Dynamic Range: ( 1 kΩ load) 120dB RoHs Net Weight: 500g(17.6oz.) Dimensions: WxHxD: 60mm(2.36in.) x 196mm (7.71in.) x 44mm(1.73 in.) Environmental Conditions: The R102 operate between-10°C~50°C (14°F~122°F) with relative humidity between 0 to 95%.
