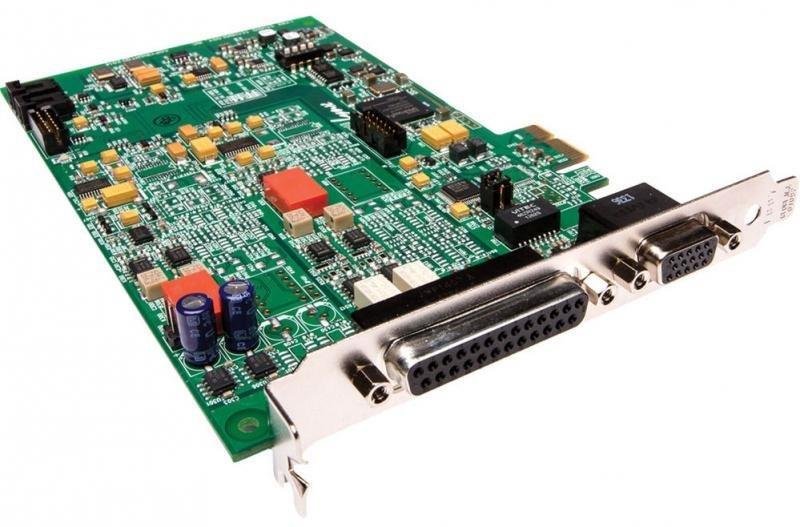

Lynx E22 PCIe Analog & AES/EBU Interface
2 analog in / out og 2 Digital in / out
E22 PCI Express card is designed to satisfy the most demanding professional recording and broadcast studio requirements. Built upon the legacy of the LynxL22 card, the E22 takes a leap forward to offer the highest performance A/D and D/A conversion system ever incorporated into a PCI Express card. In fact the E22 performance even eclipses that of the Lynx Aurora converters. Since 1998, Lynx has provided high-reliability add-in cards engineered for 24/7 operation. The E series improves upon this tradition with upgraded enhancements for I/O protection and shielding.
Ideal for:
Capturing and archiving historic and classic material with extreme accuracy and transparency.v
Broadcast applications requiring 24/7 flawless operation
Audio measurement
Audio production
Medical, military and industrial applications that require full audio spectrum capabilities and extreme reliabilityFeatures:
Two channels A/D and D/A conversion
Two channels of AES3 or S/PDIF I/O
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Extremely low-jitter SynchroLock sample clock generator
Fixed or adjustable trim level on all analog I/O’s, relay controlled
Automatic output muting on power on/off (de-thump)
FPGA-based on-board hardware mixing
V2 DMA Engine promotes extremely low-latency operation
Drivers for Macintosh OS X, Windows 7 & 8. Thunderbolt compatible.
Lynx Mixer application
RoHS compliant
Designed and built in the USA
Cables Sold Separately. CBL-L22Audio for analog I/O and CBL-L22Sync for digital and word clock I/OAnalog I/O
Two input channels / two outputs channels
TYPE: Electronically balanced or unbalanced, XLR connectors
LEVEL: +20dBu full-scale or variable +8.23dBu to +24dBu full-scale; jumper selectable
INPUT IMPEDANCE: Balanced mode: 24 kohm Unbalanced mode: 12 kohm
OUTPUT IMPEDANCE: Balanced mode: 100 ohm Unbalanced mode: 50 ohm
OUTPUT DRIVE CAPABILITY: 600 impedance, 0.2 µF capacitance
A/D AND D/A TYPE: 24-bit, multi-level, delta-sigma
SAMPLE RATES: All standard sample rates up to 192kHz
Line Out (includes D/A Conversion)
Analog performance specs measured at 44.1 kHz sample rate, 24-bit, card installed in computer
FREQUENCY RESPONSE: 20 - 20 kHz, ± 0.05 dB
DYNAMIC RANGE: 120 dB
CHANNEL CROSSTALK: THD+N: -108 dB (0.0004%) @ -1 dBFS 1kHz signal, 22Hz - 22kHz BW
Line In (includes A/D Conversion)
Analog performance specs measured at 44.1 kHz sample rate, 24-bit, card installed in computer
FREQUENCY RESPONSE: 20 - 20 kHz, ± 0.05 dB
DYNAMIC RANGE: 117 dB
CHANNEL CROSSTALK: THD+N: -111 dB (0.0003%) @ -1 dBFS 1 kHz signal, 22Hz - 22kHz BWGigital I/O Type
Four input channels / four outputs channels 24 bit AES/EBU or S/PDIF format jumper selectable, transformer coupled, XLR connectors.
Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 kHz
