Lynx Aurora(n) 8 TB3 AD-DA Converter 8 mic + 8 line in/out

Lynx Studio Aurora(n) AN08P08-TB3

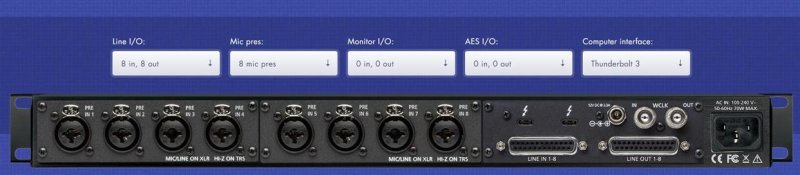

Aurora(n) PRE 1608 er konfigureret med 8 x mic/line/instrument inputs, foruden 8 x analog line inputs og ialt 16 analog outputs.
Tilsammen med den indbyggede Micro SD-recorder, gør det PRE 1608 til en komplet recording-enhed med 16 analog kanaler, helt uden tilslutning til andet udstyr.
Lynhurtig at bruge i live-situationer, eller som stand-alone i stationær opstilling. Indeholder fuld funktionalitet og samme høje specifikationer som resten af den ny Aurora(n) serie.


A new standard in analog to digital and digital to analog conversion. Aurora’s future-proof design is expanded in the Aurora(n). New enhancements and capabilities will be made available through firmware upgrades.
The Aurora(n) represents the culmination of years of research and development dedicated to significantly improving upon the well-regarded Lynx Aurora 8 and 16 models used by professionals around the world.

Aurora(n) significantly improves upon the spectacular performance and specifications the world has come to expect from the well-regarded Lynx Aurora line – each in a single rack-space.
Providing an even greater level of wide open uncompressed and unequalized audio for studios, mastering facilities, remote recording, broadcast, live performance and production installations, these Aurora(n) converters set a new standard in analog to digital and digital to analog conversion. Leveraging technology that was previously reserved for the Lynx Hilo combined with using the latest FPGA processors, the Aurora(n) achieves the pinnacle of transparency and low distortion and noise.

Also added to the line are two audiophile-grade headphone outs with independent volume control.
A 480 X 128 TFT LCD display provides immediate access to all levels and functions – also configurable for future functionality. A converter for now and for the future.
The PRE 1608 is currently available with connectivity configured to Thunderbolt or USB.


• Eight-channel microphone/line/HI-Z inputs for Aurora(n)
• On-board Aurora(n) A/D conversion directly coupled to preamp out
• Fully-differential, current-feedback preamplifier architecture
• Transformerless, transparent design
• Up to 68.6dB gain in 1dB increments
• Low noise (-129dBu EIN) microphone input
• Noise and distortion optimized at all gain settings
• Independent 48V phantom power, phase, high-pass filter, and pad for each channel
• Dedicated line level signal path provides performance identical to AIO8E
• Gold contact relays for distortion-free signal routing
• Seamless integration with Aurora(n)’s mixing and routing engine
• Available in 16-channel configuration with 8 mic/line/HI-Z and 8 line in- / outputs.
• LSlotTM expansion slot for Thunderbolt or USB connectivity.
• 16-channels of real-time recording and playback via on-board microSD card.

• 2 audiophile-grade headphone outputs

• 1 in/3 out Word clock I/O with Lynx exclusive second generation SynchroLock-2 sample clock technology

• Universal power supply
