Tascam Audio interface US-4x4HR USB 2.0 24bit / 192kHz

Tascam US-4x4HR USB 2.0 Audio interface

US-4x4 er en 4-input/4-output USB lyd/MIDI-interface perfekt til nybegyndere. Den tilbyder seriøse optagelsesegenskaber med 96 kHz/24-bit kvalitet med brugervenligheden i højsædet. Mic preamps er nøglen til sublim lydkvalitet og US-4x4 tilbyder Ultra-HDDA mic-preamps med 125 dBu EIN rating som betyder den har et meget lavt støjniveau. Pågrund af den brede dynamiske vidde kan interfacen både bruges sammen med dynamiske og kondensatormikrofoner. Dette gør enheden optimal til optagelse af vokal, piano og akustiske guitarer. US-4x4 kan benyttes sammen med DAW-applikationer, den kan også benyttes som en lyd-interface med iPads og andre populære iOS-enheder, ved brug af en Apple Lightning-to-USB kamera-adapter (en ekstra AC-adapter er nødvendig når US-4x4 benyttes sammen med iOS-enheder).

Advanced version of our popular US-4x4 with even better sound quality
Provides four audio inputs and four audio outputs as well as a MIDI interface to a Windows or Mac computer or iOS device
Audio resolution up to 192 kHz / 24 bit
USB Audio Compliance 2.0 for iOS connection
Hardware features

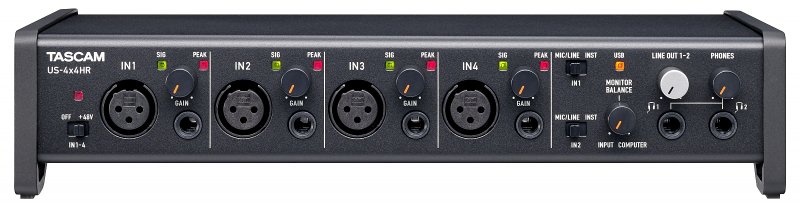

Four analogue mic/line inputs on individual XLR and TRS balanced connectors
High-quality Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: 128 dBu)
Wide input gain range of 56 dB, ideal for dynamic microphones
Switchable 48-Volt phantom power on XLR inputs
TRS inputs 1/2 can each be switched to instrument-level for direct recording of guitar or bass

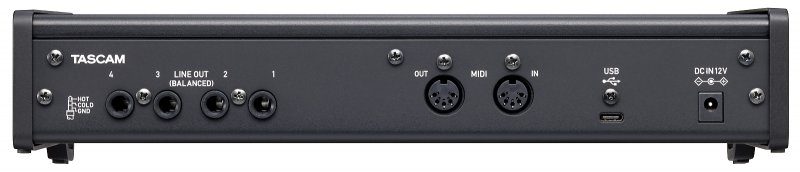

Four line outputs (balanced TRS)
Direct monitor option for low-latency monitoring
Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
Two headphones outputs delivering 45 mW per channel
Independent level controls for line and phones outputs
MIDI input/output
Standalone operation as a simple preamplifier for practice sessions and more

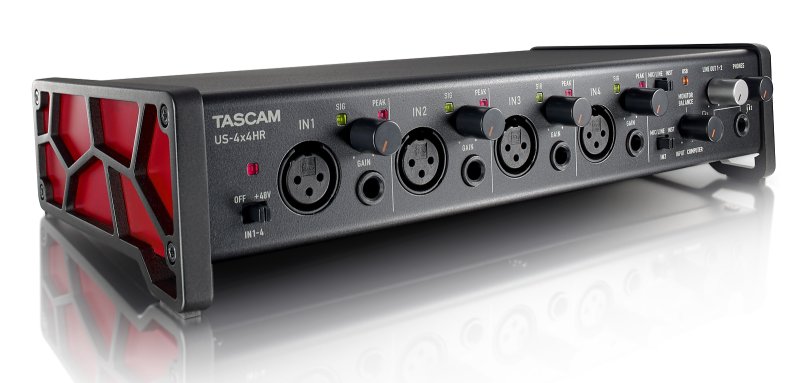

Rugged aluminum body
Angled industrial design for ease-of-use on a desktop
Software features

In-house developed driver for Windows devices ensures stable operation with low latency
The buffer size for Windows can be selcted up from 4 samples to facilitate a recording environment with ultra-low latency
Each input can be switched on/off individually
Input monitor mode can be selected between stereo and mono
You can select which signals are output at the line outputs
A loopback function allows two audio channels from the computer to be merged with the input signals and send this mix to the streaming or communication software
Input and computer signals can each be selected between stereo and mono
A slider lets you adjust the broadcast level
Switchable auto power save mode to reduce battery consumption on the laptop/tablet computer in mobile use
Automatic update function available for software, driver and firmware updates (you can install new updates with the press of a button)
Bundled with Cubase LE and Cubasis LE3 and Antares Auto-Tune Unlimited (free 3-month subscription)
Compatible with major DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand)
New function with firmware v1.10

The loopback function now allows all four input channels to be mixed with a stereo signal from the computer
Supported Operating Systems

Information

Type:	Ekstern lydkort

Størrelse

Vægt:	1,6 kg
Diameter:	160 mm
Bredde:	296 mm
Dybde:	160 mm
Højde:	65 mm
