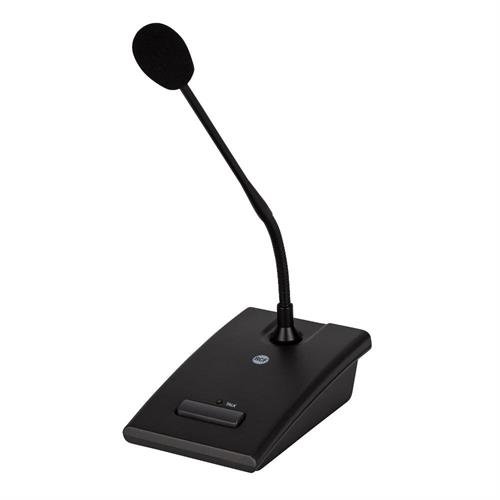

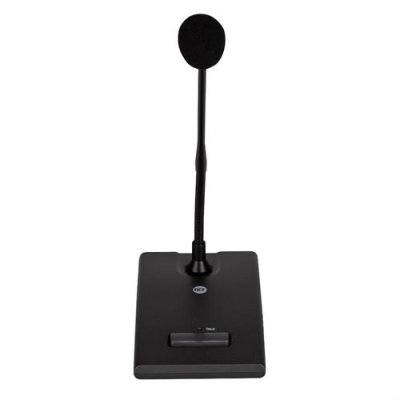

RCF bordmikrofon til ES- UP- og AM-serie "push to talk" 30 cm

RCF BM3001 kalde mikrofon

PAGING MICROPHONE

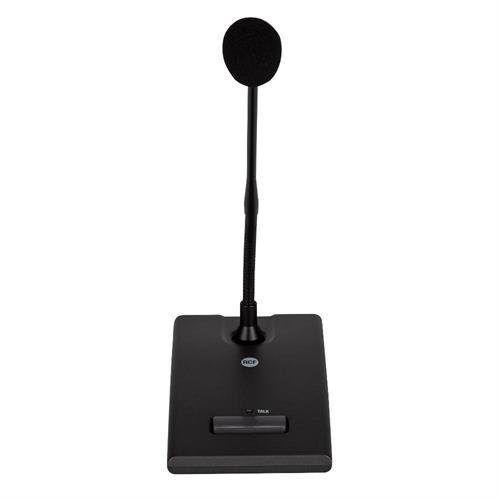

Plastic body with 300 mm gooseneck

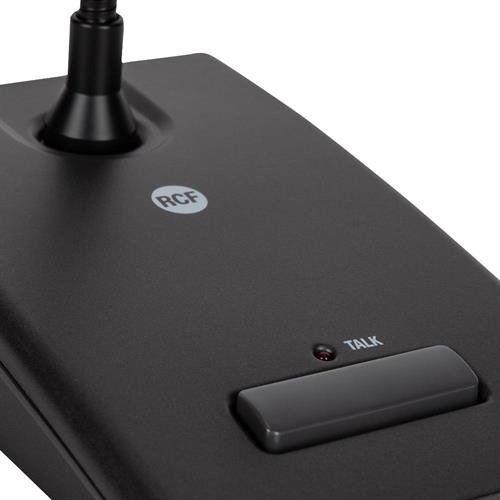

PTT button with LED
Power supplied by 'Phantom' (18 ÷ 48 V dc)
Ready for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081

Plastic body with 300 mm gooseneck
PTT button with LED
Power supplied by 'Phantom' (18 ÷ 48 V dc)
Ready for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081.
Chime activation on ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
Polyurethane foam wind screen
5 m connecting cable (with RJ 45 plugs) included
The BM 3001 Desktop Paging microphone allows to send announces toward a single zone and it is the ideal complement for the ES 3160 and ES 3323 receiver amplifier. It can also be used with other mixer-preamplifiers equipped Phantom Power (18 V - 48 V).

Directivity Cardioid
Sensitivity -65 dB
Frequency Response (-3dB) 50 Hz ÷ 18 kHz
Minimum load impedance (ohm) 470.00 ohm
Nominal output voltage @3.3 kohm (mV RMS) 100.00 mV RMS
Phantom power Yes
Phantom Power 18 V DC - 48 V DC

Console Type Paging
General call Yes
Number of zones 1
LED indicators Yes

Power consumption 2.80 mA

Connections Connectors RJ45

FUNCTIONALITIES
Smart PTT Yes

ACCESSORIES
Cable included Yes
Cable length (m) 5

Størrelse

Vægt:	0,73 kg
Bredde:	100 mm
Dybde:	159 mm
Højde:	48 mm

Forsendelsesinformation

Pakke Bredde:	329 mm
Pakke Dybde:	129 mm
Pakke højde:	144 mm
Pakke Vægt:	1,18 kg
