Mipro ENG modtager 6C = 668~692MHz

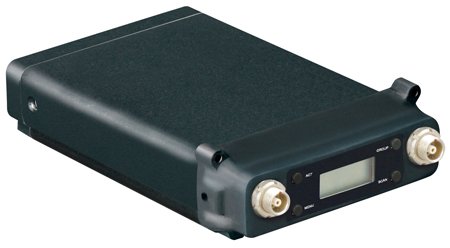

Mipro MR90B ENG modtager 6C = 668 - 692 MHz

Mipro MR-90B er en kompakt trådløs modtager designet til brug sammen med professionelle videokameraer. Modtageren passer sammen med Mipro ACT-transmittere og eliminerer behovet for mikrofonkabler under optagelser. MR-90B kan også installeres på en aktiv PA-højtaler via ACT-transmittere, eller en MT-92A trådløs interlinking transmitter fra en MA-909 trådløs mixer for lave de aktive højtalere om til et trådløst system.

Frequency Range: UHF 668~692MHz
Bandwidth: 24MHz
Oscillation Mode: PLL synthesized
Stability: ±0.005%
Preset Channels: 100 selectable channels
Receiving Mode: Dual antenna true diversity
Receiving Sensitivity: S/N>76dB at 6 muV input
Frequency Response: 80Hz~18KHz (with low frequency filter characteristics)
Image Rejection: >78dB
Spurious Rejection: >80dB
Intermodulation: >60dB
T.H.D.: Maximum Output Level: Balanced 2.2V rms open (THD=1%)
Squelch Level: Adjustable range: 6dBuV~40dBuV at 5dB steps
Maximum S/N Ratio: 107dBA
Display: LCD
Power: 6.5~12V DC
Current Consumption: Approx. 70mA
Dimensions: 83(W)×145(H)×35(D)mm / 3.3(W)x5.7(H)x1.4(D)"
Weight: Approx. 220g / 7.7oz
Matching Transmitters: ACT-7H / ACT-7T / ACT-70T
Operating Environment: -10~60C

Information

Frekvens:	600 til 700 MHz
Type:	Modtager
