Mipro in-ear monitor sender frekv 8U = 842-865MHz

Mipro In-Ear monitor transmitter frekv. 8U = 842- 865 MHz

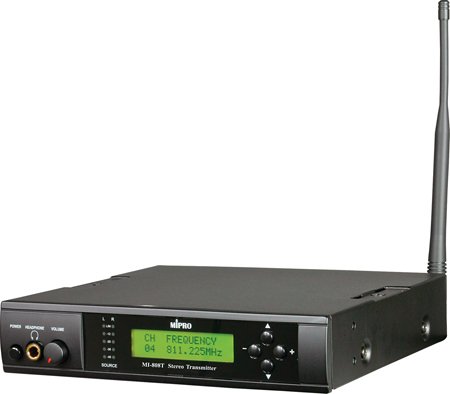

MI808T-8U er designet til sceneoptrædner og broadcasting. Båndbredden rækker over 24 MHz med 16 frekvenser og den avancerede dual-antenneteknologi eliminerer signal-dropout og forstærker signalstabiliteten. En høj S/N ratio og dynamisk vidde sikrer optimal lydkvalitet.

*Multi-function LCD panel.
*EIA standard 1/2U rack-mountable metal chassis.

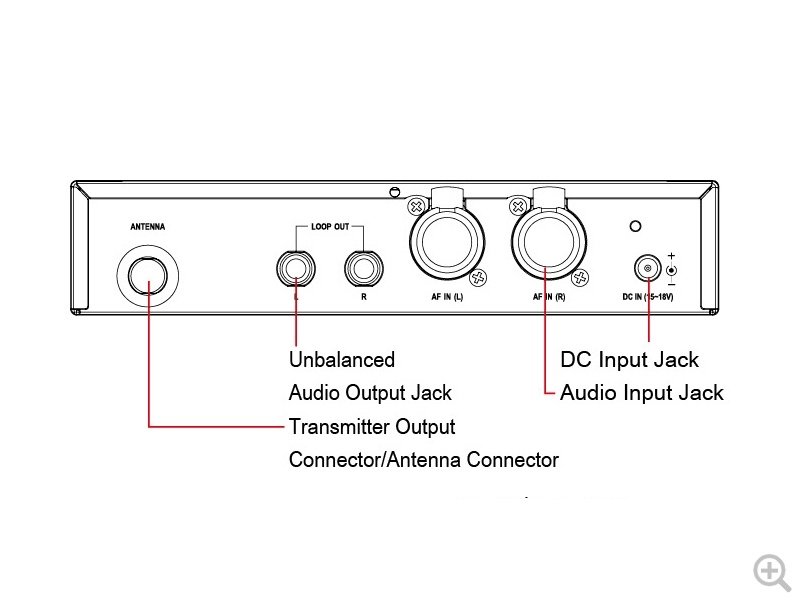

*Balanced and unbalanced combo jack.
*Mono and Stereo operating modes.
*UHF PLL Synthesized circuit.
*16 preset channels in 24 MHz band.
*Dynamic compander circuitry delivers S/N ratio greater than 90 dB.
*Built-in level limiter prevents distortion at the maximum input level.
*Monitoring headphone jack.
*Multi-language interpretation system application. Simple interface for easy operation.

Frequency Range: UHF 842.450~864.900MHz
Bandwidth: 24MHz
Oscillation Mode: PLL Synthesized
Channel Grid: 25kHz
Frequency Stability: ±0.005% (-10~60C)
Modulation Mode: FM stereo modulation
Output Power Low: Spurious Rejection: Frequency Response: 80Hz~15kHz
T.H.D.: Audio Input: line level×2, XLR/6.3mmØ phone combo socket
Audio Output: 6.3mmØ phone jack×2
Earphone Output: 6.3mmØ stereo phone jack with adjustable volume
Earphone Output Impedance: >=16Ohm
Amplifier Gain: N/A
Antenna Connector: TNC (50 Ohm impedance)
Dimensions: 210(W)×44(H)×206(D) mm / 8.3(W)×1.7(H)×8.1(D)"
Weight: Approx. 1.1kg / 2.4lbs

Information

Frekvens:	8U - 842~865 MHz
Type:	In-Ear sender
Model:	MI 808 analog

Størrelse

Vægt:	1,1
Bredde:	21
Dybde:	20,6
Højde:	4,4

Forsendelsesinformation

Pakke Bredde:	21
Pakke Dybde:	20,6
Pakke højde:	4,4
