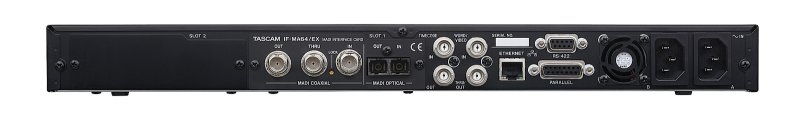

Tascam DA-6400DP digital 64 track audio recorder og player

Tascam DA-6400DP Digital 64 Track Audio Recorder og Player

DA-6400 er et universelt backup-recording-system, der kan modtage op til 64 lydspor fra Audio Workstations eller live-mixerkonsoler. Enheden kan bruges sammen med et væld af interface-boards som MADI, DANTE, DigiLink, AVB eller AES/EBU. DA-6400 benytter et specielt real-time driftssystem og pålidelige SSD-drives til opbevaring. En model med dobbeltstrømforsyning er også tilgængelig (DA-6400DP).

Recording media: SSD/HDD
File system: FAT32
File format: BWF format (wav extension)
Number of channels: 64 channels maximum (44.1/48kHz sampling frequency), 32 channels maximum (88.2/96kHz sampling frequency)
Quantization bit depth: 16/24-bit
Sampling frequencies: 44.1 kHz, 48 kHz, 88.2 kHz or 96 kHz
Clock references: INTERNAL, WORD IN, VIDEO IN, SLOT1 IN, SLOT2 IN
Timecode frames: 23.976F, 24F, 25F, 29.97DF, 29.97NDF, 30DF, 30NDF
Headphones output (PHONES): 6.3-mm standard stereo jack
Maximum output level: 45 mW + 45 mW or higher (THD+N 0.1 % or less, 32 ohm load)
USB port: USB 2.0 A type
Protocol: USB 2.0 Hi Speed (480 Mbps)
Timecode input (TIME CODE IN): BNC
Signal voltage amplitude: 0.55 Vpp
Input impedance: 10 kOhm
Format: SMPTE 12M-1999 compliant
Timecode output (TIME CODE OUT): BNC
Signal voltage amplitude: 2 Vpp
Output impedance: 600 ohm
Format: SMPTE 12M-1999 compliant
Word/video clock input (WORD/VIDEO IN): BNC
Signal voltage amplitude: 0.55 Vpp (WORD IN), 1 Vpp (VIDEO IN)
Input impedance: 75 ohm ±10% (termination resistance on)
Input frequency (WORD): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Input signal (VIDEO): 24/25/29.97/30-frame (NTSC/PAL black burst, HDTV tri-Level)
Word/video output/through (WORD/VIDEO THRU/OUT): BNC (throughput for video signal only)
Signal voltage amplitude: 5V TTL equivalent
Output frequency (WORD): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Network connector (ETHERNET): RJ45
Compatible standards: 100BASE-TX, 1000BASE-T
RS-422 connector: 9-pin D-sub (female, inch-standard)
PARALLEL connector: 15-pin D-sub (female, inch-standard)
Power requirements: AC 100-240 V, 50/60 Hz
Power consumption: 21 W (with IF-MA64/EX installed)
Dimensions (W x H x D): 483 x 45 x 305 mm
Weight: DA-6400: 3.9 kg, DA-6400DP: 4.0 kg (without I/O card or SSD/HDD case)
Operating temperature range: 040 °C

Størrelse

Vægt:	4 kg
Diameter:	305 mm
Bredde:	483 mm
Dybde:	305 mm
Højde:	45 mm
