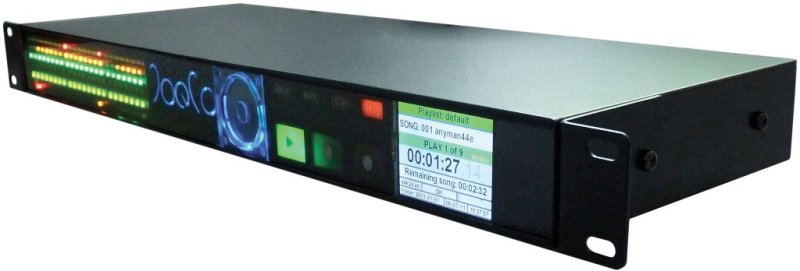

JoeCo Blackbox Player 64 spor, Madi

JoeCo BBP64 Madi multitrack player

Available for 24- and 64-channel BlackBox systems, Player functionality differs from standard BlackBox Recorder playback in that content for an entire show, exhibition or broadcast can be arranged into an easily editable playlist. Cues are preloaded for instant playback and, should the running order change, a playlist can be adjusted on the fly. It can also be looped to provide continuous playback.

Playback material can be created using any workstation that generates valid WAV or BWAV files. Mono, stereo and polywav files can be used. Audio is stored on an external USB2 hard drive or USB2 Flash drive. A simple file naming procedure ensures sample accurate synchronous playback of each audio file through its respective output. The show setlist is configured as a simple XML format playlist, with each song automatically pre-loading. Changes can also be made manually. Multiple playlists can be stored for different shows or performances.

The Player can be operated and controlled via footswitch, QWERTY keyboard, timecode, MIDI commands, or JoeCoRemote for iPad. Channels can be separately balanced, EQd and processed alongside other live audio to compensate for venue acoustics, or audience generated noise during performances. Foldback mixes incorporating Player audio can be created, and an additional mix also sent via the Player's headphone output.

To synchronize audio with visual media, the Player can be configured to start in sync with incoming timecode and audio clock. All standard timecode frame rates are supported. Like all BlackBox systems the Player contains a number of built-in safety features; for example a pair of Balanced Players can be configured for automated fail-over, making sure that the show goes on regardless.

The BlackBox Player system includes full BlackBox Recorder functionality. A simple menu selection turns the system into either a Recorder or a Player as required. Player software is also available as a separate upgrade for existing BlackBox Recorder owners.






* MADI-version has MADI in & out (SC optical & BNC (Coax)),
* 1 x 8ch balanced analogue in (TASCAM analogue format). (* reduced track counts at higher sample rates)

* DANTE-version has DANTE 1 x Dante RJ24 Gigabit Ethernet,
* 1 x 8ch balanced analogue in (TASCAM analogue format). (* reduced track counts at higher sample rates)

Storage medium External USB2 storage device
USB2 drive
Flash RAM drive (thumb drive) 32GB minimum, high performance)
SDHC card via USB2 converter (Class 10 minimum)
* Audio file format Broadcast WAV files: Accepts mono, stereo and polywav files

* Audio file naming convention:
sss-tt.songname-trackname.wav where:
sss is the song number (001-999)[determines which tracks play together as a Song]
-tt. is the track number (01-24)[determines which output each track is replayed through]
songname is the (optional) song name [free text up to 32 characters]
-trackname is the (optional) track name [free text up to 24 characters]
.wav is the file extension [mandatory]
Playlist format Simple XML file structure for easy playlist editing
Pre-load time Typically Control Instant replay controlled by:
Time code (LTC or MTC) Footswitch (GPI) QWERTY keyboard MIDI control
Real-time clock JoeCoRemote for iPad
Automatic pre-load of next song in playlist
MIDI Controls MIDI open loop connection
MIDI Start, Stop commands
MIDI Song Select: for preloading specific Songs
MIDI Program Change
MIDI Show Control
Audio clocks Selectable between:
Internal
AES/EBU or SPDIF clock
MADI in
Dante in
Word clock (available on BBP1A and BBP1D only)
Timecode / GPI " TRS jack - tip = unbal TC, Ring = GPI, sleeve = GND. All standard frame rates
supported
Auto fail-over Analogue fail-over automatically switches to synchronous secondary system in case of
replay problem (Balanced Player pairs).Uses 1 channel of playback
Physical Size: 19" rack mounting x 1U (435 x 44 x 170mm)
Weight: DC input: 9-12V dc (PSU supplied)
Power:
