Tascam MX-8A Digital matrix mixer
MX-8A er en 10 × 10 matrix mixer med otte mic / line indgange, otte linie udgange og stereo USB I / O kompatibel med software- eller cloud-baserede konferencer platforme. Intern kraftig DSP-mixer og routing plus flere lydbehandlingsfunktioner og er ideel til mange anvendelser, herunder mødelokaler, opholdsrum, retsværelser, restauranter, butikker osv.
DSP funktioner inkluderer en kompressor, fire-bånds parametrisk EQ og automatisk niveau kontrol for hver indgang. Udgangssektionen indeholder en 10-bånds EQ med høj / lavpasfilter, forsinkelse og en begrænserfunktion pr. Udgang, som alle kan justeres og gemmes i en af de 50 sceneminner sammen med mixer- / routingsindstillingerne. For at gøre lyden til meddelelser klarere, er der også mulighed for automatisk ducking og en omgivende støjkompensator.
MX-8A har naturligt lydende, højkvalitets Tascam mic-forstærkere, der gør brug af vores viden og erfaring fra mange års fremstilling af pro-lydudstyr. Indgangsniveauområdet er -77,5 dBu til +26 dBu, med tilsvarende indgangsstøj, der opnår mindre end -126 dB, og et signal-til-støjforhold på over 108 dB.
MX-8A kan styres via to forskellige softwareprogrammer til Mac, Windows, iOS og Android-enheder: Tascam MX Connect til konfiguration og Tascam EZ Connect til slutbrugere, som begge er nemme at bruge og inkluderet i enheden. Ved hjælp af Tascam MX Connect-installatører kan du hurtigt og nemt konfigurere MX-8A og derefter tildele passende enkle kontroller for adgang for brugere via Tascam EZ Connect.
Den valgfri RC-W vægmonterbare controller (under forberedelse) tilbyder et grafisk display og en push / turn multi-kontrol knap.
Hardware features
Eight balanced mic/line inputs and eight balanced line outpu Tekniske specifikationer
Analogue i/o: Unbalanced
(switchable -10dBu/+4dBu)
Digital i/o: AES/EBU
Sample rates
44.1kHz, 48kHz, 88.2kHz, 96kHz
i/o cables: Eksklusiv
Output: 24 mono channels plus internally “mixed" headphone output
Audio Connections:
Unbalanced Analogue
3 x 25way D-sub TASCAM analogue format
(Hot in, cold out for connection into insert points on console)
Balanced Analogue
3 x 25way D-sub TASCAM analogue format inputs;
3 x 25way D-sub TASCAM analogue format outputs;
AES/EBU: 3 x 25way D-sub YAMAHA digital format
Storage medium:
External USB2 storage device
USB2 drive
Flash RAM drive (thumb drive)
SDHC card via USB2 converter
Audio file format:
Standard mono Broadcast WAV files
Audio file naming convention:
sss-tt.songname-trackname.wav where:
sss is the song number (001-999)[determines which tracks play together as a Song]
-tt. is the track number (01-24)[determines which output each track is replayed through]
songname is the (optional) song name [free text up to 32 characters]
-trackname is the (optional) track name [free text up to 24 characters]
.wav is the file extension [mandatory]
Playlist format: Simple XML file structure for easy playlist editing
Pre-load time: Typically
Control:
Instant replay controlled by:
Timecode (LTC or MTC),
footswitch,
QWERTY keyboard,
MIDI control,
Real-time clock
Automatic pre-load of next song in playlist
MIDI Controls:
MIDI open loop connection
MIDI Start, Stop commands
MIDI Song Select: for preloading specific Songs
MIDI Program Change
MIDI Show Control
Audio clocks:
Selectable between:
Internal
AES/EBU or SPDIF clock
Word clock (available on BBP1A and BBP1D only)
Timecode: All standard frame rates supported
Auto fail-over: Analogue fail-over automatically switches to synchronous secondary system in case of a replay problem.
Physical:
Size: 19" rack mounting x 1U (435 x 44 x 170mm)
Weight: DC input: 9-12V dc (PSU supplied)
Power:
Beskrivelse

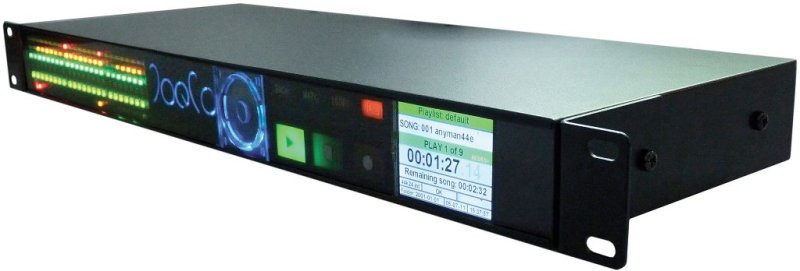

The BlackBox Player provides an innovative solution for live performance playback in a compact 1U rack-mounted package. Specifically designed to replay backing tracks or multiple surround stems for live shows and themed entertainment, it can replay up to 64 channels of high quality audio at up to 24bit/96kHz. The Player can be triggered using timecode, a footswitch or QWERTY keyboard, or it can be controlled via MIDI commands, giving the live engineer, installation sound designer, musical director or artist full control of the show at all times.
Based on the proven technology of the award-winning BlackBox Recorder, the BlackBox Player provides an innovative solution to live performance playback in a compact 1U rack-mounted package. Player capability is now available for JoeCo’s 24- and 64-channel BlackBox systems enabling up to 64 channels of synchronous audio to be replayed in up to 24 Bit / 96kHz quality, without a computer. Multi-channel audio playback is important both for surround sound applications and because it allows the live engineer to compensate for the acoustics of the venue, or audience generated noise during the performance.
Playback material can be loaded from any Digital Audio Workstation capable of creating files in Broadcast WAV format. In addition to standard mono BWAV files, the Player also supports the replay of polyphonic wav files, from multiple stereo files up to 24 or even 64 channel PolyWAV files. Mono, stereo and multichannel files can even be used together in the same song massively enhancing the system’s flexibility. The audio files can be stored on a standard USB2 drive, or Flash RAM drive. A simple naming procedure ensures that the correct file is replayed through each output.
Set lists can be configured into simple XML format playlist files. Playlists automatically cue up the next song ready for instantaneous replay and multiple playlists can be stored ready for any quick changes or alternative show formats.
Separate foldback mixes can be configured using normal facilities on the console. An additional mix can be sent via the headphone output for the musical director. For playback applications requiring time code synchronisation, the BlackBox Player can be configured to an incoming source of digital clock, or optionally word clock. The implementation of a "Chase" mode enables the unit to commence playback in sync when it receives incoming time code. This option can either be controlled from the front panel or via extended SONY 9-pin support. The extended 9-pin commands also allow the user to rehearse shows that are normally locked to time code via remote control and are compatible with most edit suites and show controllers. Time code can be shown on the main time display in playback mode.
Integrated safety features ensure that the BlackBox Player can meet the all-important "show must go on" criteria. These include a unique automated fail-over mechanism that enables the BlackBox Player to automatically switch to a synchronous secondary system using its internal analogue relays in the event of a failure. (This would normally require a costly external switching matrix).
Who is the BlackBox Player designed for?
solo artists and vocal groups using pre-recorded backing tracks
bands requiring additional backing tracks (strings, horns, etc.)
theatres, theme parks and cruise ships
permanent installations requiring reliable playback, such as museums, galleries and houses of worship
broadcast applications for timed multi-language or multi-station play-out
playback applications that require timecode synchronisation
Tekniske specifikationer
Analogue i/o: Unbalanced
(switchable -10dBu/+4dBu)
Digital i/o: AES/EBU
Sample rates
44.1kHz, 48kHz, 88.2kHz, 96kHz
i/o cables: Eksklusiv
Output: 24 mono channels plus internally “mixed" headphone output
Audio Connections:
Unbalanced Analogue
3 x 25way D-sub TASCAM analogue format
(Hot in, cold out for connection into insert points on console)
Balanced Analogue
3 x 25way D-sub TASCAM analogue format inputs;
3 x 25way D-sub TASCAM analogue format outputs;
AES/EBU: 3 x 25way D-sub YAMAHA digital format
Storage medium:
External USB2 storage device
USB2 drive
Flash RAM drive (thumb drive)
SDHC card via USB2 converter
Audio file format:
Standard mono Broadcast WAV files
Audio file naming convention:
sss-tt.songname-trackname.wav where:
sss is the song number (001-999)[determines which tracks play together as a Song]
-tt. is the track number (01-24)[determines which output each track is replayed through]
songname is the (optional) song name [free text up to 32 characters]
-trackname is the (optional) track name [free text up to 24 characters]
.wav is the file extension [mandatory]
Playlist format: Simple XML file structure for easy playlist editing
Pre-load time: Typically
Control:
Instant replay controlled by:
Timecode (LTC or MTC),
footswitch,
QWERTY keyboard,
MIDI control,
Real-time clock
Automatic pre-load of next song in playlist
MIDI Controls:
MIDI open loop connection
MIDI Start, Stop commands
MIDI Song Select: for preloading specific Songs
MIDI Program Change
MIDI Show Control
Audio clocks:
Selectable between:
Internal
AES/EBU or SPDIF clock
Word clock (available on BBP1A and BBP1D only)
Timecode: All standard frame rates supported
Auto fail-over: Analogue fail-over automatically switches to synchronous secondary system in case of a replay problem.
Physical:
Size: 19" rack mounting x 1U (435 x 44 x 170mm)
Weight: DC input: 9-12V dc (PSU supplied)
Power:
Beskrivelse
The BlackBox Player provides an innovative solution for live performance playback in a compact 1U rack-mounted package. Specifically designed to replay backing tracks or multiple surround stems for live shows and themed entertainment, it can replay up to 64 channels of high quality audio at up to 24bit/96kHz. The Player can be triggered using timecode, a footswitch or QWERTY keyboard, or it can be controlled via MIDI commands, giving the live engineer, installation sound designer, musical director or artist full control of the show at all times.
Based on the proven technology of the award-winning BlackBox Recorder, the BlackBox Player provides an innovative solution to live performance playback in a compact 1U rack-mounted package. Player capability is now available for JoeCo’s 24- and 64-channel BlackBox systems enabling up to 64 channels of synchronous audio to be replayed in up to 24 Bit / 96kHz quality, without a computer. Multi-channel audio playback is important both for surround sound applications and because it allows the live engineer to compensate for the acoustics of the venue, or audience generated noise during the performance.
Playback material can be loaded from any Digital Audio Workstation capable of creating files in Broadcast WAV format. In addition to standard mono BWAV files, the Player also supports the replay of polyphonic wav files, from multiple stereo files up to 24 or even 64 channel PolyWAV files. Mono, stereo and multichannel files can even be used together in the same song massively enhancing the system’s flexibility. The audio files can be stored on a standard USB2 drive, or Flash RAM drive. A simple naming procedure ensures that the correct file is replayed through each output.
Set lists can be configured into simple XML format playlist files. Playlists automatically cue up the next song ready for instantaneous replay and multiple playlists can be stored ready for any quick changes or alternative show formats.
Separate foldback mixes can be configured using normal facilities on the console. An additional mix can be sent via the headphone output for the musical director. For playback applications requiring time code synchronisation, the BlackBox Player can be configured to an incoming source of digital clock, or optionally word clock. The implementation of a "Chase" mode enables the unit to commence playback in sync when it receives incoming time code. This option can either be controlled from the front panel or via extended SONY 9-pin support. The extended 9-pin commands also allow the user to rehearse shows that are normally locked to time code via remote control and are compatible with most edit suites and show controllers. Time code can be shown on the main time display in playback mode.
Integrated safety features ensure that the BlackBox Player can meet the all-important "show must go on" criteria. These include a unique automated fail-over mechanism that enables the BlackBox Player to automatically switch to a synchronous secondary system using its internal analogue relays in the event of a failure. (This would normally require a costly external switching matrix).
Who is the BlackBox Player designed for?
solo artists and vocal groups using pre-recorded backing tracks
bands requiring additional backing tracks (strings, horns, etc.)
theatres, theme parks and cruise ships
permanent installations requiring reliable playback, such as museums, galleries and houses of worship
broadcast applications for timed multi-language or multi-station play-out
playback applications that require timecode synchronisation
BBP1A with Lightpipe digital i/o
Designed for use with mixing consoles that support Lightpipe (TOSlink). Unbalanced analogue i/o functionality also available for situations where the Lightpipe interface is not suitable.
Cabling not supplied, but available to order.
BBP1B with Balanced analogue i/o
Designed for use with mixing consoles that have balanced insert points or balanced group outputs.
Cabling not supplied, but available to order.
BBP1D with AES/EBU digital i/o
Designed for use with digital mixing consoles that have AES/EBU inputs and outputs
Unbalanced analogue functionality also available (switchable)
Cabling not supplied, but available to order.
BBP1U with Unbalanced analogue i/o
Designed for use with standard analogue mixing consoles
Cabling included: 3 x 1/4" multicore looms - TASCAM analogue format - for connection into insert points on console
BBP1A with Lightpipe digital i/o
Designed for use with mixing consoles that support Lightpipe (TOSlink). Unbalanced analogue i/o functionality also available for situations where the Lightpipe interface is not suitable.
Cabling not supplied, but available to order.
BBP1B with Balanced analogue i/o
Designed for use with mixing consoles that have balanced insert points or balanced group outputs.
Cabling not supplied, but available to order.
BBP1D with AES/EBU digital i/o
Designed for use with digital mixing consoles that have AES/EBU inputs and outputs
Unbalanced analogue functionality also available (switchable)
Cabling not supplied, but available to order.
BBP1U with Unbalanced analogue i/o
Designed for use with standard analogue mixing consoles
Cabling included: 3 x 1/4" multicore looms - TASCAM analogue format - for connection into insert points on console
ts
Euroblock connectors - ideal for permanent installation
USB audio interface mode allows to record audio or play background music with a computer
Controllable via an Ethernet network (using the Tascam MX Connect computer application or the Tascam Mixer Protocol)
RS-485 (using a dedicated remote controller, planned)
RS-232C
Status indicator on front panel
USB connector on front panel for easy connection of a computer, tablet or smartphone (is also used for firmware updates)
High-quality internal power supply (no AC adapter)
19 inch rackmount size (1U)
Software features
Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via software)
Powerful DSP mixer (controllable via software) Input features: phantom power on/off, phase, sensitivity, trim, automatic level control, 4-band equalizer, mute, fader
Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing
Outputs features: 10-band equalizer, limiter, delay, mute, fader, phase
Up to 50 scene presets can be saved
Timer event function allows presets to be switched at specific times (planned for a future update)
Two types of control software available (compatible with Windows/Mac/iOS/Android devices): Tascam MX Connect for system integrators offers full access to virtually all settings
Tascam EZ Connect for end-users is a simple app for only the most necessary settings
USB audio interface features
Two audio inputs and two audio outputs when connected to a Windows/Mac computer or iOS/Android device
Allows audio to be recorded / played back via Windows Media Player, iTunes or DAW applications
Specifications
General
Audio formats 44.1/48 kHz, 16/24 bit
Inputs and outputs
USB port 4-pin USB B-type
Transfer rate USB 2.0 High Speed (480 Mbit/s)
Analogue inputs (ANALOG IN) Balanced Euroblock connectors, 3.81 mm pitch
Minimum input level -70 dBu
Maximum input level +26 dBu
Input impedance greater than or equal to 2.2 kOhm
Analogue outputs (ANALOG OUT) Balanced Euroblock connectors, 3.81 mm pitch
Nominal output level +4 dBu (Ref(D) does not equal -9 dBFS)
+6 dBu (Ref(D) equals -9 dBFS)
Maximum output level (selectable) +15 dBu (Ref(D): -9 dBFS)
+18 dBu (Ref(D): -14 dBFS)
+20 dBu (Ref(D): -16 dBFS)
+22 dBu (Ref(D): -18 dBFS)
+24 dBu (Ref(D): -20 dBFS)
Output impedance less than or equal to 200 Ohm
RS-232C connector D-sub 9-pin (female, inch-standard)
RS-485 connector RJ-45 connector
Recommended cable STP cable, Cat 5e or faster
Network connector (ETHERNET) RJ-45 connector
Transmission protocol TCP/IP
Ethernet standard 100BASE-TX
Recommended cable STP cable, Cat 5e or faster
Audio performance
Mic amp EIN (equivalent input noise) less than or equal to -126 dBu
(Mic in to Line out, input impedance: 150 Ohm, 22 kHz LPF, A-weighted, JEITA)
Frequency response 20 Hz - 20 kHz, ±0.5 dB
(+24 dBu input, Line in to Line out, GAIN at min., JEITA)
Distortion (THD+N) (+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)
S/N ratio greater than or equal to 106 dB
(+24 dBu input, Line in to Line out, GAIN at min., JEITA)
Crosstalk greater than or equal to 107 dB
(+24 dBu input, 1 kHz, Line in to Line out, GAIN at min., JEITA)
Dynamic range greater than or equal to 105 dB
(Line in to Line out, GAIN at min., JEITA)
Note: JEITA indicates compliance with JEITA CP-2150
Power supply and other specifications
Voltage requirements AC 100-240 V, 50/60 Hz
Power consumption 21 W
Dimensions 483 mm × 45 mm × 304 mm
(W × H × D, including protrusions)
Weight 3 kg
Permissible operating temperature range 0-40 °C
