JoeCo Blackbox Recorder 24 spor Balanceret in/out

BBR1-B JoeCo Blackbox Recorder Balanceret in/out

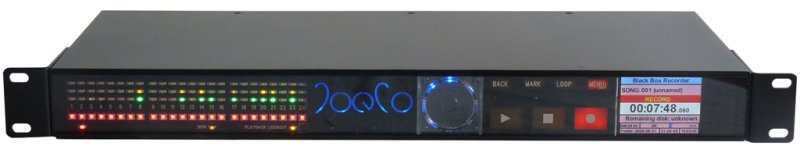

he 24 channel BLACKBOX BBR1B multi-channel recorder is a well-established and respected icon of the professional audio industry, with balanced I/O to ensure hassle-free but absolutely dependable multi-track audio recording direct from a mixing console or in a location recording environment.

Built for ease of use inclusion in rigs where reliability is paramount, the BBR1B multi-channel recorder offers genuine set it and forget it functionality for applications when time is sparse but standards must remain high.
For additional peace of mind in live scenarios, the unit loops the inputs directly to the outputs via relays when in record or stop mode, so that even a power failure cannot affect the audio through the PA .

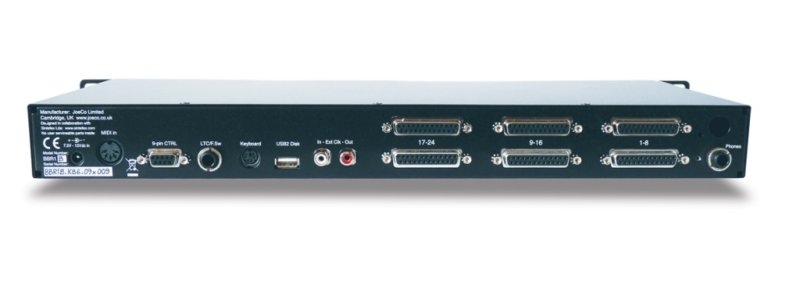

The units three lower 25-way female D-type connectors are used as balanced inputs while the three upper 25-way female connectors are used as balanced outputs.

All BLACKBOX Recorders are designed and built to exacting standards with rugged construction and a suite of unique multi-track audio capture features.
The choice of professional users, the BBR1B multi-track recorder is the multi-track recording solution which the professional audio industry chooses and trusts.
For more information, see below to download the BLACKBOX Recorder brochure, for full information on the entire


Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit depths: 16bit; 24bit
Disk interface: USB2
Format: FAT32
File type: Broadcast WAV (BWAV)
Media: USB2 hard disk (7200rpm recommended),
USB2 flash drive - 200x minimum (except for
MADI and DANTE systems which have more
demanding data rates), SHDC (Class 10 with
suitable adapter except MADI and DANTE)
Monitoring: 1 x 1/4" TRS jack socket,
headphone mix/solo
Physical: 19" rack mounted 1U
Dimensions: (425mm x 150mm x 44mm)
Weight:
Control and Synchronisation
MIDI: 1 x 5-pin DIN (open loop) – MIDI time
code (MTC) and MIDI machine control (MMC)
protocol
LTC: 1 x 1/4" TRS jack socket:
Frame rates supported: 30fps, 29.97drop fps,
29.97non-drop fps, 25fps, 24fps, 23.98fps
Machine control: 1 x 9-pin D, SONY PII protocol
Audio clock synchronisation: 2 x RCA sockets
AES3 / SPDIF Format, also used for
communications to slave units
Footswitch: momentary switch on ring of LTC
TRS socket
Keyboard: 1 x mini DIN PS2 connector,
Standard 102 key
Power: 9v - 16V dc ( PSU supplied
