Beskrivelse

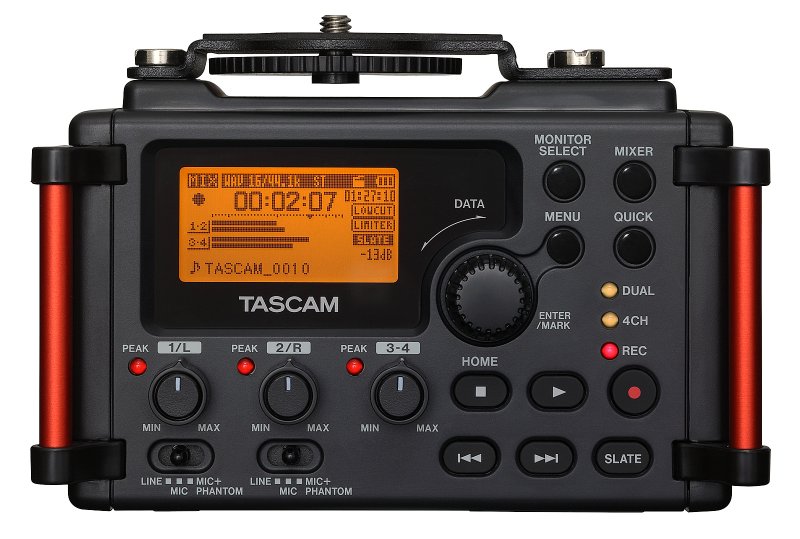

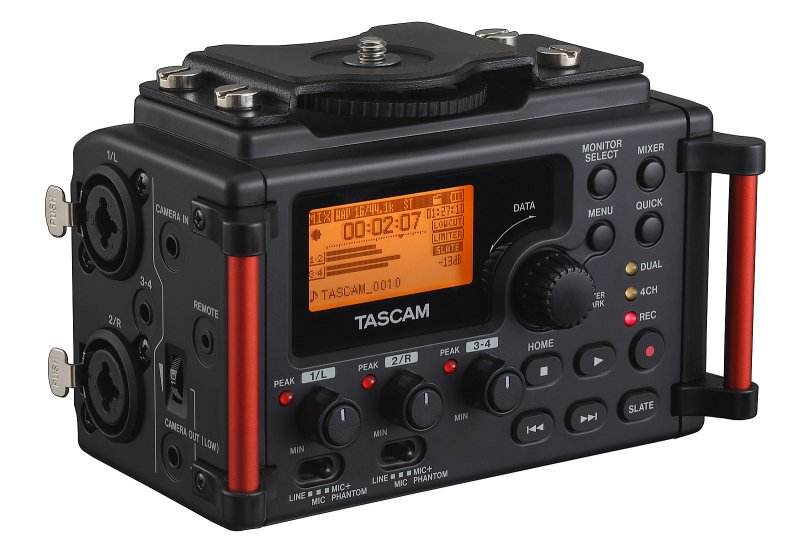

Tascam DR-60Dmk2 Audio recorder til DSLR
DR-60DMK2 er en kompakt, 4-spors lydoptager til brug med en digital single-lens reflex (DSLR), eller et digital single-lens mirrorless (DSLM) kamera som en del af et videosystem. Den kan monteres direkte på et kamera og tilbyder et væld af lyd-inputs og outputs som tillader optagelse af højopløst lydmateriale parallelt med, men separat fra kameraet og dets video-data. Enheden tilbyder Tascam original HDDA mikrofon-preamps som er kendt for deres høje S/N-ratio, lave input-støj og lave forvrængning. Optagelser kan laves ved 44.1/48/96 kHz, 16/24-bit i WAV eller BWF-format. DR-60DMK2 kan optage fra fire kanaler samtidigt som kan mixes ned til et stereo-signal. Optagelses-niveauerne kan justeres uafhængigt til inputs 1, 2 og 3-4 og Dual Recording-funktionen lader to filer blive optaget parallelt på forskellige niveauer.
Compact, high-quality audio recorder designed to be used in combination with a DSLR camera
Uses an SD/SDHC card as recording medium
High-quality recording inputs through Tascam original High Definition Discrete Architecture (HDDA) microphone preamps
In addition to ordinary stereo recording, simultaneous recording of up to four channels is possible
Four channels can be mixed down to a stereo signal
Recording levels can be adjusted independently for inputs 1, 2 and 34
Dual recording function allows two files to be recorded simultaneously at different levels
Recording at 44.1/48/96 kHz, 16/24-bit, linear PCM (WAV format)
Broadcast Wave Format (BWF) supported as WAV recording format
New, smooth XLR/TRS combo jacks
XLR mic/line inputs can provide phantom power (+24V/+48V)
TRS mic/line inputs support +24 dBu input when used as line inputs
"HI+PLUS" setting allows a maximum input gain of 64 dB
Stereo mini jack input supports mics that require plug-in power, allowing the input of video mics and other high-output mics (+10 dBV maximum input level)
Low-cut filter conveniently reduces low-frequency noise (40 Hz, 80 Hz, 120 Hz)
High-quality audio can be output to a DSLR camera for recording
Two camera outputs with different levels allow audio signal to be sent to a line or mic input of the camera
Camera input enables convenient monitoring of audio from a DSLR camera
Selectable mid-side decoding for use with MS microphone setups
Slate tone functions (automatic/manual) to simplify synchronization with video files when editing
Pre-recording function allows the unit to record the two seconds of sound before recording is activated
Auto recording function to start start and stop recording by input level
A new file can be created during recording (manually or by file size)
Self-timer function to start recording after a set period of time
Jump-back function allows the last several seconds of the currently played file to be replayed again by simply pressing a button
Selectable delay to eliminate time lags caused by differences in the distances of two input sources
QUICK button allows easy access to various functions
Divide function allows files to be split where desired
Mark function convenient for moving to specific locations
Equalizers for playback, and level alignment function to enhance the perceived overall sound pressure
File name format can be set to use a user-defined word or the date
Resume function to memorize the playback position before the unit is turned off
Line output and headphones output with individual level controls (3.5-mm jack)
128 x 64 pixel LC display with backlight
USB 2.0 port

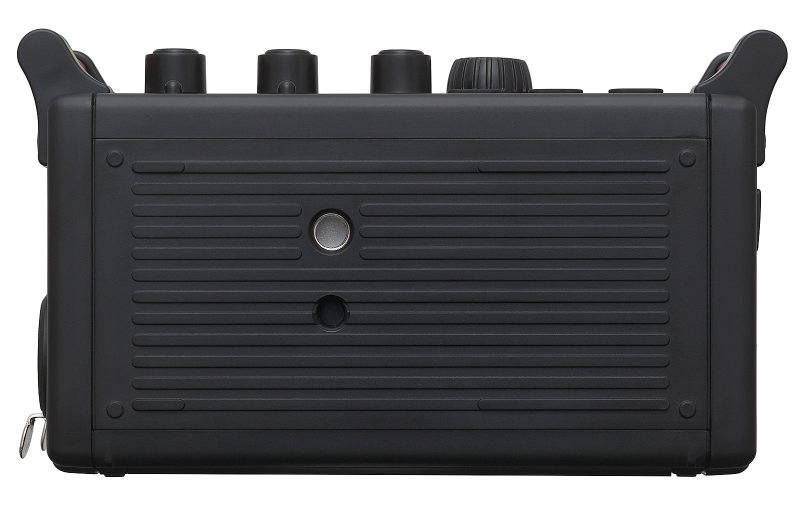

Stand adapter (¼ inch) on bottom side to attach the unit to a tripod
DSLR bracket for easy camera attachment and removal with a coin
Dedicated remote control jack (for use with RC-10 and RC-3F (sold separately))
Hold switch to prevent accidental operation
Handles on the front left and right sides protect the screen and can be used to attach a shoulder belt
Operates on four AA batteries, an optional AC adaptor (Tascam PS-P520U), optional external battery pack (Tascam BP-6AA) or USB bus power
Power source switches automatically from external to internal when necessary (with pop-up message on display)
General
Recording media
SD card (64 MB 2 GB)
SDHC card (432 GB)
Audio file compatibility
WAV: 44.1/48/96 kHz, 16/24-bit
BWF (Broadcast Wave Format): 44.1/48/96kHz, 16/24-bit
Number of channels
4 channels (stereo x 2)
Analogue audio inputs and outputs

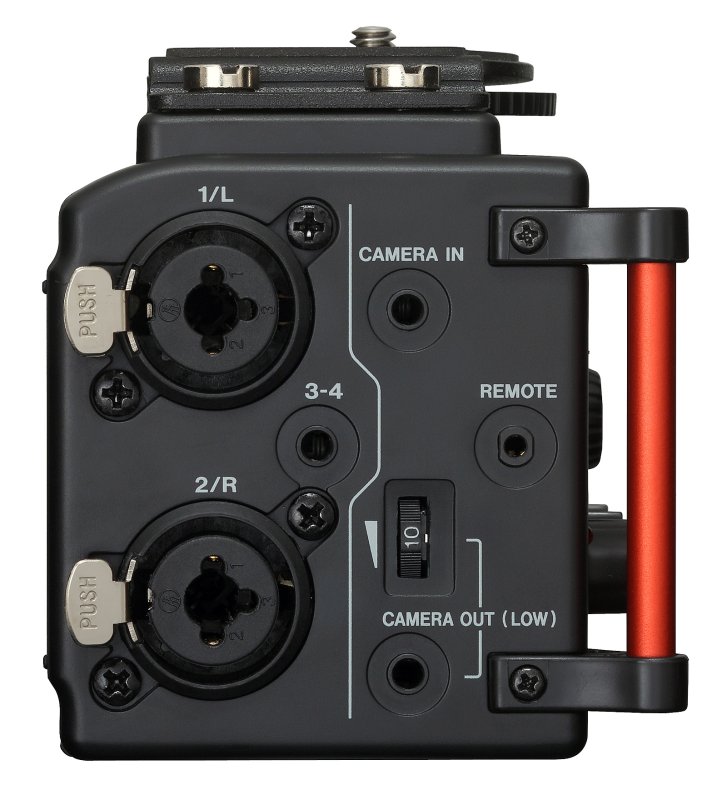

Mic/Line input 1/L, 2/R (switchable phantom power)
XLR-3-31
6.3-mm standard TRS Jack
Input switch set to MIC or MIC+PHANTOM
Input impedance
2 k
Phantom Power
48 V ±4 V (10 mA/channel) or
24 V ±4 V (10 mA/channel)
Maximum input level
0 dBu
Minimum input level
72 dBu
Mic input gain (input level knob at maximum)
LOW: +11 dB
MID: +36 dB
HIGH: +52 dB
HIGH+PLUS: +64 dB
Input switch set to LINE
Input impedance
10 k or higher
Nominal input level
+4 dBu
Maximum input level
+24 dBu
Mic/Line input 3-4 (supports plug-in power)
3.5-mm stereo mini jack
Input impedance
10 k
Maximum input level
+10 dBV
Minimum input level
50 dBV
Mic input gain (input level knob at maximum)
LOW: +3 dB
HIGH: +26 dB
HIGH+PLUS: +38 dB
CAMERA IN jack
3.5-mm stereo mini jack
Input impedance
10 k
Nominal input level
10 dBV
Maximum input level
+6 dBV
CAMERA OUT (LOW) jack
3.5-mm stereo mini jack
Output impedance
200
Nominal output level
50 dBV
Maximum output level
30 dBV

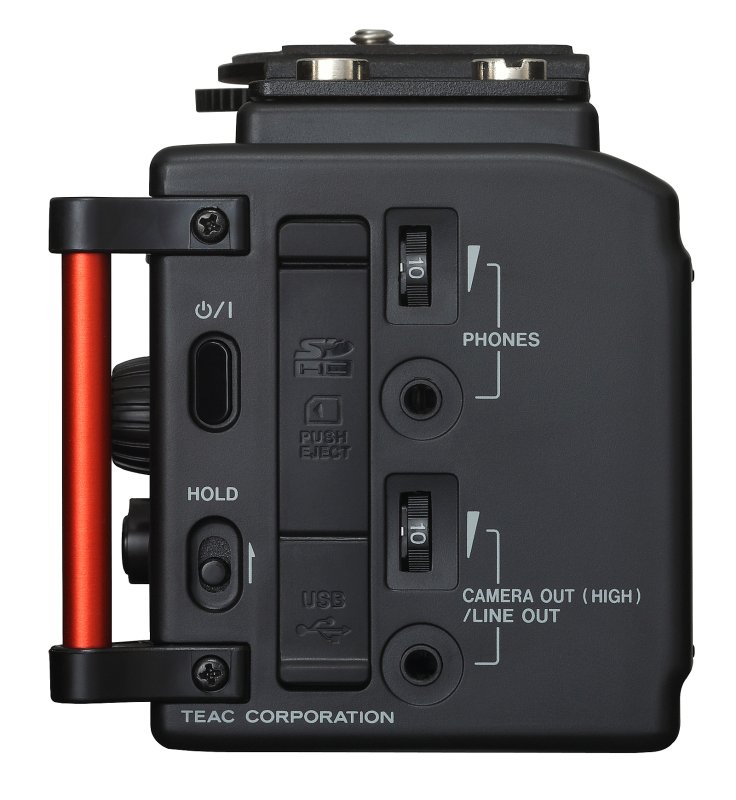

Headphones output
3.5-mm stereo mini jack
Maximum output power
50 mW + 50 mW
CAMERA OUT (HIGH)/LINE OUT jack
3.5-mm stereo mini jack
Output impedance
200
Nominal output level
10 dBV
Maximum output level
+10 dBV
Other inputs and outputs
USB
USB Mini-B Type
Format
USB 2.0 HIGH SPEED mass storage class
REMOTE jack
2.5-mm TRS jack
Audio performance
Frequency response
20 Hz 20 kHz, +0.5/2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA)
20 Hz 40 kHz, +0.5/3 dB (LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA)
Distortion
0.02% or less (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
S/N ratio
92 dB or more (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA)
Equivalent input noise
120 dBu or less
Note for JEITA
Conforming to JEITA CP-2150
Power supply and other specifications
Power supply
Four AA batteries (Alkaline or Ni-MH)
USB bus power supplied from a computer
AC adaptor (TASCAM PS-P520U, sold separately)
External battery pack (TASCAM BP-6AA, sold separately)
Power consumption
5.4 W (maximum)
Dimensions (W × H × D)
133 mm × 93 mm × 78 mm (with the top adapter attached)
Weight
510 g (without batteries)
Operating temperature range
040 °C
